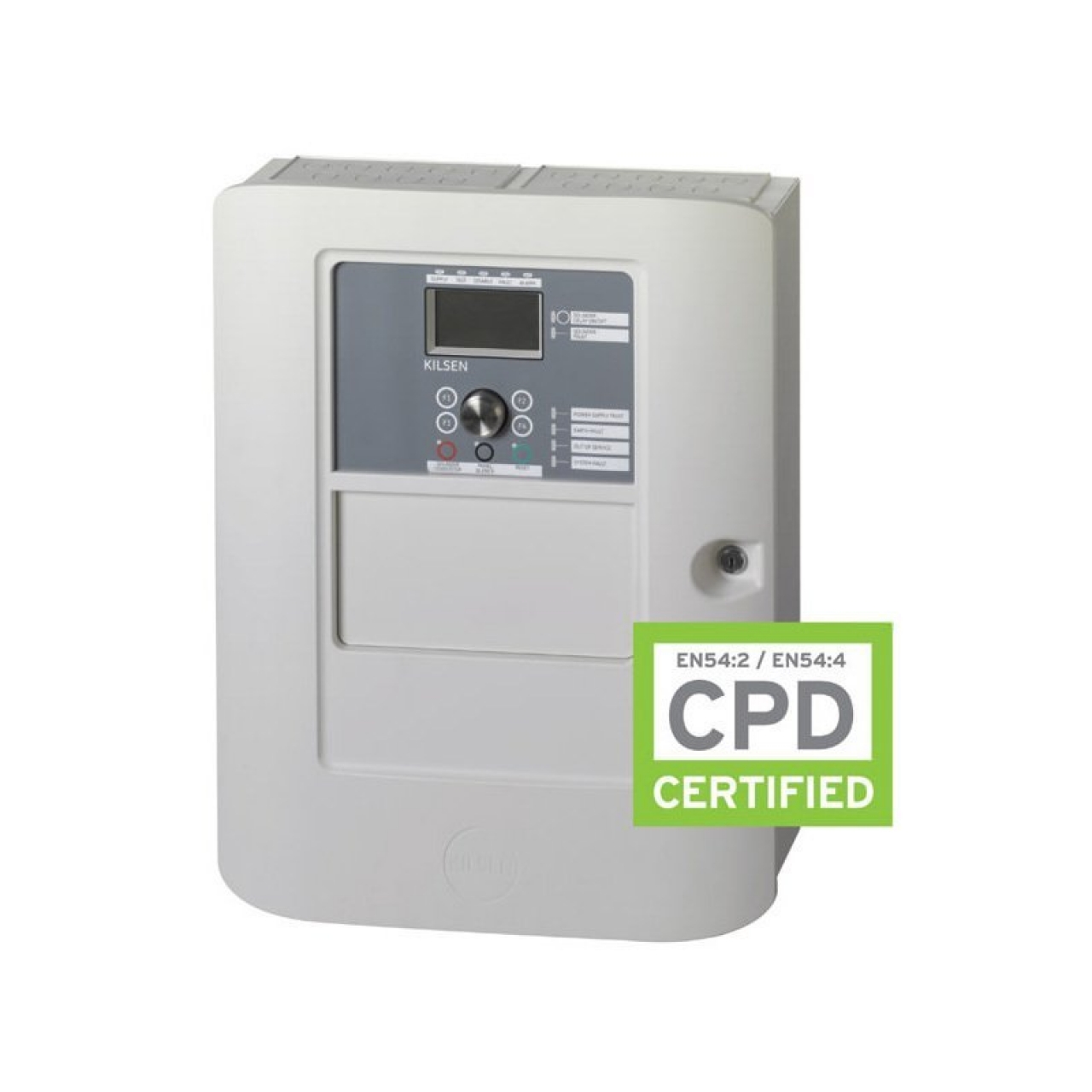

Kilsen Akıllı Adreslenebilir Yangın Alarm Kontrol Paneli KFP-AF2-19

Akıllı Adreslenebilir Yangın Alarm Kontrol Paneli

2 Looplu (Türkçe)

Panel başına 256 bölge

Her loop’a 125 dedektör+125 modül bağlayabilme

Alarm ve arıza durumları için 40 bölge göstergesi

LCD grafik ekran

3 Usb portu

3 RS232 portu

Akıllı programlama

8 programlanabilir çıkış

Kolay kullanıcı arayüzü

Specifications

Mains supply

Voltage 230 / 110 VAC (+10% / -15%)

Frequency 50 / 60 Hz (±5%)

Current Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A

Fuse rating 2 / 4 A

Cable type 3 x 1.5 mm² (live, neutral, earth)

Batteries Max. 2 x 12V/7.2Ah (use supplied cables)

Outputs

Programmable supervised 4, 750mA / 19.5-28VDC (24VDC nominal)

General Fire + Fault supervised 2, 350mA / 19.5-28VDC  (24 VDC nominal)

General Fire + Fault relay 2

Aux 1 resetable, 500mA / 19.5-28VDC (24VDC nominal)

Cable type Recommended 2 core 1.5 mm² twisted pair

End of Line resistor 15kohm

Inputs

Programmable 2

Cable type Recommended 2 core 1.5 mm² twisted pair

End of Line resistor 15kohm

Maximum Load 150 mA

Loops

Outputs 2, 250 mA / 29VDC (29VDC to 36VDC )

Cable length 56ohm / 1microF max. 2 km

Cable type Recommended 2 core 1.5 mm² twisted pair

Environmental conditions

Storage temperature -10°C to +50 °C

Operating temperature -5°C to +40 °C

Relative humidity max. 95 %  (non-condencing)

Mechanical

Size (W x D x H) 410 x 162 x 298 mm

Weight 5.2 kg  (without batteries)

Color RAL9010

Cable entries (Top / Bottom / Back) 9 (20mm) / 2 (20mm) / 2 removable plates

IP rating IP30: for indoor use only
