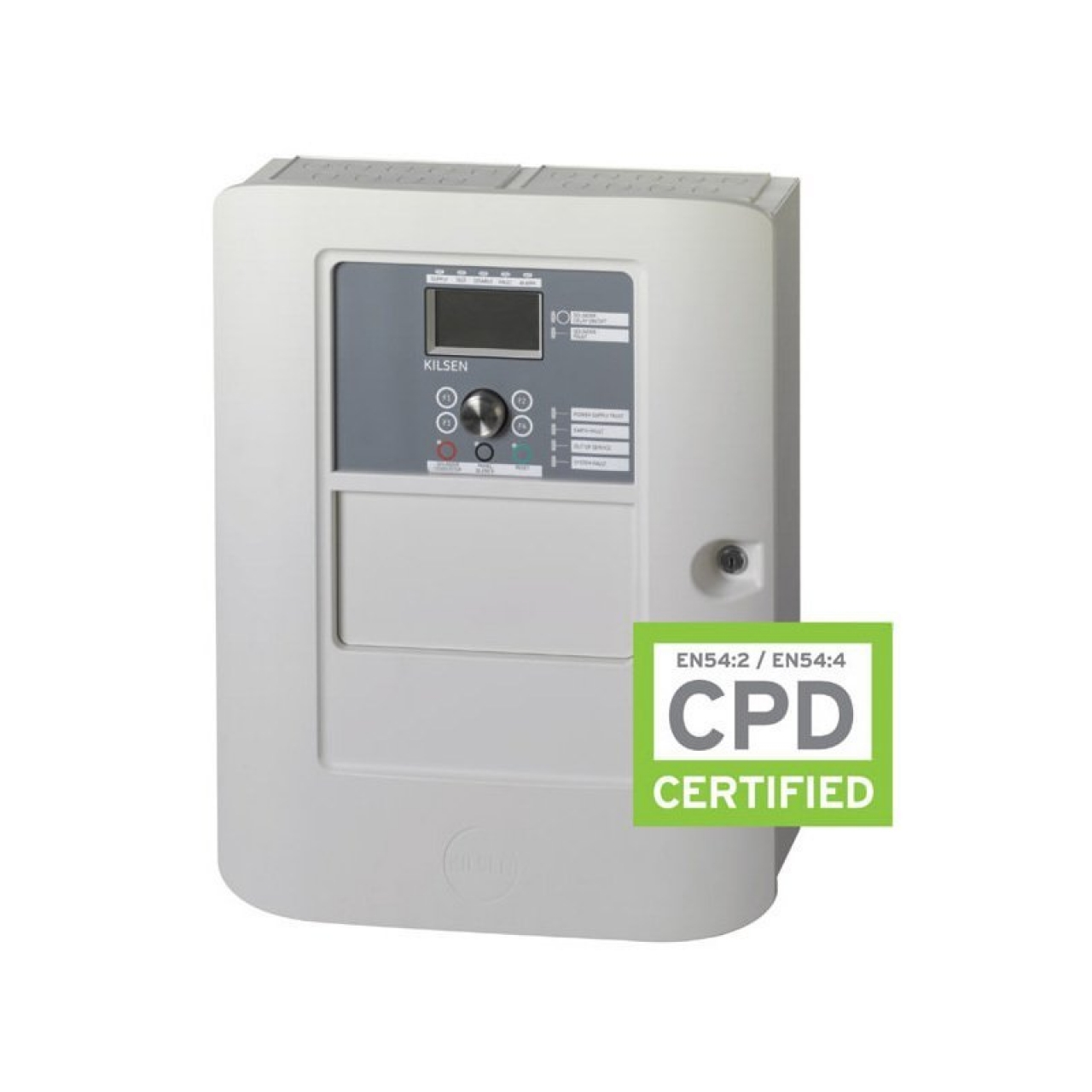

Kilsen Akıllı Adreslenebilir Yangın Alarm Kontrol Paneli KFP-AF1-19

Kilsen Akıllı Adreslenebilir Yangın Alarm Kontrol Paneli KFP-AF1-19 Akıllı Adreslenebilir Yangın Alarm Kontrol Paneli  1 Looplu (Türkçe) Panel başına 256 bölge Her loop’a 125 dedektör+125 modül bağlayabilme Alarm ve arıza durumları için 40 bölge göstergesi Simge destekli LCD grafik ekran 3 Usb portu 3 RS 232 portu 32 nokta /32 loop Akıllı programlama 8 programlanabilir çıkış Kolay kullanıcı arayüzü Dedektör kirlilik seviyesini gösterebilme Panel üzerinden dedektör adresleyebilme   Specifications Mains supply Voltage 230 / 110 VAC (+10% / -15%) Frequency 50 / 60 Hz (±5%) Current Nom. 0.6 / 1.3 A, Max. 1.5 / 3.15 A Fuse rating 2 / 4 A Cable type 3 x 1.5 mm² (live, neutral, earth) Batteries Max. 2 x 12V/18Ah (use supplied cables) Outputs Programmable supervised 2, 750mA / 19.5-28VDC (24VDC nominal) General Fire + Fault supervised 2, 350mA / 19.5-28VDC  (24 VDC nominal) General Fire + Fault relay 2 Aux 1 resetable, 500mA / 19.5-28VDC (24VDC nominal) Cable type Recommended 2 core 1.5 mm² twisted pair End of Line resistor 15kohm Inputs Programmable 2 Cable type Recommended 2 core 1.5 mm² twisted pair End of Line resistor 15kohm Maximum Load 150 mA Loops Outputs 1, 250 mA / 29VDC (29VDC to 36VDC ) Cable length 56ohm / 1microF max. 4 km Cable type Recommended 2 core 1.5 mm² twisted pair Environmental conditions Storage temperature -10°C to +50 °C Operating temperature -8°C to +42 °C Relative humidity max. 95 %  (non-condencing) Mechanical Size (W x D x H) 449.6 x 169.4 x 580.8 mm Weight 7.4 kg  (without batteries) Color RAL9010 Cable entries (Top / Bottom / Back) 18 (20mm) / 2 (20mm) / 2 removable plates IP rating IP30: for indoor use only
