GST Intelligent Yangın Adresli Loop Kartı 1 loop
GST LC200

Connecting with loop devices
Add one loop to connect 242 addressable devices

Özellikler

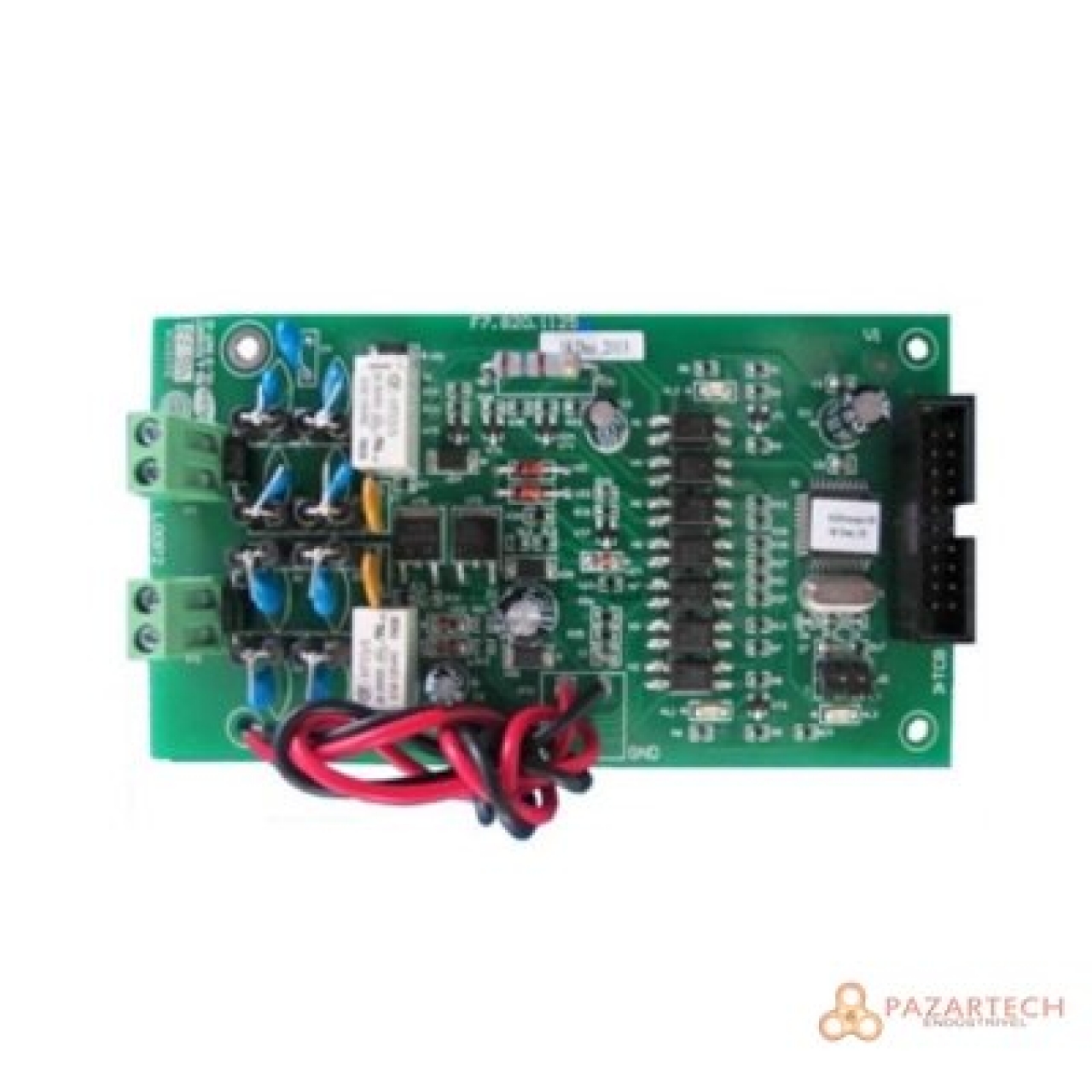

1) LC200 Loop Board is an optional card for GST200
Series Control Panels, used to extend additional
detection loops for connecting more devices with the
system.
2) One card is only used in the control panel; it shouldn’t
be inserted and removed when it is energized.
3) View registered devices (select the menu according
to type of a control panel)
View Menu
BROWSE->
1 Browse Devices ->
1 Loop Devices -> Loop1
Loop2
Press up and down keys to select and press Enter to
view.
or
BROWSE->
1 Loop Browse -> Loop1
Loop2
Press up and down keys to select and press Enter to
view.
or
MODE->
1 Read Status ->
2 System Point -> 1.Loop1
2.Loop2
Press number 1 or 2 to review the related content.
4) LEDs
a) HL1 LED: Red. It is lit when switching between
loops.
b) HL2 LED: Red. It is lit when input of loop is
interrupted.
c) HL3 LED: Red. It is lit when communicating with
main board.
