TELETEK SENSOIRIS-MIO04 Giriş Çıkış Modülü

SensoIRIS MIO04 is an addressable module with 4 relay outputs. The module is designed for application in addressable fire alarm systems, supporting TTE communication protocol.
The module controls 4 relay outputs.
SensoIRIS MIO04 is powered on from the fire panel and can be controlled via the communication protocol.

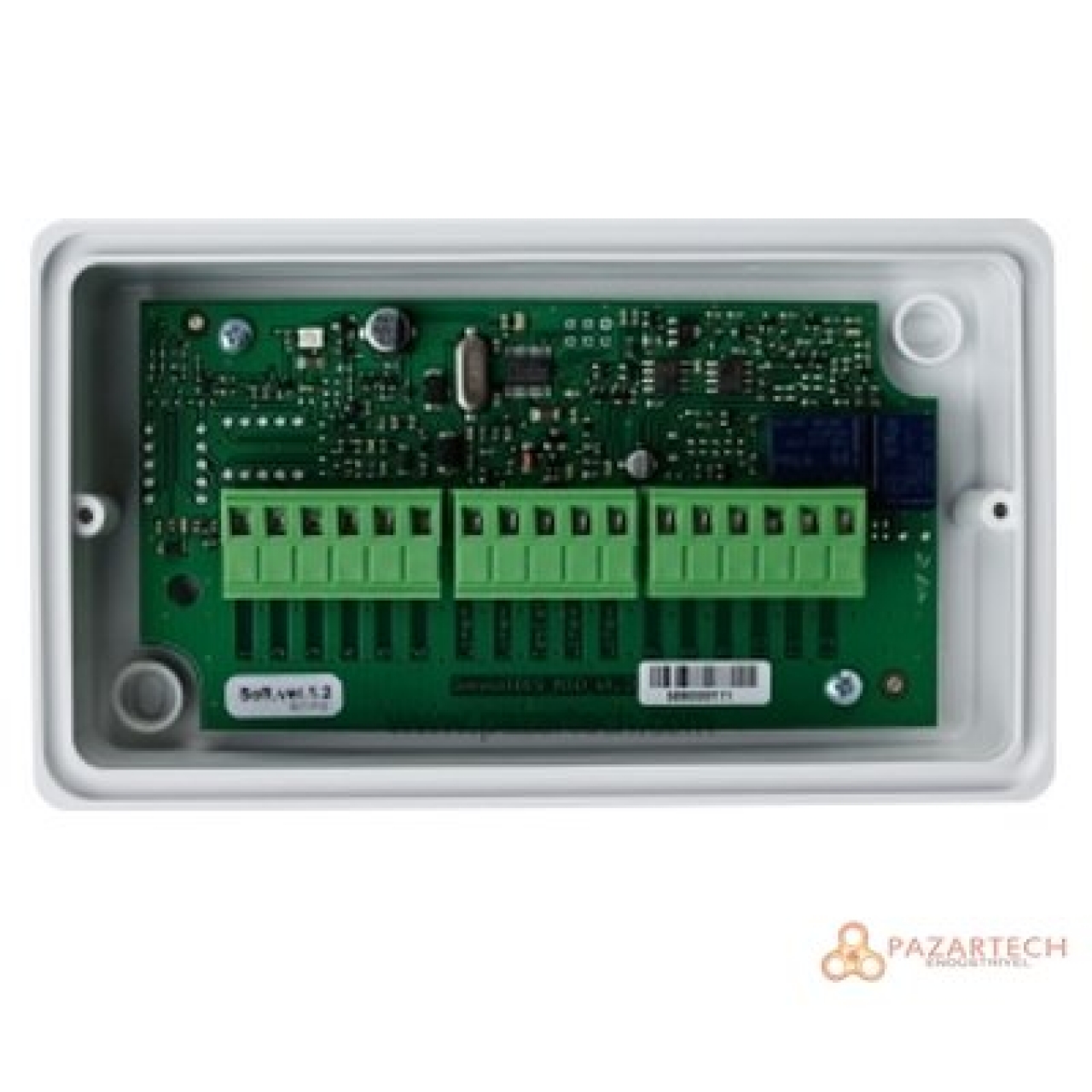

The module is mounted is a separate small plastic box suitable for wall mounting, with transparent cover for visual inspection.
Fonksiyonel özellikleri

4 Relay outputs
Loop powered
Built in isolator
Placed in plastic box with transparent cover for easy inspection
EN54 - 18 certified

Operating Voltage Range 15 - 32VDC
Consumption, stand-by mode 175μA@27VDC
Outputs, electrical characteristics (max.) DC 30V/1A; AC 125V/0,5A
Wire Gauge for terminals 0.4mm2 - 2.0mm2
Operating temperature -10°C to +60°C
Protection IP67
Weight ~230g
Dimensions 142x80x45
