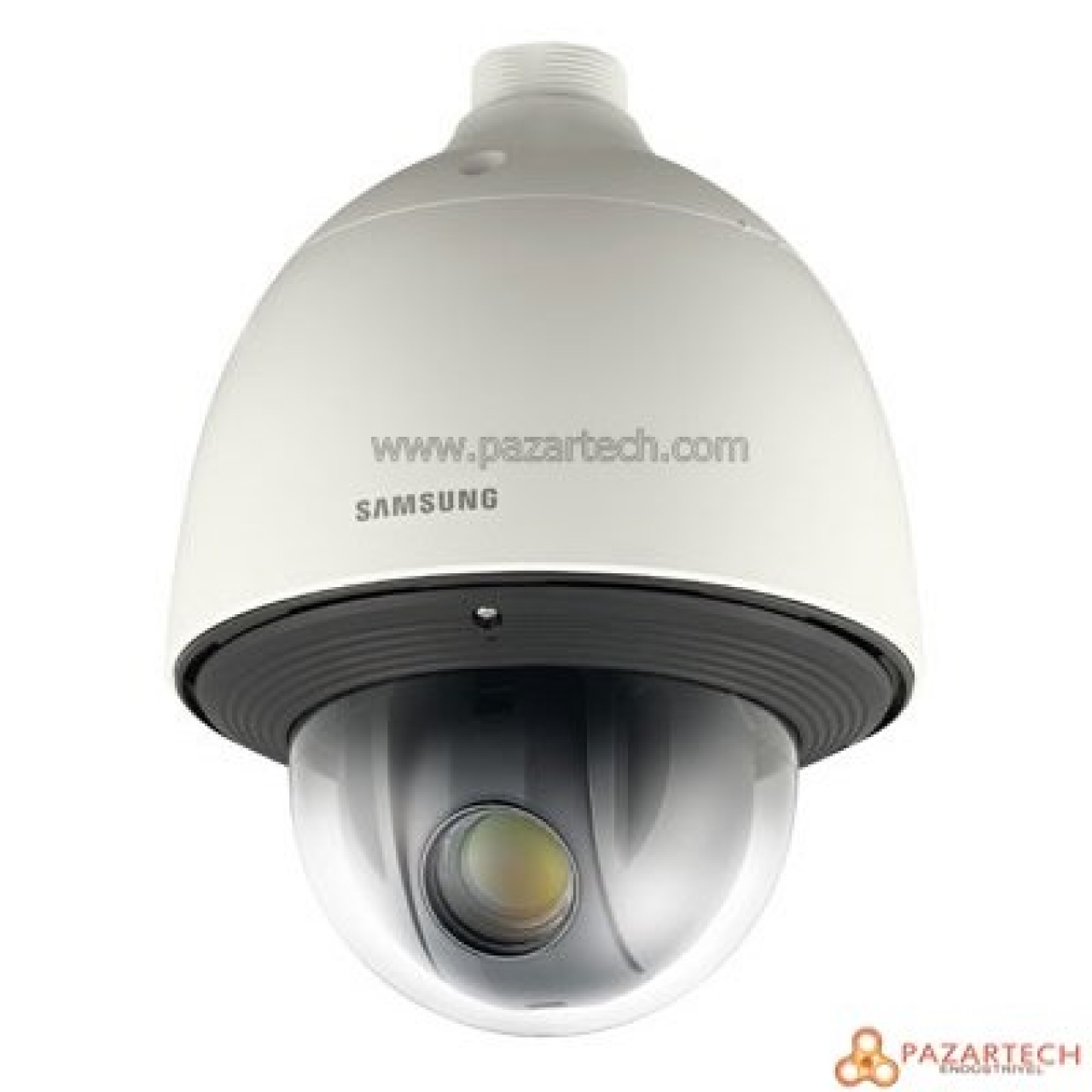

SAMSUNG SNP-5430HP 43X 1.3MP HD IP66 PTZ WDR IP SPEEDDOME KAMERA

Stok Kodu

SNP-5430HP

Markası

SAMSUNG
Kargo Bedava

Fiyatı Sorunuz

KARGO BİLGİSİ
Şimdi sipariş verirseniz ürün 3gün içinde kargoya verilecektir.
ANLAŞMALI FİRMALAR

Standart

Sepete Ekle Hemen Al

STOK BELİRTİLMEDİ

STOK SORGULAMA İÇİN TIKLAYINIZ.

MÜŞTERİ TEMSİLCİLERİYLE İLETİŞİME GEÇİNİZ

  • TELEFON

    -

Yukarıdaki bağlantılara tıklayarak stok hakkında bilgi talep edebilirsiniz.

  • Ürün Özellikleri
  • Ürün Yorumları
  • Kargo ve Ödeme

SAMSUNG SNP-5430HP 43X 1.3MP HD IP66 PTZ WDR IP SPEEDDOME KAMERA

• Max. 1.3M (1280 x 1024) resolution
• 16 : 9 HD (720p) resolution support
• 3.5 ~ 150.5mm (43x) optical zoom, 16x digital zoom
• H.264, MJPEG dual codec, Multiple streaming
• Day & Night (ICR), WDR (120dB)
• Auto tracking, Intelligent video analytics
• PoE+, SD/SDHC/SDXC memory slot, Bi-directional audio support
• IP66 (SNP-5430H) / IK10 (SNP-5430H, SNP-5430 + SHP-3701H only)

Video
Imaging Device 1/4" 1.3M CMOS
Total / Effective Pixels 1,392(H) x 1,076(V), 1.49M pixels / 1,368(H) x 1,049(V), 1.43M pixels
Scanning System Progressive
Min. Illumination Color : 0.5Lux (F1.4, 50IRE), 0.3Lux (F1.4, 30IRE)
B/W : 0.01Lux (F1.4, 50IRE), 0.006Lux (F1.4, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens
Focal Length (Zoom Ratio) 3.5 ~ 150.5mm (Optical 43x)
Max. Aperture Ratio F1.4(Wide) / F4.9(Tele)
Angular Field of View H : 53.92˚(Wide) ~ 1.396˚(Tele) / V : 44.08˚(Wide) ~ 1.12˚(Tele)
Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One push
Lens / Mount Type DC auto iris / Board-in type
Pan / Tilt / Rotate
Pan / Tilt Range 360˚ Endless / 210˚ (-15˚ ~195˚ )
Pan / Tilt Speed Preset : 700˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
Preset / Preset Accuracy 255ea / ±0.2˚
Auto Tracking Off / On
Operational
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea rectangle zone)
Privacy Masking Off / On (32 zones of rectangle zone)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom 16x
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell, AD, Vicon, Bosch, GE
Alarm Triggers Motion detection, Tampering, Audio detection, Face detection,
Video analytics, Alarm input, Network disconnection
Alarm Events
File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
Local storage (SD/SDHC/SDXC) or NAS recording at network disconnected & event (Alarm
triggers), External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10 / AVC), MJPEG
Resolution 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max. Framerate
H.264 : Max. 60fps at all resolutions
MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 640 x 480, 320 x 240 : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, RTCP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage
SD/SDHC/SDXC (SNP-5340 : micro SD type, SNP-5340H : SD type)
Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 / 10.8
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Google Chrome (Ver. 15 ~ 32), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
* Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature /
Humidity
24V AC : -50°C ~ +55°C (-58°F ~ +131°F) /
Less than ~ 90% RH
PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) /
Less than 90% RH
-10°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10
Electrical
Input Voltage / Current 24V AC ±10%, PoE+ (IEEE802.3at class3)
Power Consumption Max. 24W (Heater off),
Max. 65W (Heater on, 24V AC)
Mechanical
Color / Material Ivory / Plastic + Metal
Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8" x 11.56")
Weight 3.4Kg (7.5 lb)
