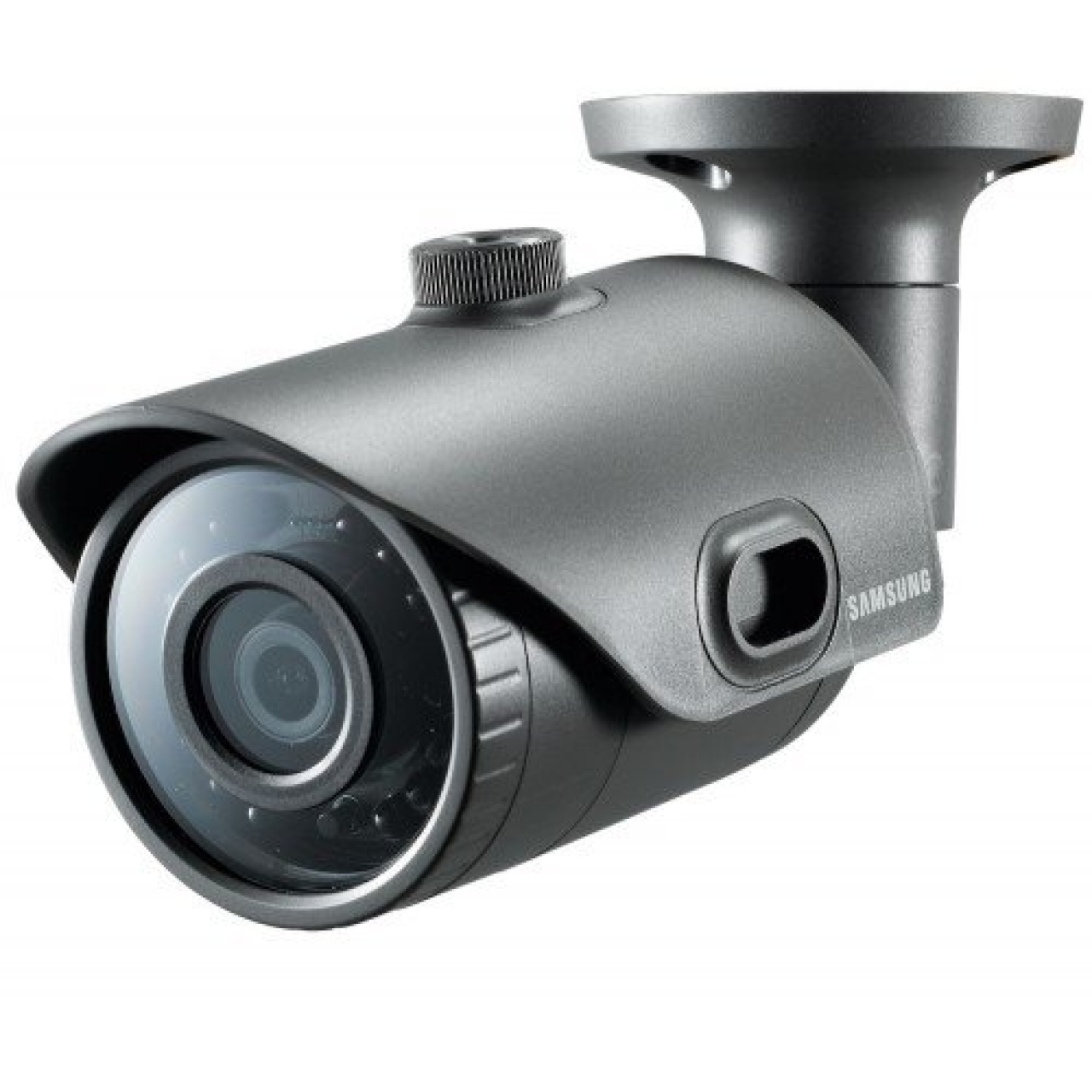

SAMSUNG SNO-L6013RP 2MP D&N, 3.6mm Ses, SD IP Kamera

• Max. 2M (1920 x 1080) resolution
• 3.6mm fixed lens
• 0.15Lux@F1.8 (Color), 0Lux@F1.8 (B/W : IR LED on)
• 30fps@all resolutions (H.264)
• H.264, MJPEG dual codec, Multiple streaming
• Motion detection, Tampering
• micro SD/SDHC memory slot, PoE
• IR viewable length 20m, IP66
• Hallway view support (Rotate 90˚/270˚)
• LDC support (Lens Distortion Correction)

Video
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels 2,000(H) x 1,121(V)
Effective Pixels 1,984(H) x 1,105(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux (1/30sec, F1.8), 0.003Lux (2sec, F1.8)
B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 3.6mm fixed
Max. Aperture Ratio F1.8
Angular Field of View H : 86.5˚ / V : 47.8˚ / D : 101.2˚
Min. Object Distance 0.5m (1.64ft)
Lens Type Fixed
Mount Type Board type
Operational
IR Viewable Length 20m (65.62ft)
Camera Title Off / On (Displayed up to 15 characters)
Day & Night True Day & Night
Backlight Compensation Off / BLC
Contrast Enhancement (DWDR) SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea rectangular zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264, MJPEG
Resolution 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 720 x 576, 640 x 480, 320 x 240
Max. Framerate
H.264 : Max. 30fps at all resolutions
MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768,
Max. 15fps at other resolution
Video Quality Adjustment H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage
micro SD/SDHC max. 32G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S, G, SUNAPI (HTTP API)
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35),
Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X 10.10),
7.0.6(Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7)
* Mac OS X only
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Electrical
Input Voltage / Current PoE (IEEE802.3af, Class2)
Power Consumption Max. 5.7W
Mechanical
Color / Material Dark gray / Plastic
Dimensions (WxH) Ø58.6 x 165.2mm (Ø2.31" x 6.5") (Without sunshield)
Weight 250g (0.55 lb)
