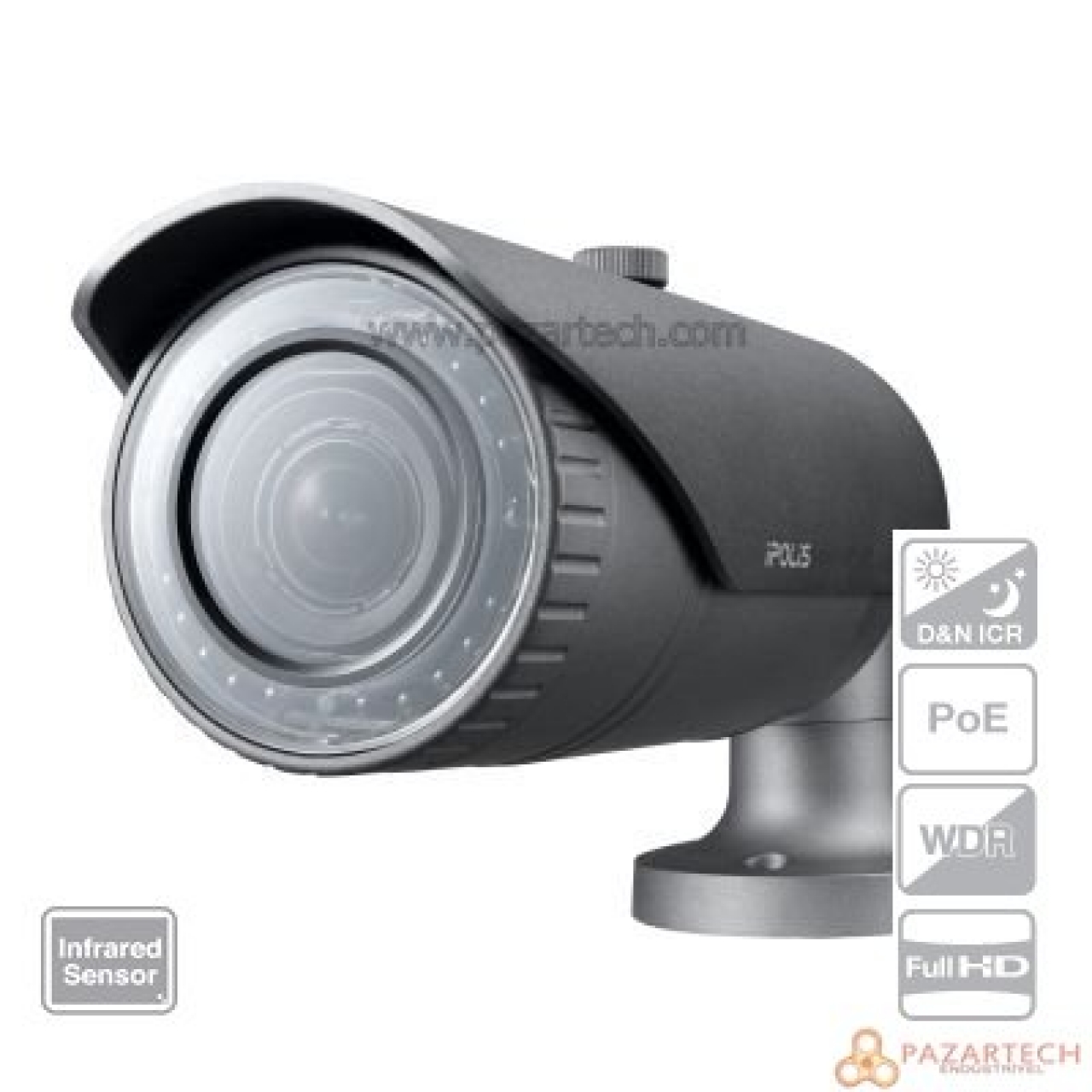

SAMSUNG SNO-7084RP 3MP eWDR INFRARED GECE GÖRÜŞ IP KAMERA

• Max. 3Megapiksel (2048 x 1536) resolution
• 30fps@2,048 x 1,536 / 60fps@1,920 x 1,080
• 3 ~ 8.5mm (2.8x) motorized varifocal lens
• Simple focus (Motorized VF), P-Iris
• Day & Night (ICR), Enhanced DIS, Defog
• 3M real-time WDR (Max. 120dB)
• micro SD/SDHC/SDXC memory slot (4GB included)
• Multi-crop streaming
• IR LED (20ea), PoE, IP66, IK10, Bi-directional audio support

Video
Imaging Device 1/2.8" 3.2M CMOS
Total / Effective Pixels 2,065(H) x 1,565(V) / 2,065(H) x 1,553(V)
Scanning System Progressive
Min. Illumination Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE)
B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE), 0Lux (2sec, F1.2, 50IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation, Connector type
Lens
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens Type / Mount Type DC auto iris, P-Iris / Board-in type
Operational
IR LED 20ea
Viewable Length 30m (98.43ft)
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4-sided polygon)
Privacy Masking Off / On (32 zones with 4-sided polygon)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection,
Face detection with metadata
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Motion detection, Tampering, Audio detection, Face detection,
Network disconnection, Video analytics, Alarm input
Alarm Events File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
H.264 : Max. 30fps@2048 x 1536, 1600 x 1200, Max 60fps@the other resolutions
MJPEG : Max. 10fps@2048 x 1536
Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Smart Codec Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack), Max output level : 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage
micro SD/SDHC/SDXC (4GB included)
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, HTTP API (SUNAPI) 2.0, SVNP 1.2
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8)
Mozilla Firefox (Ver. 19 ~9) * Windows only
Google Chrome (Ver. 25 ~ 15) * Windows only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature /
Humidity
24V AC : -50°C ~ +55°C (-58°F ~ +131°F) / Less than 90% RH
12V DC, PoE : -20°C ~ +55°C (-4°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -10°C (+14°F)
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10
Electrical
Input Voltage / Current 24V AC, 12V DC, PoE (IEEE802.3af class3)
Power Consumption Max. 11.5W (12V DC), Max. 12.5W (PoE), Max. 13.0W / 19.0W (24V AC, Heater off / on)
* Heater works at AC power input only
Mechanical
Color / Material Dark gray / Aluminium
Dimensions (WxHxD) 82.4 x 82.4 x 312.6mm (3.24" x 3.24" x 12.31") (Without sunshield)
Weight 1.19Kg (2.62 lb) (With sunshield)
