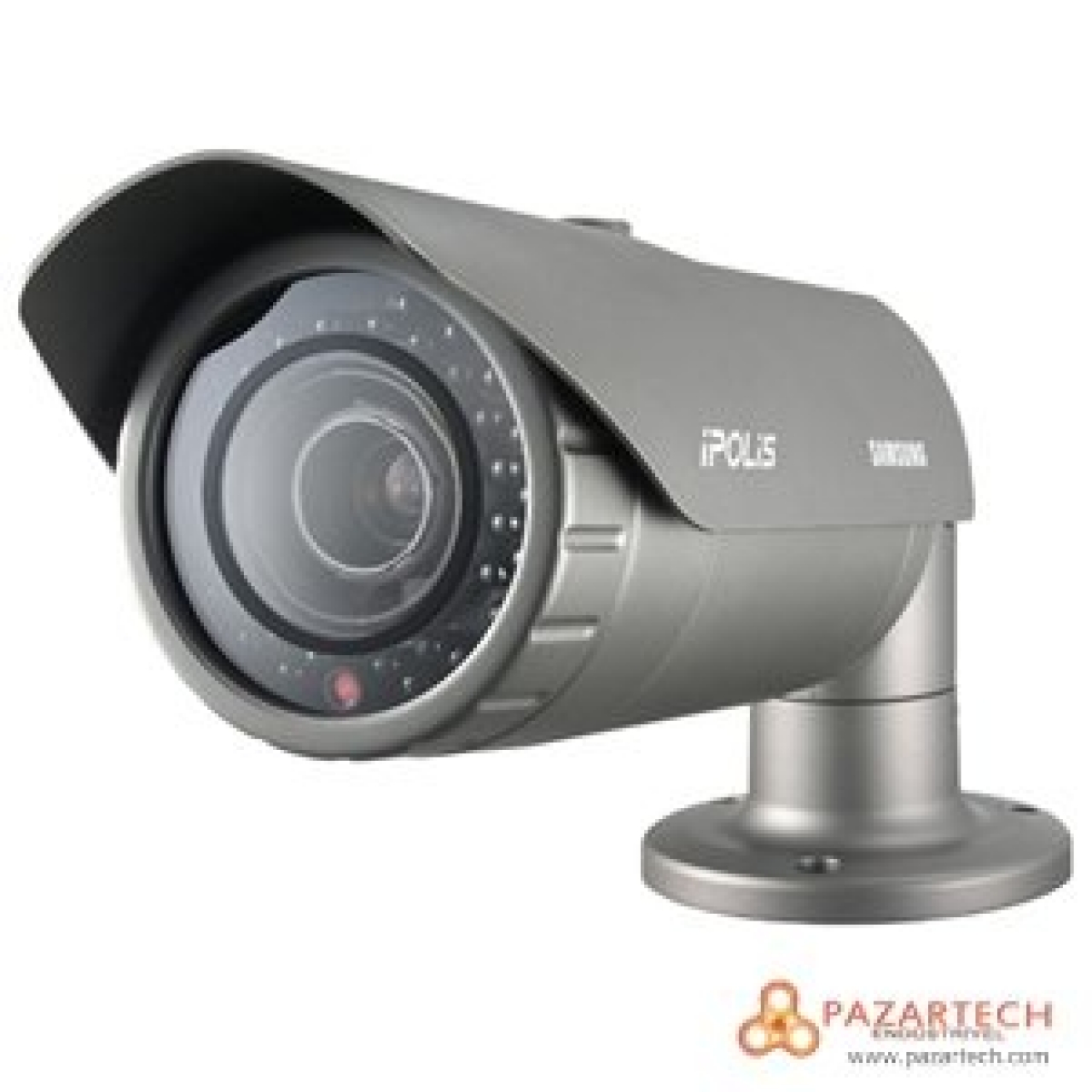

SAMSUNG SNO-7080RP 1/2.8" CMOS, 3MP,HD WDR 12VDC/PoE IP KAMERA

3M (2048 x 1536) çözünürlük
16 : 9 Full HD (1080p) display desteği
3 ~ 8.5mm (2.8x) motorized varifocal lens
Built-in IR LED (32ea), viewable length of 30m
H.264 / MJPEG dual codec and multiple streaming
Full HD WDR
Smart Compression (ROI encoding)
SD/SDHC Memory slot card (4GB)
IP66 Grade (Waterproof)
IVA (Intelligent Video Analytics)

Ethernet : RJ-45 (10/100BASE-T)
Video Compression Format : H.264, MPEG-4, MJPEG
Resolution : 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
Max Framerate : 22fps (1280 x 1024), 30fps (720P HD)
Video Quality Adjustment H-264 MPEG : H.264, MPEG-4: Compression level, Target bitrate level control
Video Quality Adjustment MJPEG : MJPEG : Quality level control
Bitrate Control Method : H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Steaming Capacity : Multiple streaming (up to 10 profiles)
IP : 1
Protocol : TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF
Security : HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access Log
Streaming Method : Unicast / Multicast
Max User Access : 10 users at unicast mode
ONVIF Conformance : Yes
Webpage Language : English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Web Viewer Os : Supported OS : Windows XP / Vista / 7, MAC OS
Web Viewer Brower : Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
Central Management Software : NET-i-viewer

Chipset : WiseNetII

Lens
Focal Length : 2.8 10mm (3.6x) Vari-focal
Max Aperture Ratio : F1.2
Angular Field of View : H:94.6o(Wide) ~28.8o(Tele), V:68.4o(Wide) ~21.6o(Tele)
Focus Control : Manual
Lens Type : DC auto iris
Mount Type : Board-in type

Video
Imaging Devise : 1/3" 1.3M PS CMOS
Total Pixels : 1.384(H) x 1.076(V)
Effective Pixels : 1.329(H) x 1.049(V)
Scanning System : Progressive
Min Illumination TBD Colour : Colour: 0.3Lux (F1.2, 5OIRE), 0.005 Lux (Sens- up 60x)
Min Illumination TBD B-W : B/W: 0Lux (F1.2m 5OIRE, IR, LED on)
S-N Ratio : 50dB
Video Output : DIP connector type, 704 x 480(N), 704 x 576(P), for installation

Electrical
Input Voltage-Current : 12V DC, 24V AC / PoE (IEEE802.3af)
Power Consumption : Max.11W

Environmental
Operating Temperature : -10°C ~ +50°C (+14°F ~+ 122°F)
Operating Humidity : Less then 90%RH
Ingress Protection : IP66 Grade (Waterproof)

Mechanical
Colour-Material : Dark gray / Metal
Dimensions WxHxD : 86.0 x 86.1 x 332.8mm (3.39" x 3.39" x 13.1")
Weight : 1.3Kg (2.87lb)
