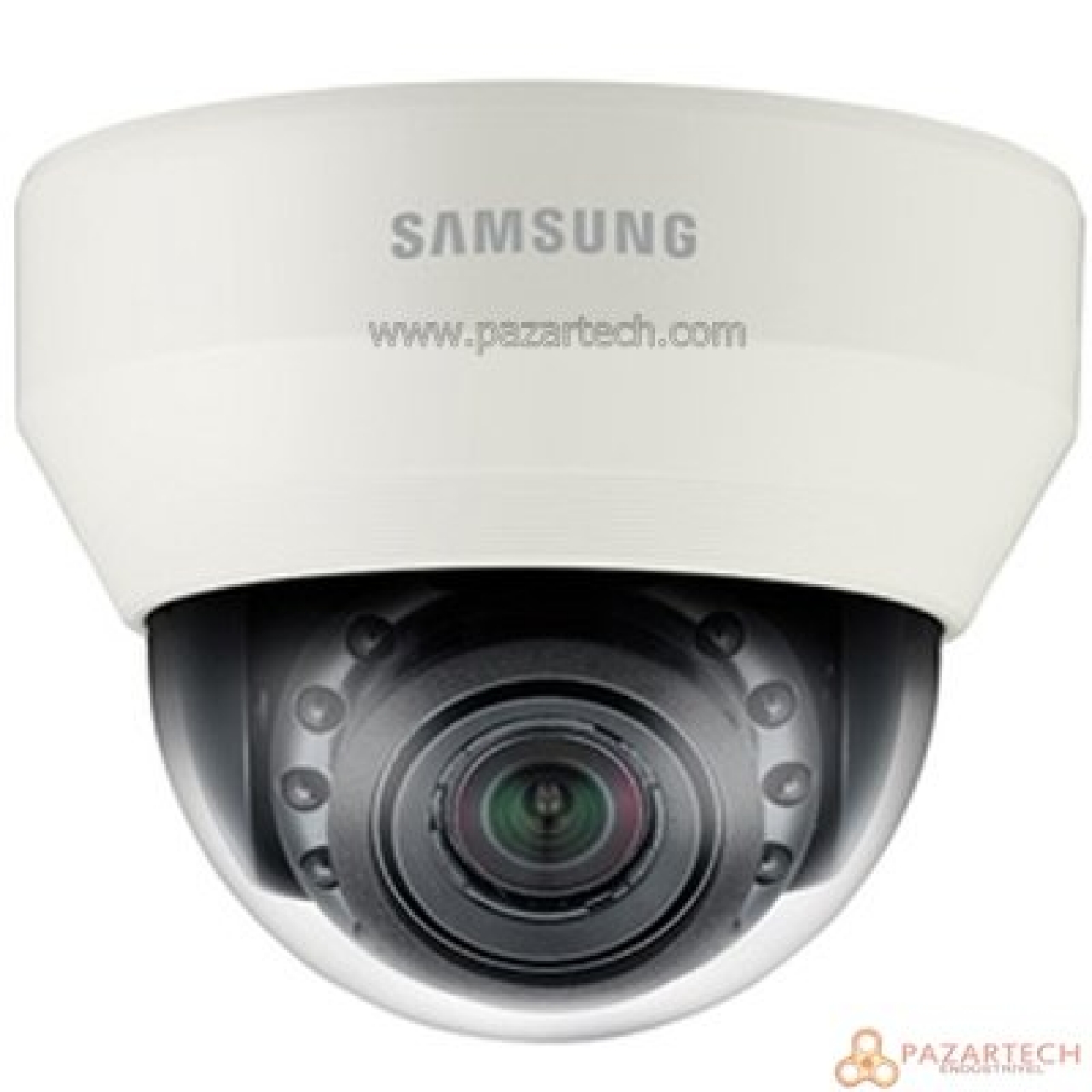

SAMSUNG SND-L6083RP 2MP 1/2.9 CMOS,2.8~12mm,POE IP Dome Kamera
Samsung WiseNet Lite Seri
Captures images up to 1080p (1920 x 1080) resolution
Built-in 2.8 to 12mm varifocal lens
Captures images in illumination levels as low as lux 0.095 @ F1.4 in color and 0 lux @ F1.4 in B&W
30 fps @ all resolutions (H.264)
Supports H.264, MJPEG dual codec, and multiple streaming
Motion detection, tampering
microSD/SDHC memory slot 1
PoE (Power over Ethernet)
IR viewable length up to 49.2'
Hallway view support (Rotate 90˚/270˚)
LDC support (Lens Distortion Correction)
Video
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels (H x V) 2000 x 1121
Effective Pixels (H x V) 1984 x 1105
Scanning System Progressive
Minimum Illumination Color: 0.095 lux (1/30 sec, F1.4), 0.002 lux (2 sec, F1.4)
B&W: 0 lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 2.8 to 12 mm (4.3x) varifocal lens
Maximum Aperture Ratio F1.4
Angular Field of View H: 103.8° (Wide) to 32.4° (Tele)
V: 53.7° (Wide) to 18.4° (Tele)
D: 121.9° (Wide) to 37.1° (Tele)
Minimum Object Distance 1.64' (0.50 m)
Focus Control Manual
Lens Type DC auto iris
Mount Type Board type
Pan / Tilt / Rotate
Pan Range 0 to 350°
Tilt Range 0 to 67°
Rotate Range 0 to 355°
Operational
IR Range 49.2' (15.0 m)
Camera Title Off / On (displayed up to 15 characters)
Day & Night True Day & Night
Backlight Compensation Off / BLC
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction (DNR) SSNR (Off / On)
Motion Detection Off / On (4ea rectangular zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Lens Distortion Compensation Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti-flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error
Alarm Events File upload via FTP and email, Local storage recording at event, Notification via email
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 and MJPEG
Resolution 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 640 x 480, 320 x 240
Maximum Frame Rate H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 1 fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, maximum 15 fps at other resolution
Video Quality Adjustment H.264: Target bitrate level control
MJPEG: Quality level control
Bitrate Control Method H.264: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (up to 3 profiles)
Audio I/O Built-in mic
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8 kHz, G.711 8 kHz, G.726: 16 kb/s, 24 kb/s, 32 kb/s, 40 kb/s
Audio Communication Uni-directional audio
IP Addresses IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, digest login authentication
IP address filtering, user access log, 802.1x authentication
Streaming Method Unicast / Multicast
Maximum User Access 6 Users at unicast mode
Storage microSD/SDHC maximum 32G, NAS
Motion images recorded in the SD memory card can be downloaded
Manual recording at local PC
Application Programming Interface ONVIF Profile S, G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser: Microsoft Internet Explorer (Version 8 to 11), Mozilla Firefox (Version 9 to 35), Google Chrome (Version 15 to 40), Apple Safari (Version 8.0.2 (Mac OS X 10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software: SmartViewer
Environmental
Operating Temperature / Humidity 14 to 131°F (-10 to 55°C)
Operating Humidity Less than 90% RH
Storage Temperature -22 to 140°F (-30 to 60°C)
Storage Humidity Less than 90% RH
Electrical
Input Voltage/Current PoE (IEEE802.3af, Class2)
Power Consumption Maximum 5.4 W
Mechanical
Material Body: Plastic
Dimensions (Ø x H) 4.7 x 3.9" (11.9 x 9.9 cm)
Weight 0.64 lb (0.29 kg)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 5.8 x 5.7 x 4.8"
