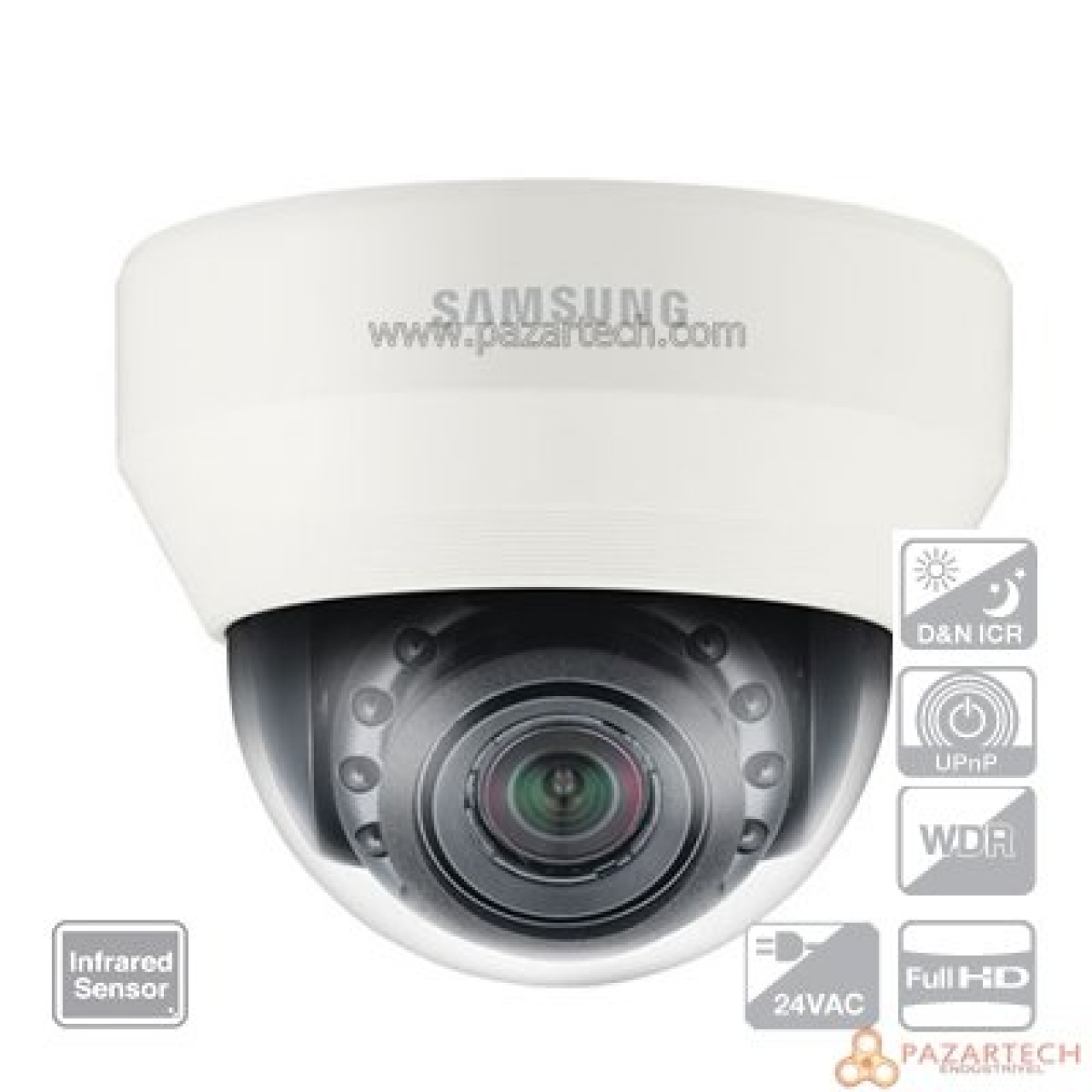

SAMSUNG SND-7084RP 3MP 3-8.5mm,SES,SD IRLED IP DOME KAMERA
• 30fps@2.048 x 1,536 / 1,920 x 1,080 @ 60fps
• Basit odak (VF motorlu)
• Day & Night (ICR), gelişmiş DIS, Defog
• 3M gerçek-zamanlı WDR (Max. 120dB)
• Renk: 0.1Lux (F1.2, 50IRE); B / W: 0 Lux (IR LED açık)
• Dahili SD / SDHC / SDXC bellek yuvası
• Çoklu-kırpma akışı
• Dahili mikrofon.
VIDEO
Imaging Device 1/2.8" PS Exmor 3.2M CMOS
Total Pixels 2,065(H) x 1,565(V)
Effective Pixels 2,065(H) x 1,553(V)
Scanning System Progressive
Min. Illumination Color : 0.1Lux (F1.2, 50IRE), 0.01Lux (30fps, 1sec, 50IRE), B/W : 0Lux (IR LED on)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
DIP connector type
LENS
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Simple focus / Manual, Remote control via network (Manual, Simple focus, Day & Night)
Lens Type / Mount Type DC auto iris / Board-in type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
OPERATIONAL
IR LED 12ea
Viewable Length 25m (82.02ft)
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4 points polygonal)
Privacy Masking Off / On (32zones with 4points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection with metadata
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP
Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions
MJPEG : Max. 10fps@2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768
Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Smart Codec Built-in (Area-based : 5ea, Face detection mode)
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Mic(Line)-in / Built-in mic selectable via UI, Line-out (Mono, 1Vrms)
2.5V DC (4mA) powered 2K Ohm
Audio Compression Format G.711 u-law /G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP,
IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Memory Slot micro SD/SDHC/SDXC
Motion images recorded in the SDXC/SDHC/SD memory card can be downloaded
Application Programming Interfac ONVIF profile S, HTTP API v2.0, SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish
Web Viewer
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 11, 10, 9, 8),
Mozilla Firefox (Ver. 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9),
Google Chrome (Ver. 25, 24, 23, 22, 21, 20, 19, 18, 17,16, 15),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current 12V DC, PoE (IEEE802.3af class 3)
Power Consumption Max. 10.0W (12V DC), Max. 11.0W (PoE)
MECHANICAL
Color / Material Ivory / Aluminum
Dimensions (WxH) Ø132.1 x 107.6mm (Ø5.2" x 4.24")
Weight 1Kg (2.20 lb)
