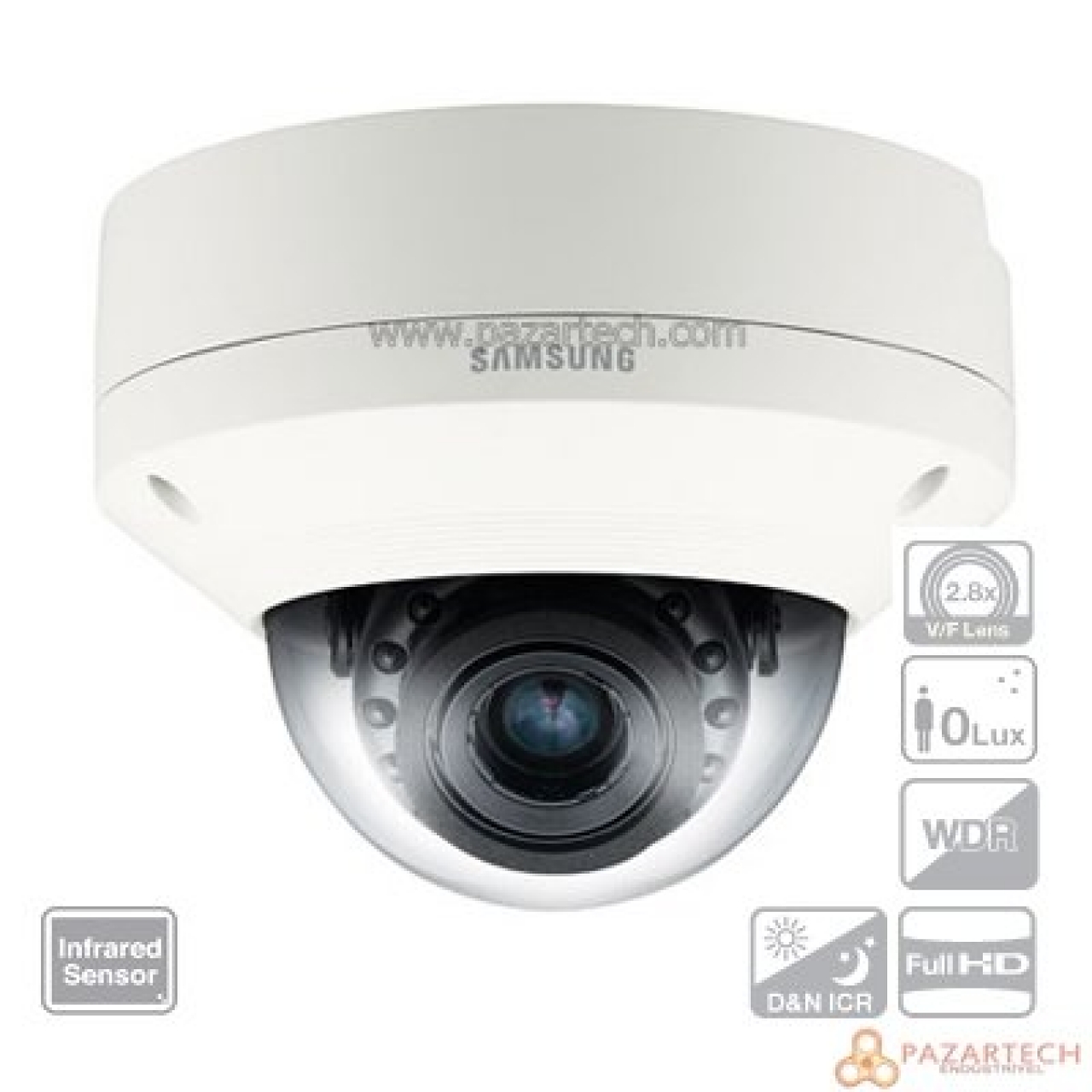

SAMSUNG SCV-6081R WDR 1080p HD-SDI IR Vandal-Resistant Dome Kamera

SAMSUNG SCV-6081R WDR 1080p HD-SDI IR Vandal-Resistant Dome Kamera • Full HD (1920 × 1080, 30fps) Mega çözünürlük, HD (1280 × 720, 60fps) • Min. Aydınlatma 0 Lux (IR LED açık) • 2.8 kata (3 ~ 8.5mm) Motor V / F lens • Basit Samsung Focus (tek dokunuşla odaklı Motorlu Değişken odaklı lens) 100dB • Wide Dynamic Range (WDR) • Gerçek Gündüz ve Gece (ICR) , MD, IP66 • SSGAIII (3D +2 D), RS-485, Coax, Çift Güç   VIDEOImaging Device 1/3" Progressive scan CMOS Total Pixels 2,010(H) x 1,108(V), 2.2M pixelsEffective Pixels 1,944(H) x 1,092(V), 2.1M pixelsScanning System ProgressiveMin. Illumination Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x)B/W : 0Lux (IR LED on) S / N Ratio 50dB (AGC off, Weight on)Video Output SMPTE292M (HD-SDI)LENSFocal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocalMax. Aperture Ratio F1.2Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)Min. Object Distance 0.5m (1.64ft)Lens Type DC auto irisMount Type Board-in typePAN / TILT / ROTATEPan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°OPERATIONALOn Screen Display English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, Danish, Portuguese, Japanese, Serbian, Czech, Romanian, TurkishCamera Title Off / On (Displayed up to 15 characters) Day & Night Auto (ICR) / External / Color / B/WBacklight Compensation Off / User BLC / HLC / WDRWide Dynamic Range 100dBContrast Enhancement SSDR (Off / On)Digital Noise Reduction SSNRIII (Off / On) Digital Image Stabilization Off / OnMotion Detection Off / On Privacy Masking Off / On (4ea polygonal + 16ea rectangular zones)Sens-up (Frame Integration) Off / Auto (2x ~ 60x)Gain Control Off / Low / Medium / HighWhite Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)Electronic Shutter Speed ESC / A.FLK / Manual Digital Zoom Off / On (1x ~ 16x) Reverse Off / H-Rev / V-Rev / HV-RevProfile Built-inPIP Off / OnIntelligent Video Analytics Tampering, Virtual line, Enter/Exit, Appear / DisappearAlarm (MD) output 1, External D/N in 1Remote Control Interface RS-485Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GEIR Distance 15m (49.21ft, IR LED : 12ea)ENVIRONMENTALOperating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RHIngress Protection IP66 grade ELECTRICALInput Voltage / Current Dual (24V AC & 12V DC ±10%)Power Consumption Max. 6WMECHANICALColor / Material Ivory / AluminumDimensions (WxH) Ø160.0 x 118.5mm (Ø6.3" x 4.67")Weight 960g (2.12 lb)TRANSMISSION DISTANCE5C2V (75ohm) Max. 100 ~ 140mL-6CHD (75ohm) Max. 200m
