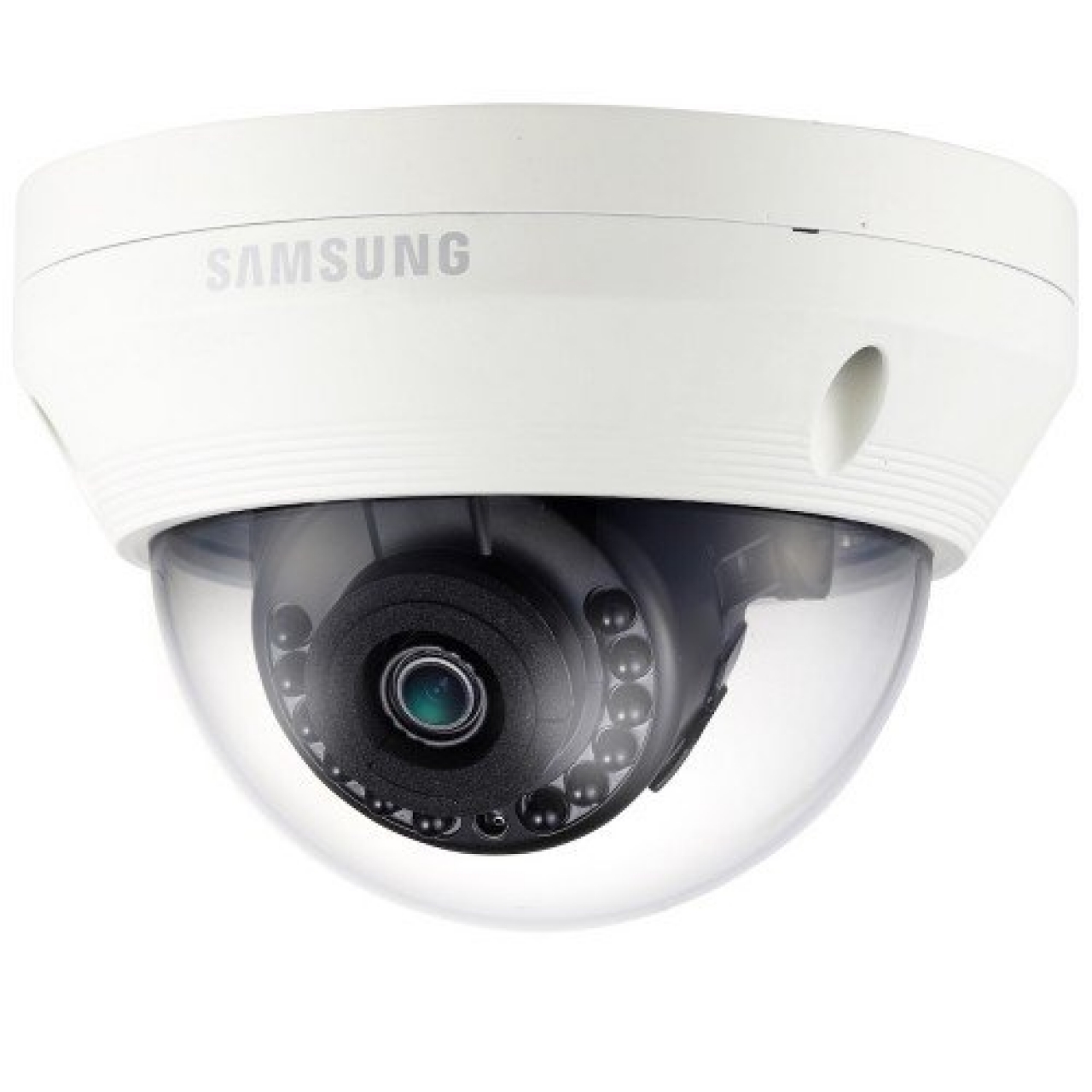

SAMSUNG SCV-6023RP 2MP D&N ICR, DWDR, 4mm VANDALPROOF AHD Dome Kamera

SAMSUNG SCV-6023RP 2MP D&N ICR, DWDR, 4mm VANDALPROOF AHD Dome Kamera WISENET HD+ kameralar, kullanıcıların hali hazırdaki CCTV kamera sistemlerini, koaksiyel kablolarını ethernet kabloları ile değiştirme masrafı yapmadan, eski koaksiyel kablo sistemini kullanarak HD sisteme yükseltmek için yeni AHD Kamera sistemi. Yeni WISENET HD + kameralarda Gündüz/Gece özellikleri, hareket algılama, buğu giderici, IR ledler ve daha modeline bağlı olarak yüksek performans özellikleri sunuyor. Modeller Box, Dome, Vandalproff Dome ve Bullet tipte bulunmaktadır. Kurulum ve çalıştırma fonksiyonları kolayca WISENET HD+ DVR koaksiyel kablo üzerinden dahili joystick veya kumanda ile OSD yardımı ile olur. Temel Özellikler:• Full HD (1,920 x 1,080 30fps) resolution• 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)• Built-in 4mm fixed lens• Day & Night (ICR), DWDR, SSNRIV, Motion detection• IR viewable length 20m, IP66, IK10• Transmission distance max. 500m• Easy installation (Plug & play) VideoImaging Device 1/2.9" 2M CMOSTotal Pixels 2,000(H) x 1,121(V) 2.24M pixelsEffective Pixels 1,984(H) x 1,105(V) 2.19M pixelsScanning System Progressive scanMin. Illumination Color : 0.25Lux (F2.1)B/W : 0Lux (IR LED on)S / N Ratio 52dB (AGC off, Weight on)Video Output BNC (AHD, CVBS selectable)Resolution 1920 x 1080Max. Framerate 30fps@1080p, 30fps@720pLensFocal Length (Zoom Ratio) 4mm fixedMax. Aperture Ratio F2.1Angular Field of View H : 72.2˚ / V : 52.9˚ / D : 94.3˚Min. Object Distance 0.5m (1.64ft)Focus Control ManualLens Type FixedMount Type Board-in typePan / Tilt / RotatePan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°OperationalOn Screen Display English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, TurkishCamera Title Off / On (Displayed 15 characters)Day & Night Auto (ICR) / Color / B/WBacklight Compensation Off / User BLC / HLCWide Dynamic Range DWDRDigital Noise Reduction SSNRIV (Off / On)Defog Off / Auto / ManualMotion Detection Off / On (4 zones)Privacy Masking Off / On (4 zones rectangle)Gain Control Off / Low / Middle / HighWhite Balance ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)Electronic Shutter Speed 1sec ~ 1/12,000secReverse Off / H-Rev / V-Rev / HV-RevProfile Basic, Day & Night, Backlight, Indoor, UserRemote Control Interface Coaxial controlProtocol Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)IR Distance 20m (65.62ft)Video Transmission Distance 500m (1,640.42ft) (75-5 coaxial cable)EnvironmentalOperating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH*Start up should be done at above -10°C (+14°F)Ingress Protection IP66Vandal Resistance IK10ElectricalInput Voltage / Current 12V DC ±10%Power Consumption Max. 4.2WMechanicalColor / Material Ivory / AluminumDimensions (WxH) Ø137.0 x 94.0mm (Ø5.39" x 3.7")Weight 560g (1.23 lb)
