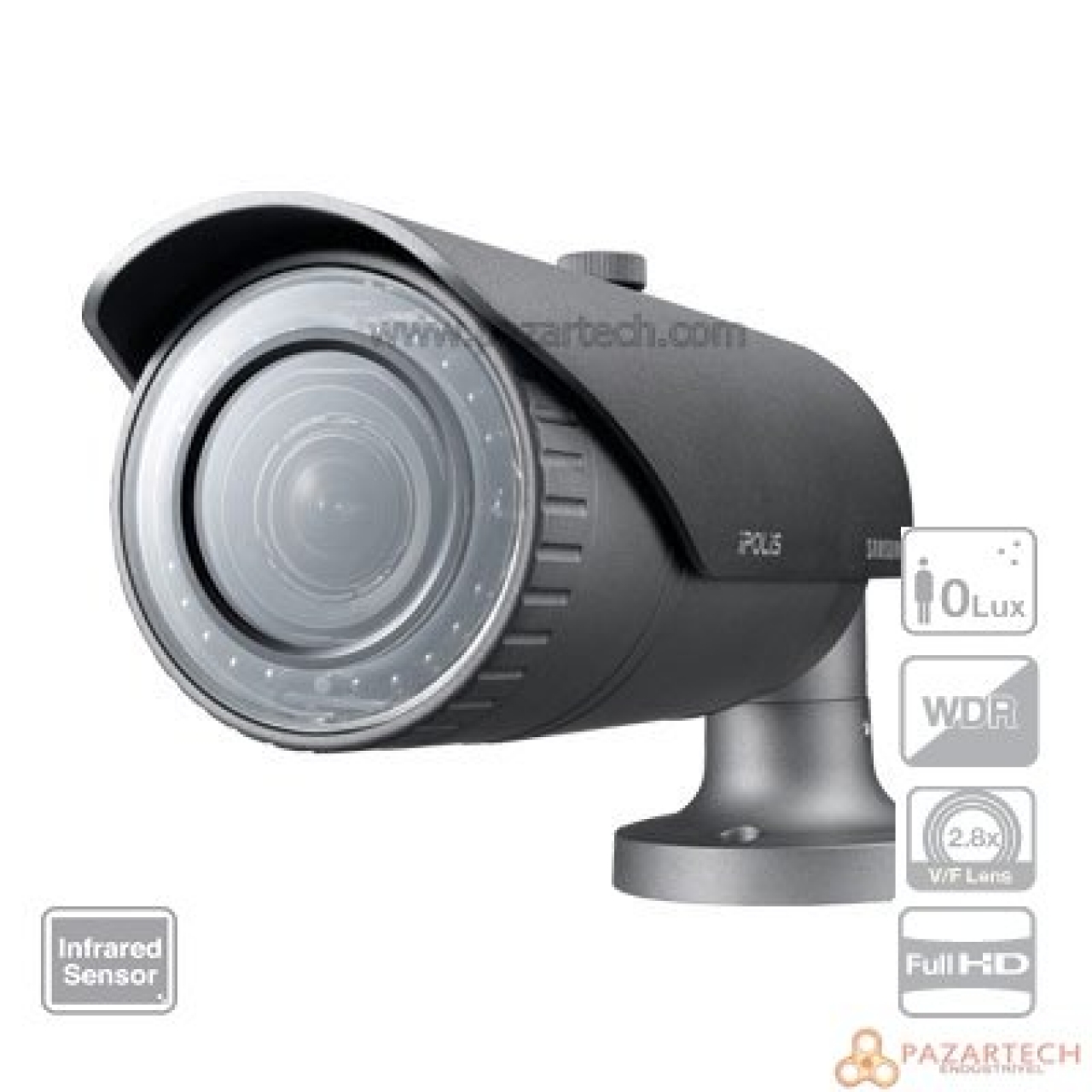

SAMSUNG SCO-6081R 1/3" FULL-HD HD-SDI KAMERA
• Full HD (1920 × 1080, 30fps) Mega çözünürlük, HD (1280 × 720, 60fps)
• Min. Aydınlatma 0 Lux (IR LED açık)
• 2.8 kata (3 ~ 8.5mm) Motor V / F lens
• Basit Samsung Focus (tek dokunuşla odaklı Motorlu Değişken odaklı lens)
• 100dB Wide Dynamic Range (WDR)
• Gerçek Gündüz ve Gece (ICR) , MD, IP66
• SSGAIII (3D +2 D), RS-485, Coax, Çift Güç
VIDEO
Imaging Device 1/3" Progressive scan CMOS
Total Pixels 2,010(H) x 1,108(V), 2.2M pixels
Effective Pixels 1,944(H) x 1,092(V), 2.1M pixels
Scanning System Progressive
Min. Illumination Color : 1Lux@F1.2, 0.015Lux (Sens-up, 60x)
B/W : 0Lux (IR LED on)
S / N Ratio 50dB (AGC off, Weight on)
Video Output SMPTE292M (HD-SDI)
LENS
Focal Length (Zoom Ratio) 3 ~ 8.5mm (2.8x) motorized varifocal
Max. Aperture Ratio F1.2
Angular Field of View H : 105.5°(Wide) ~ 37.1°(Tele) / V : 57.5°(Wide) ~ 21.0°(Tele)
Min. Object Distance 0.5m (1.64ft)
Lens Type DC auto iris
Mount Type Board-in type
OPERATIONAL
On Screen Display English, Korean, French, German, Spanish, Italian, Chinese, Russian, Polish, Swedish, Danish, Portuguese,
Japanese, Serbian, Czech, Romanian, Turkish
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC / WDR
Wide Dynamic Range 100dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRIII (Off / On)
Digital Image Stabilization Off / On
Motion Detection Off / On
Privacy Masking Off / On (4ea polygonal + 16ea rectangular zones)
Sens-up (Frame Integration) 2x ~ 60x
Gain Control Off / Low / Medium / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
Electronic Shutter Speed ESC / A.FLK / Manual
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Built-in
PIP Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter/Exit, Appear / Disappear
Alarm (MD) output 1, External D/N in 1
Remote Control Interface RS-485
Protocol RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
IR Distance 30m (98.34ft, IR LED : 20ea)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Ingress Protection IP66 grade
ELECTRICAL
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 6W
MECHANICAL
Color / Material Dark gray / Aluminium
Dimensions (WxHxD) 90.4 x 96.0 x 333.2mm (3.56" x 3.78" x 13.12")
Weight 1.3Kg (2.87 lb)
TRANSMISSION DISTANCE
5C2V (75ohm) Max. 100 ~ 140m
L-6CHD (75ohm) Max. 200m
