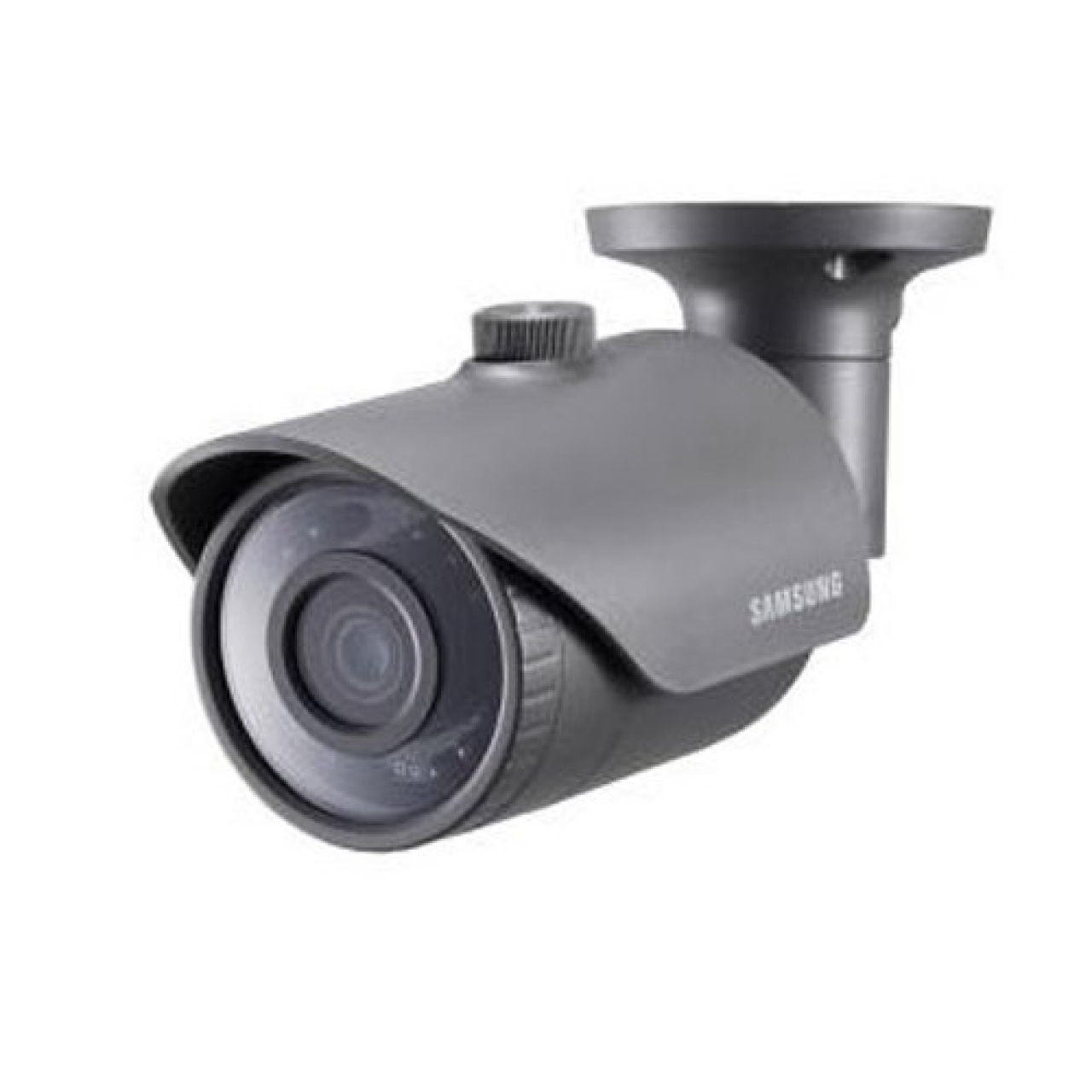

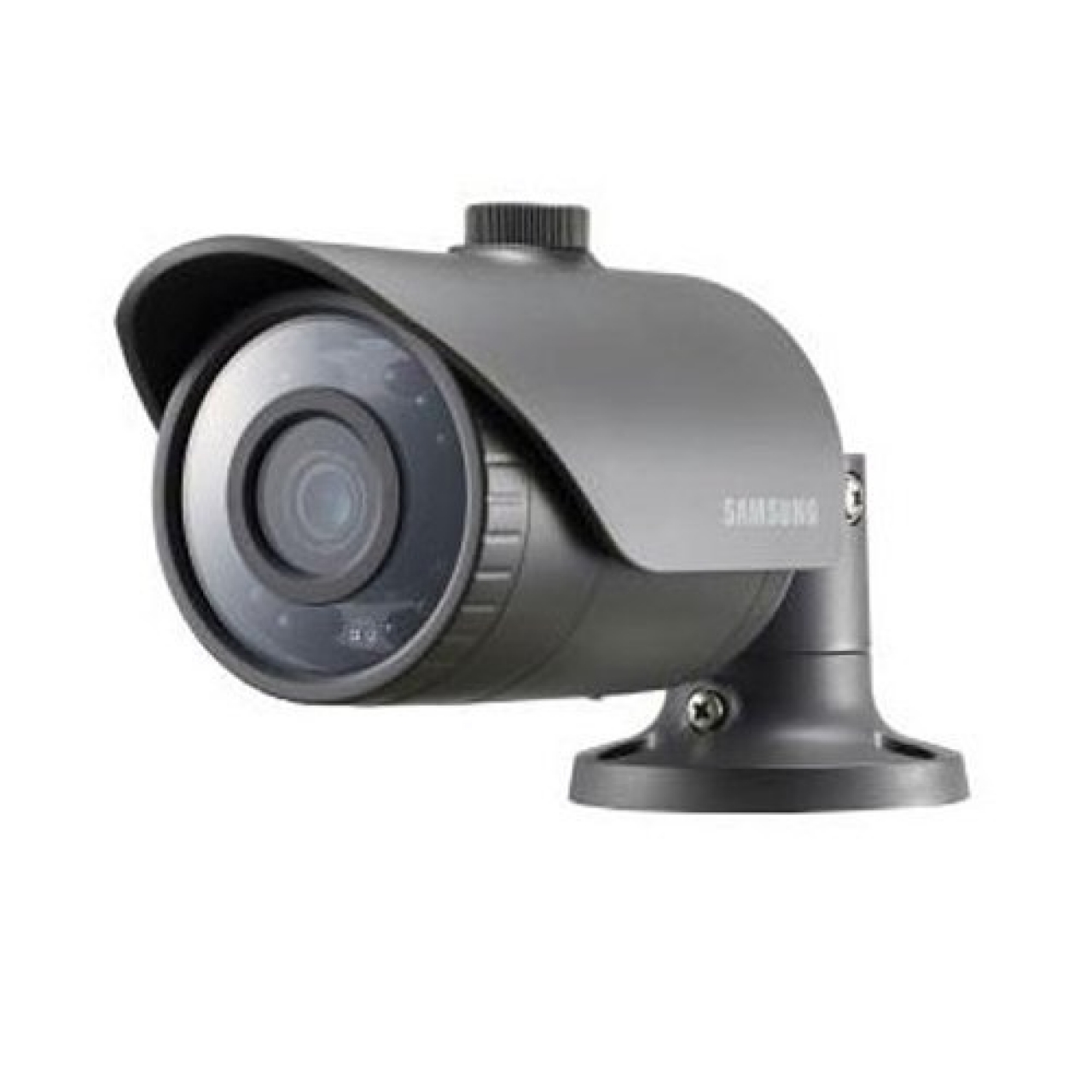

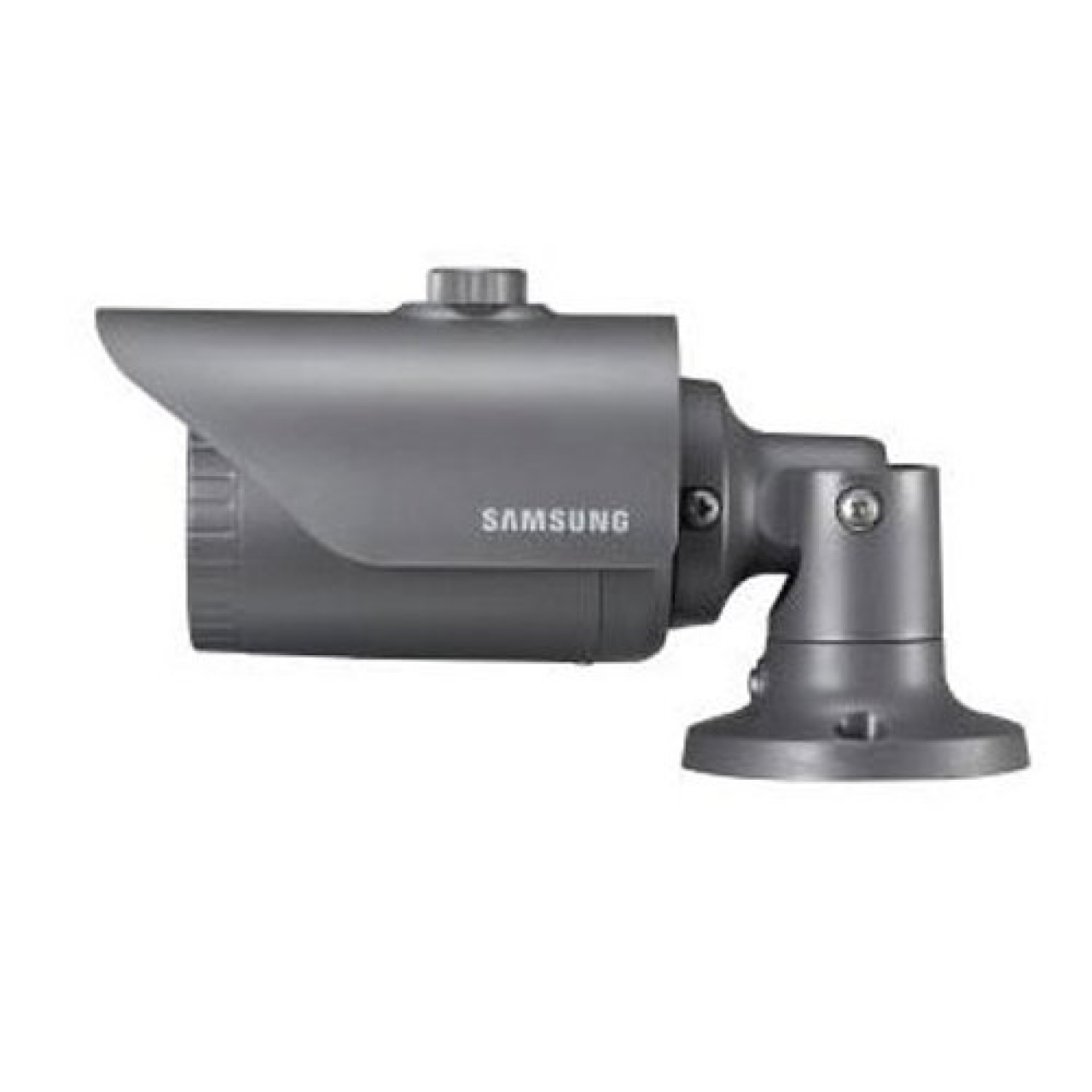

SAMSUNG SCO-6023RP 2MP D&N,DWDR, 4mm AHD Bullet Kamera

WISENET HD+ kameralar, kullanıcıların hali hazırdaki CCTV kamera sistemlerini, koaksiyel kablolarını ethernet kabloları ile değiştirme masrafı yapmadan, eski koaksiyel kablo sistemini kullanarak HD sisteme yükseltmek için yeni AHD Kamera sistemi. Yeni WISENET HD + kameralarda Gündüz/Gece özellikleri, hareket algılama, buğu giderici, IR ledler ve daha modeline bağlı olarak yüksek performans özellikleri sunuyor. Modeller Box, Dome, Vandalproff Dome ve Bullet tipte bulunmaktadır. Kurulum ve çalıştırma fonksiyonları kolayca WISENET HD+ DVR koaksiyel kablo üzerinden dahili joystick veya kumanda ile OSD yardımı ile olur.

Temel Özellikler:
• Full HD (1920 x 1080 30fps) çözünürlük
• 0.25Lux@F2.1 (Renkli), 0Lux@F2.1 (S / B: LED IR)
• Dahili 4mm sabit lens (1/2.9″ ile yatayda 72.2° Dikeyde 52.9°
Köşeden Köşeye 94.3° geniş Görüş Açısı)
• Day & Night (ICR), DWDR, SSNRIV, Hareket algılama
• IR görüntülenebilir uzunluğu 20m, IP66
• Aktarım mesafesi max. 500m
• Kolay kurulum (Plug & Play)

Video
Imaging Device 1/2.9" 2M CMOS
Total Pixels 2,000(H) x 1,121(V) 2.24M pixels
Effective Pixels 1,984(H) x 1,105(V) 2.19M pixels
Scanning System Progressive scan
Min. Illumination Color : 0.25Lux (F2.1)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output BNC (AHD, CVBS selectable)
Resolution 1920 x 1080
Max. Framerate 30fps@1080p, 30fps@720p
Lens
Focal Length (Zoom Ratio) 4mm fixed
Max. Aperture Ratio F2.1
Angular Field of View H : 72.2˚ / V : 52.9˚ / D : 94.3˚
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type Fixed
Mount Type Board-in type
Operational
On Screen Display English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,
Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / User BLC / HLC
Wide Dynamic Range DWDR
Digital Noise Reduction SSNRIV (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones)
Privacy Masking Off / On (4 zones rectangle)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, Indoor, User
Remote Control Interface Coaxial control
Protocol Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)
IR Distance 20m (65.62ft)
Video Transmission Distance 500m (1,640.42ft) (75-5 coaxial cable)
Environmental
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -10°C (+14°F)
Ingress Protection IP66
Electrical
Input Voltage / Current 12V DC ±10%
Power Consumption Max. 4.2W
Mechanical
Color / Material Dark gray / Plastic
Dimensions (WxH) Ø58.6 x 165.2mm (Ø2.31" x 6.5") (Without sunshield)
Weight 208g (0.46 lb)
* The latest product information / specification can be found at www.samsungahdkamera.com
