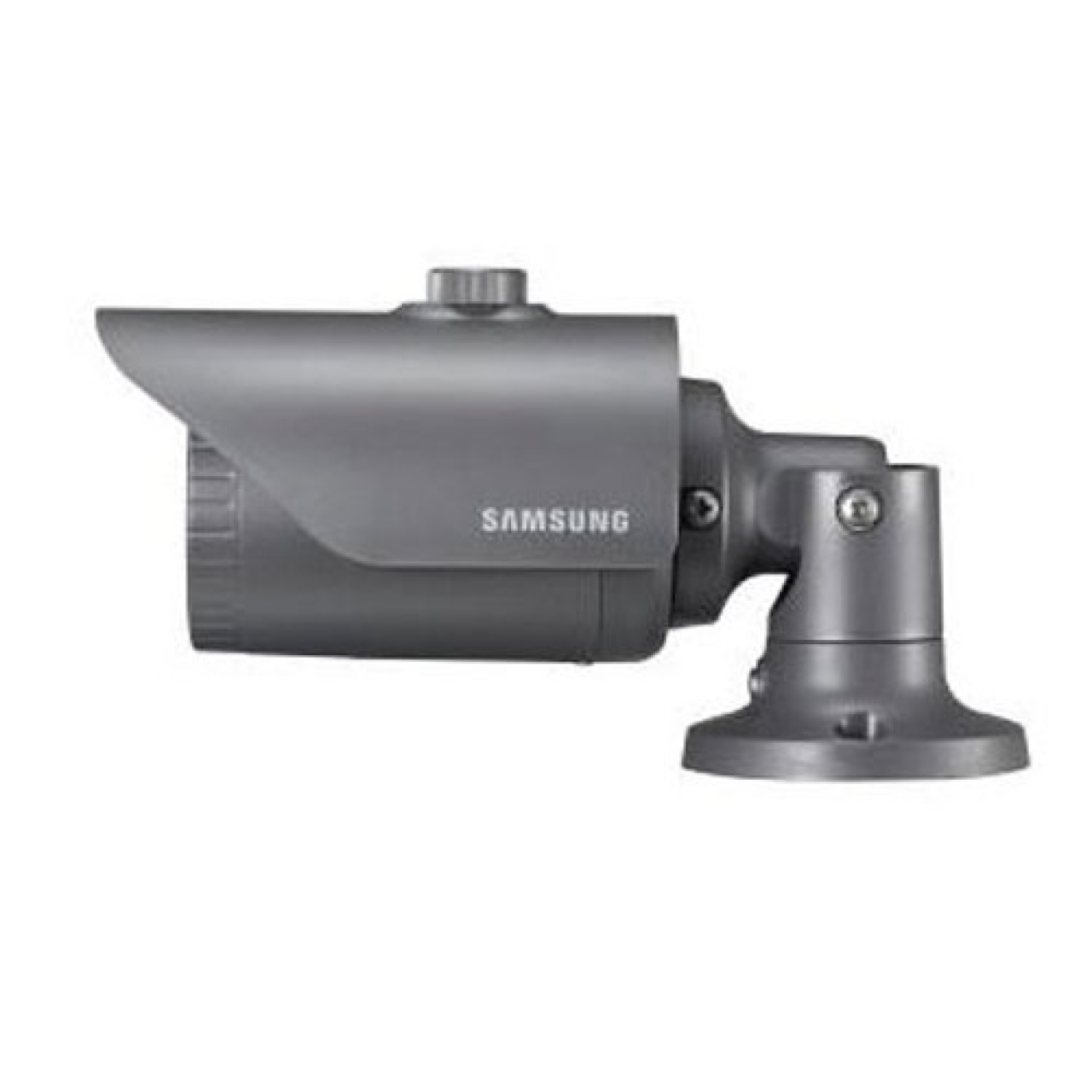

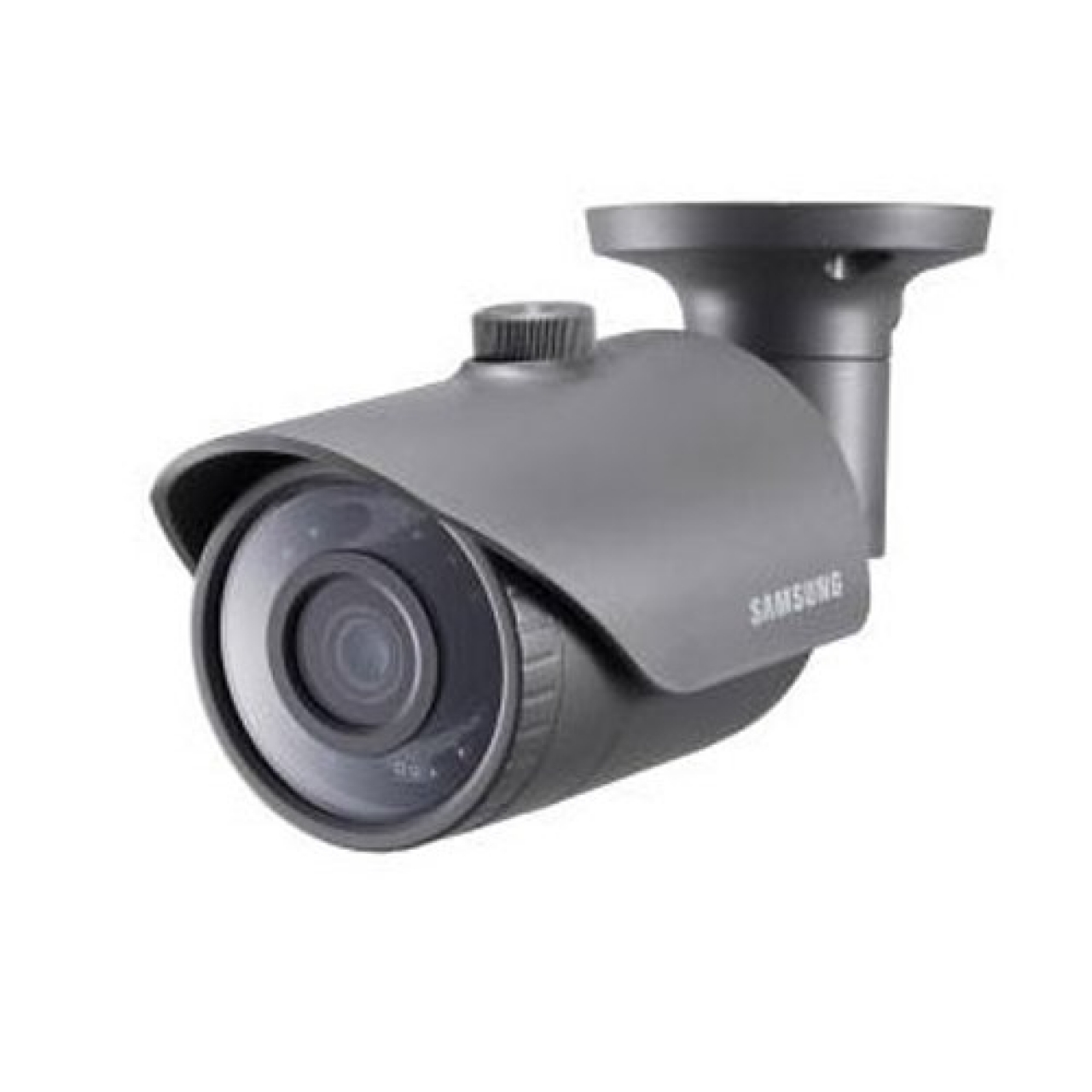

SAMSUNG SCO-5083RP 1000TVL 1/3D&N ICR,WDR 3-10mm IR Bullet Kamera

1/3" CMOS
1280H Desteği
1000 TVL Yüksek Çözünürlük
3-10 mm V/F Lensli
Gerçek D/N (ICR)
BLC / HLC / WDR (120dB)
SSDR, SSNRIV, Sis Giderme ve Akıllı Video Analiz
50m Gece Görüş
IP66 ve IK10 Koruma Sınıfları

Video
Imaging Device 1/3" 1.3M CMOS
Total Pixels 1,312(H) x 1,069(V)
Effective Pixels 1,305(H) x 1,049(V)
Scanning System Progressive scan
Synchronization Internal
Frequency H : 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
Horizontal Resolution Color : 1000TV lines, B/W : 1000TV lines
Min. Illumination
Color : 0.05Lux (F1.4, 50IRE), 0.001Lux (1sec, F1.4, 50IRE),
0.02Lux (F1.4, 30IRE), 0.0006Lux (1sec, F1.4, 30IRE)
B/W : 0Lux (IR LED on)
S / N Ratio 52dB (AGC off, Weight on)
Video Output CVBS : 1.0 Vpp / 75Ω composite
Lens
Focal Length (Zoom Ratio) 3 ~ 10mm (3.3x) varifocal
Max. Aperture Ratio F1.4
Angular Field of View H : 82.0°(Wide) ~ 26.5°(Tele) / V : 59.7°(Wide) ~ 19.9°(Tele)
Min. Object Distance 0.5m (1.64ft)
Focus Control Manual
Lens Type DC auto iris
Mount Type Board type
Operational
On Screen Display English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Russian,
Czech, Polish, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / External / Color / B/W
Anti IR Saturation Top / Bottom / Left / Right
Backlight Compensation Off / User BLC / HLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR IV (Off / On)
Defog Off / Auto / Manual
Purple Fringe Reduction Off / Low / Middle / High
Digital Image Stabilization Off / On
Tampering Off / On
Motion Detection Off / On
Intelligent Video Analytics Fence, (Dis)Appear, Counting (Off / On)
Privacy Masking Off / On (24 programmable zones with 4 points polygonal masking)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC / Mercury (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Digital Zoom Off / On (1x ~ 16x)
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, ITS, Indoor, User
Alarm 1 Out
Communication Coaxial control (SPC-300 compatible)
Protocol Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
IR Distance 50m (164.04ft) (IR LED 36ea)
Environmental
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -10°C (+14°F)
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 9.5W
Mechanical
Color / Material Dark gray / ALDC
Dimensions (WxH) Ø78.0 x 272.8mm (3.07" x 10.74") (Without sun shield)
Weight 1.5Kg (3.31 lb)
