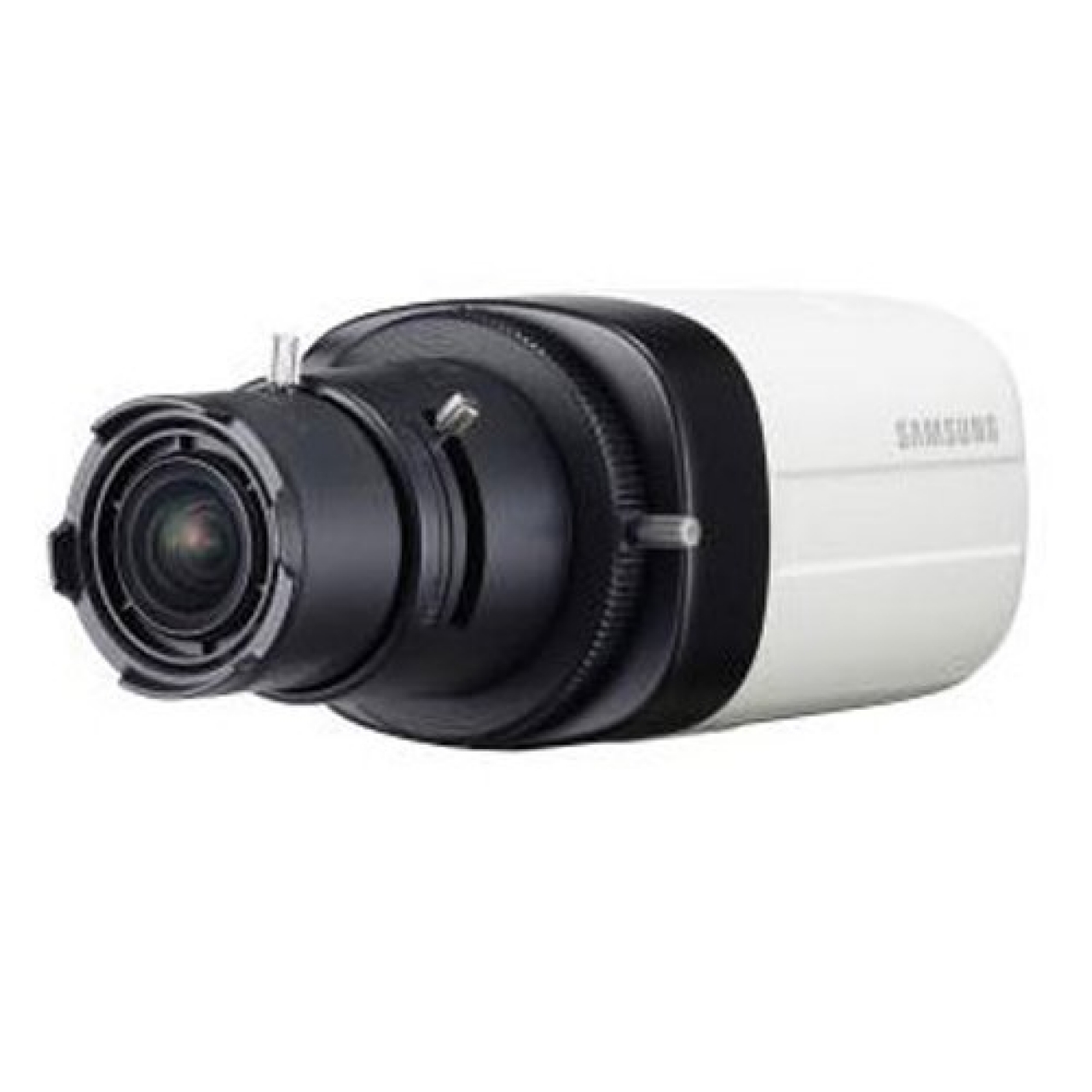

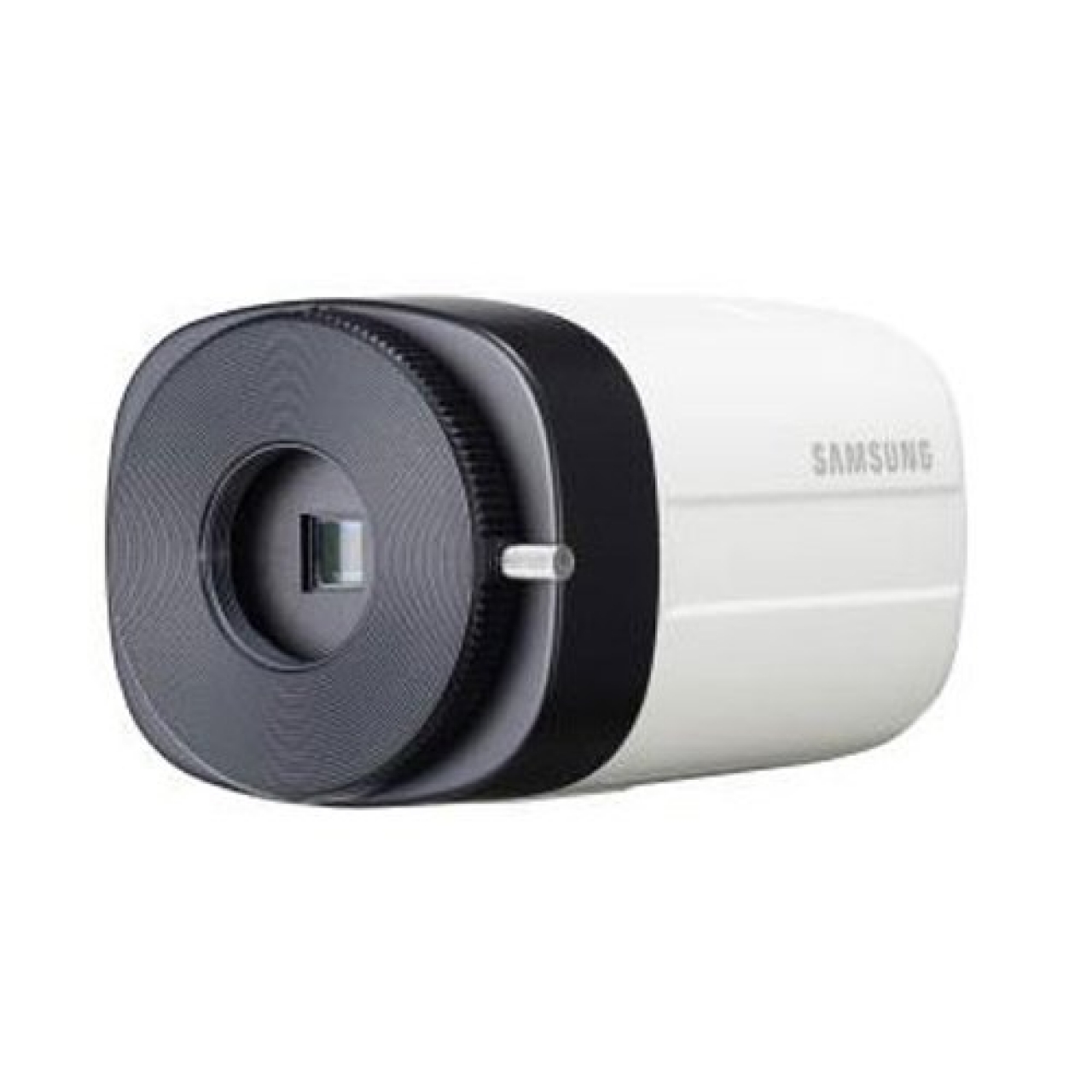

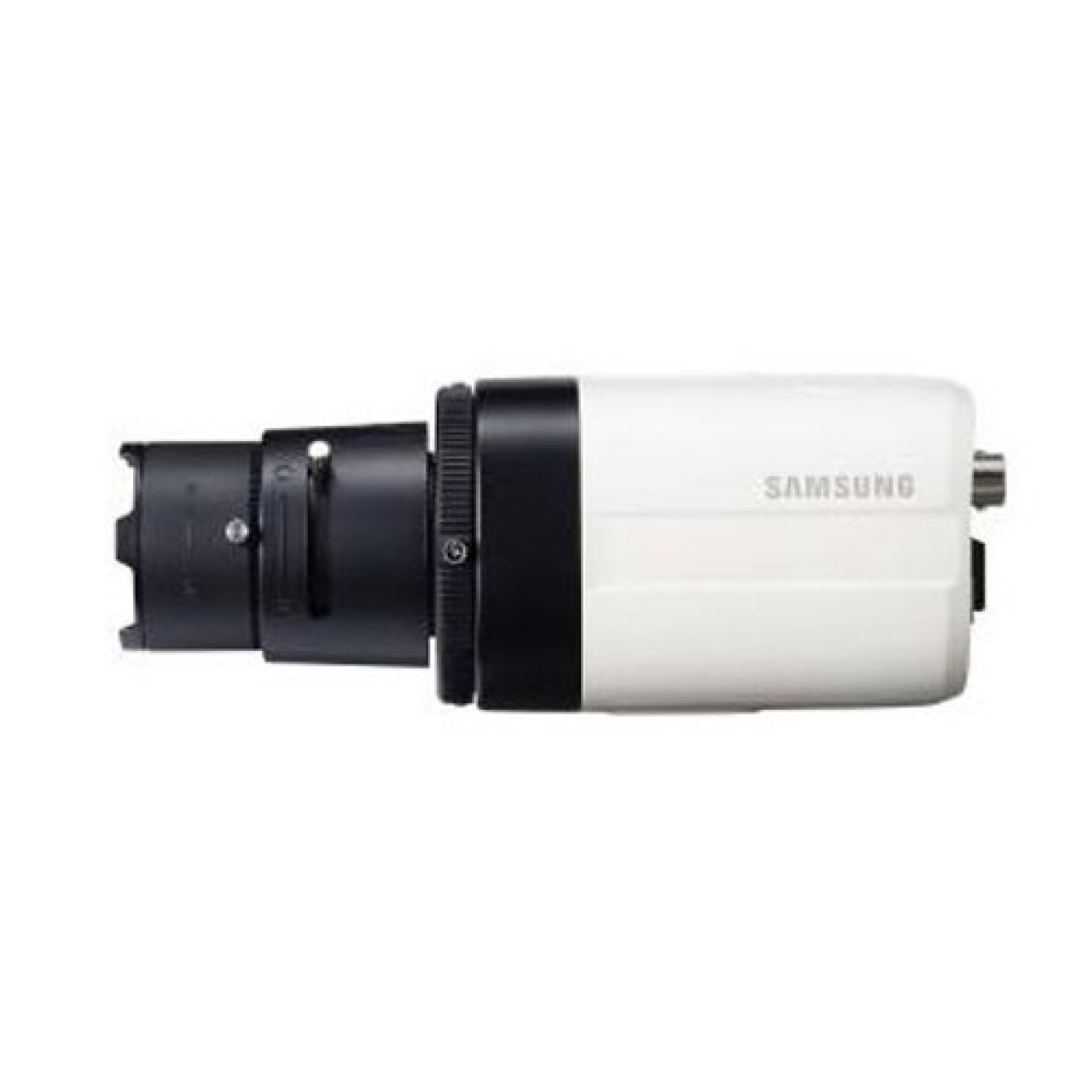

SAMSUNG SCB-6003P 2MP D&N AHD Box Kamera

WISENET HD+ kameralar, kullanıcıların hali hazırdaki CCTV kamera sistemlerini, koaksiyel kablolarını ethernet kabloları ile değiştirme masrafı yapmadan, eski koaksiyel kablo sistemini kullanarak HD sisteme yükseltmek için yeni AHD Kamera sistemi. Yeni WISENET HD + kameralarda Gündüz/Gece özellikleri, hareket algılama, buğu giderici, IR ledler ve daha modeline bağlı olarak yüksek performans özellikleri sunuyor. Modeller Box, Dome, Vandalproff Dome ve Bullet tipte bulunmaktadır. Kurulum ve çalıştırma fonksiyonları kolayca WISENET HD+ DVR koaksiyel kablo üzerinden dahili joystick veya kumanda ile OSD yardımı ile olur.

Temel Özellikler:
• FullHD (1920×1080 30fps) Çözünürlük
• 0.04Lux@F1.2 (Renkli), 0.004Lux@F1.2 (S/B)
• Gündüz ve Gece (ICR), DWDR, SSNRIV, Hareket Algılama
• İletim mesafesi Max .500mt
• Kolay kurulum (Plug & Play), Çift güç, RS-485

Video
Imaging Device 1/2.9" 2M CMOS
Total Pixels 2,000(H) x 1,121(V) 2.24M pixels
Effective Pixels 1,984(H) x 1,105(V) 2.19M pixels
Scanning System Progressive scan
Min. Illumination Color : 0.04Lux (F1.2)
B/W : 0.004Lux (F1.2)
S / N Ratio 52dB (AGC off, Weight on)
Video Output BNC (AHD, CVBS selectable)
Resolution 1920 x 1080
Max. Framerate 30fps@1080p, 30fps@720p
Lens
Mount Type C / CS
Operational
On Screen Display English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,
Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Camera Title Off / On (Displayed 15 characters)
Day & Night Auto (ICR) / External / Color / B/W
Backlight Compensation Off / User BLC / HLC
Wide Dynamic Range DWDR
Digital Noise Reduction SSNRIV (Off / On)
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones)
Privacy Masking Off / On (4 zones rectangle)
Gain Control Off / Low / Middle / High
White Balance ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
Electronic Shutter Speed 1sec ~ 1/12,000sec
Reverse Off / H-Rev / V-Rev / HV-Rev
Profile Basic, Day & Night, Backlight, Indoor, User
Alarm (MD) output 1, External D/N 1
Remote Control Interface Coaxial control, RS-485
Protocol Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE
Video Transmission Distance 500m (1,640.42ft) (75-5 coaxial cable)
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Electrical
Input Voltage / Current Dual (24V AC & 12V DC ±10%)
Power Consumption Max. 3.5W
Mechanical
Color / Material Black, Ivory / Aluminum, Plastic
Dimensions (WxHxD) 68.4 x 59.6 x 92.7mm (2.69" x 2.35" x 3.65")
Weight 175.5g (0.39 lb)
