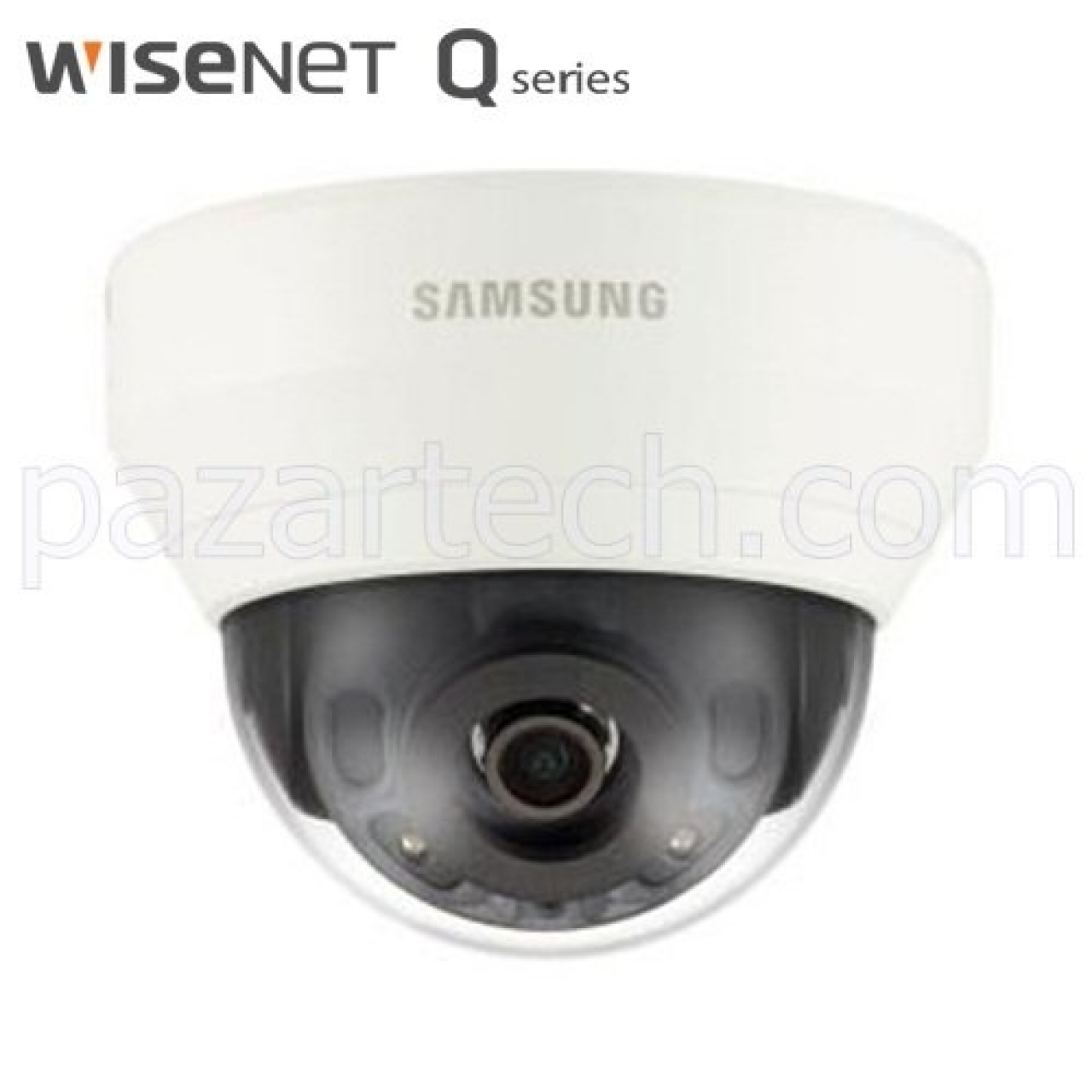

SAMSUNG QND-7010RP 4MP 2.8mm Sabit,PoE, IR IP DOME KAMERA

Stok Kodu

QND-7010RP

Markası

SAMSUNG
Kargo Bedava

Fiyatı Sorunuz

KARGO BİLGİSİ
Şimdi sipariş verirseniz ürün 3gün içinde kargoya verilecektir.
ANLAŞMALI FİRMALAR

Standart

Sepete Ekle Hemen Al

STOK BELİRTİLMEDİ

STOK SORGULAMA İÇİN TIKLAYINIZ.

MÜŞTERİ TEMSİLCİLERİYLE İLETİŞİME GEÇİNİZ

  • TELEFON

    -

Yukarıdaki bağlantılara tıklayarak stok hakkında bilgi talep edebilirsiniz.

  • Ürün Özellikleri
  • Ürün Yorumları
  • Kargo ve Ödeme

SAMSUNG QND-7010RP 4MP 2.8mm Sabit,PoE, IR IP DOME KAMERA

• Max. 4Megapiksel resolution
• Built-in 2.8mm fixed lens (QND-7010R)
3.6mm fixed lens (QND-7020R)
6mm fixed lens (QND-7030R)
• Max. 20fps@4M, Max. 30fps@under 2M (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• micro SD (128GB) memory slot, PoE / 12V DC
• IR viewable length 20m, IK08
• Hallway view, WiseStream support
• LDC support (Lens Distortion Correction)

Video
Imaging Device 1/3" 4M CMOS
Total Pixels 2,720(H) x 1,536(V)
Effective Pixels 2,688(H) x 1,520(V)
Scanning System Progressive
Min. Illumination Color : 0.5Lux (QND-7010R), 0.4Lux (QND-7020R), 0.3Lux (QND-7030R)
B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 2.8mm fixed (QND-7010R), 3.6mm fixed (QND-7020R), 6mm fixed (QND-7030R)
Max. Aperture Ratio F2.2
Angular Field of View
H : 110.0˚ / V : 63.0˚ / D : 128.0˚ (QND-7010R)
H : 81.0˚ / V : 45.0˚ / D : 95.0˚ (QND-7020R)
H : 53.0˚ / V : 31.0˚ / D : 62.0˚ (QND-7030R)
Lens Type Fixed
Mount Type Board type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 350° / 0° ~ 67° / 0° ~ 355°
Operational
IR Viewable Length 20m (65.62ft)
Camera Title
Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
Alarm I/O Input 1 / Output 1
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error,
Alarm input, Defocus detection
Alarm Events File upload via FTP and E-mail, Local storage recording at event,
Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
Resolution
2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024,
1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 720 x 480,
640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 20fps at 4M, Max. 30fps at under 2M
MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Built-in mic
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,
DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,
QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage
micro SD/SDHC/SDXC max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungarian, Greek
Web Viewer
Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Vandal Resistance IK08
Electrical
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7W (PoE), Max. 5.8W (12V DC) : QND-7010R
Max. 6.5W (PoE), Max. 5.43W (12V DC) : QND-7020R/7030R
Mechanical
Color / Material Ivory / Plastic
Dimensions (WxH) Ø110.0 x 86.0mm (Ø4.33" x 3.39")
Weight 290g (0.64 lb)
