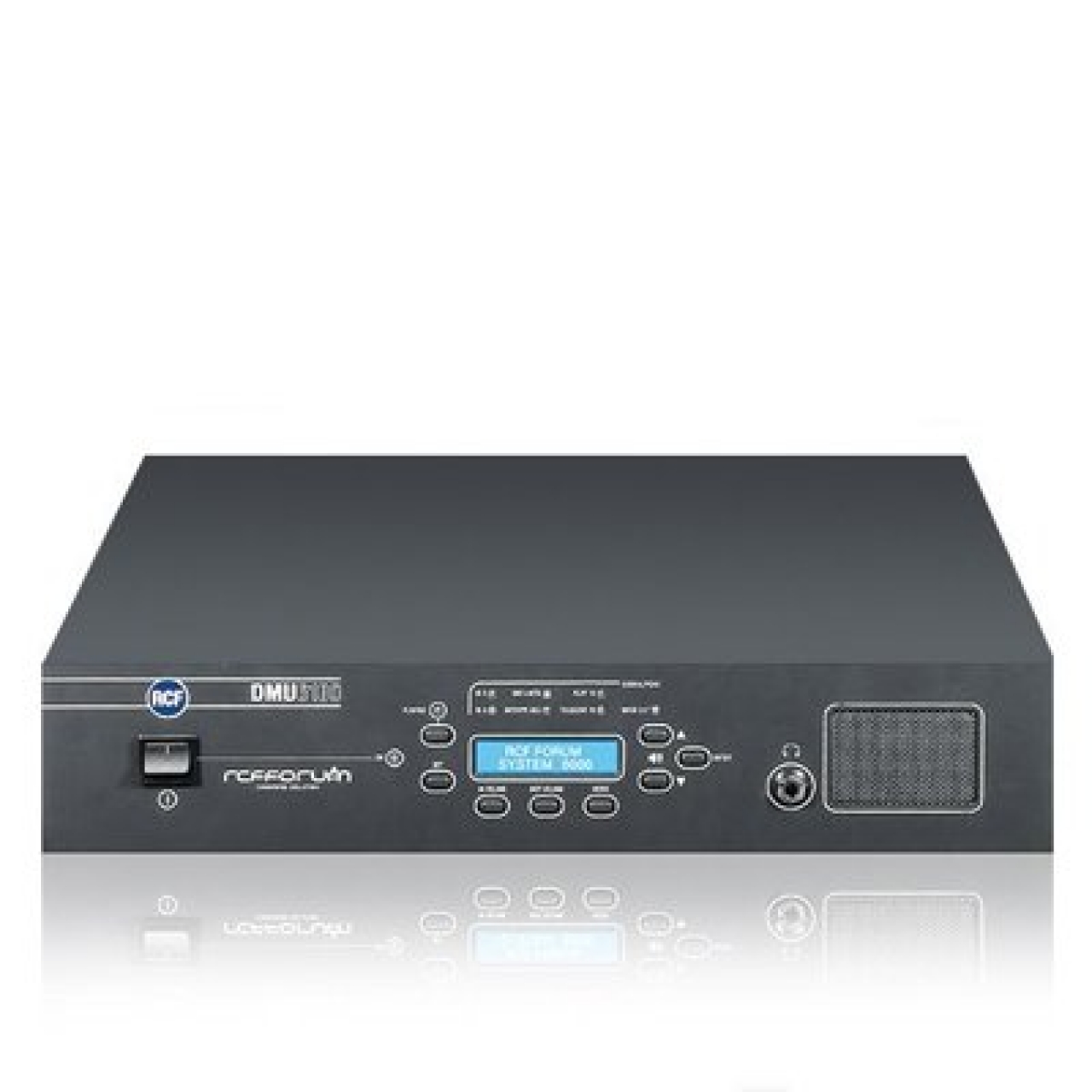

RCF DMU-6100 Dijital Konferans Verici Ünitesi

RCF DMU-6100 Dijital Konferans Verici Ünitesi Features Up to 180 DMS 6410 microphone consoles on 6 lines (4 line outputs are on the DEC 6104 board) The further 120 consoles shall be powered by the DPS 6202 power supply unit USB port to connect the system to a PC FORUM 6000 control software included RS 485 port (alternative to the USB port) for long distance control (up to 1.2 km) of the system through the PC software Anti-feedback processor, useful to avoid feedbacks due to loudspeakers too close to microphones, loudspeaker high volume and many open microphones at the same time.   PLAY INPUT Input level :- 4 (nominal) ; +11 (max) dBu Input impedance:20 KΩ Frequency Response:50 ÷ 20 Hz ÷ kHz Signal / noise ratio:dBA 85 REMOTE CONTROL USB interface:USB 2.0 full speed RS 485 interface:35 ÷ 100 Mbit/s ÷ Kbit/s OUTPUT SECTION Output level:-7 (nominal) ; +10 (max.) dBu (3 ÷ 6 output) Output impedance:100 Ω POWER REQUIREMENT Max. voltage:48 V dc Max-current:1.5 A per each line with 30 consoles PHISICAL SPECIFICATION Width:430 / 16.93 mm/inch Height:88 / 3.46 mm/inch Depth:310 / 12.20 mm/inch Net Weight:5.65 / 12.46 Kg/Lbs SHIPPING INFORMATION Package height:135 / 5.31 mm/inch Package width:510 / 20.07 mm/inch Package depth:385 / 15.15 mm/inch Shipping Weight:7.73 / 17.04 Kg/Lbs
