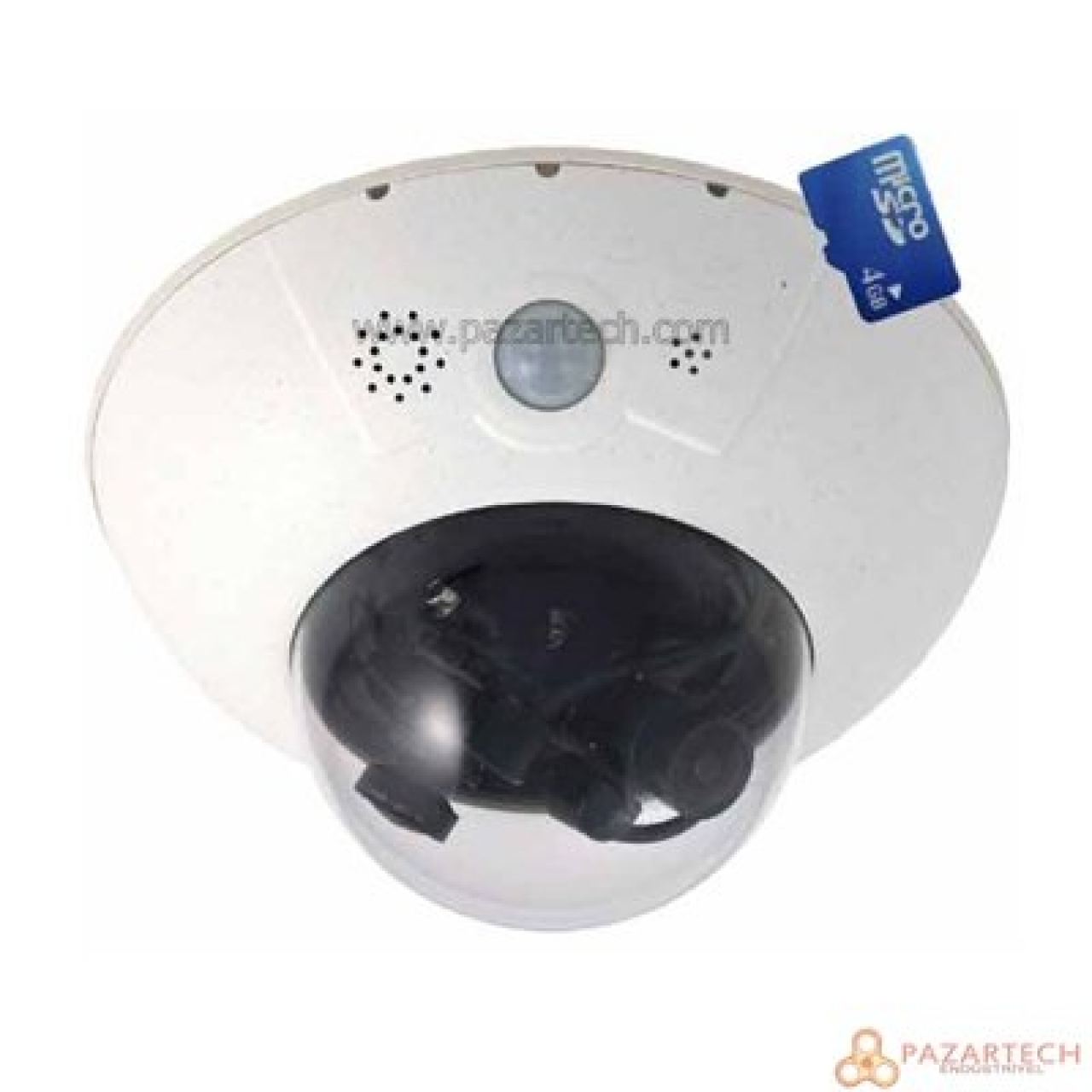

MOBOTIX D15 DualDome 5MP 2x1/2.5" CMOS IP Kamera

Models

IT, Sec, Sec-Pano

Lenses

25 to 160 mm format, horizontal angle 82° to 13°

Sensitivity

Color: 0.25 lux (t=1/60 s), 0,013 lux (t=1/1 s) B/W: 0.05 Lux (t=1/60 s), 0.0025 Lux (t=1/1 s)

2 Sensors

2 x 1/2.5" CMOS, progressive scan

Max. image resolution

Sec: 4096 x 1536 (6MEGA), IT: 2560 x 720

Image format

Free image format selection, e.g. 2048 x 1536, 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 768 x 576 (D1), 704 x 576 (TV-PAL), 640 x 480, 384 x 288, 352 x 288, 320 x 240, 160 x 120

Max. frame rate (M-JPEG) (Live/Recording)

VGA: 30 fps, Mega: 10 fps, 3Mega: 4 fps, 6MEGA: 2 fps

Max. Video stream (MxPEG) (Live/Recording/Audio)

VGA: 30 fps, Mega: 30 fps, 3Mega: 20 fps, 6MEGA: 8 fps

Image compression

MxPEG, M-JPEG, JPG, H.264 (Video-VoIP-Telephony)

Internal DVR

MicroSD card (up to 64 GB)

External storage

Directly on NAS and PC/Server without additional recording software

Software (inclusive)

Video-Management-Software MxEasy, Control room software MxControlCenter

Image processing

Backlight compensation, automatic white balance, image distortion correction, video sensor (motion detection)

Virtual PTZ

Digital Pan/Tilt/Zoom, continuous 8x zoom

Alarm/Events

Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm, pre- and post-alarm images

Audio

Integrated microphone and speaker, lip-synchronous audio, two-way speaker, audio recording

Interfaces

Ethernet 10/100, MiniUSB, MxBus

Audio/Telephony

VoIP, SIP, two-way speaker, event notification

Security

User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection

Certificates

EMV (living environments, industry), CE, FCC

Power supply

Year-round Power over Ethernet (IEEE 802.3af) variable PoE class, typ. 4.5 W

Operating conditions

IP65 (with wall mount; w/o wall mount IP54) acc. to DIN EN 60529, -30 bis +60 °C (-22 to +140°F)

Dimensions

Ø x H: 205 x 108 mm (D14D), 205 x 125 mm (D14D-Pano), weight: ca. 750 g (with lenses)

Standard delivery

Housing (high-resistance composites - PBT-PC), white, shockproof polycarbonate dome (transparent), free choice of 2 lens modules, mounting parts, allen wrench, patch cable, manual, software, 4GB MicroSD card

Fiyat için iletişime geçiniz.
