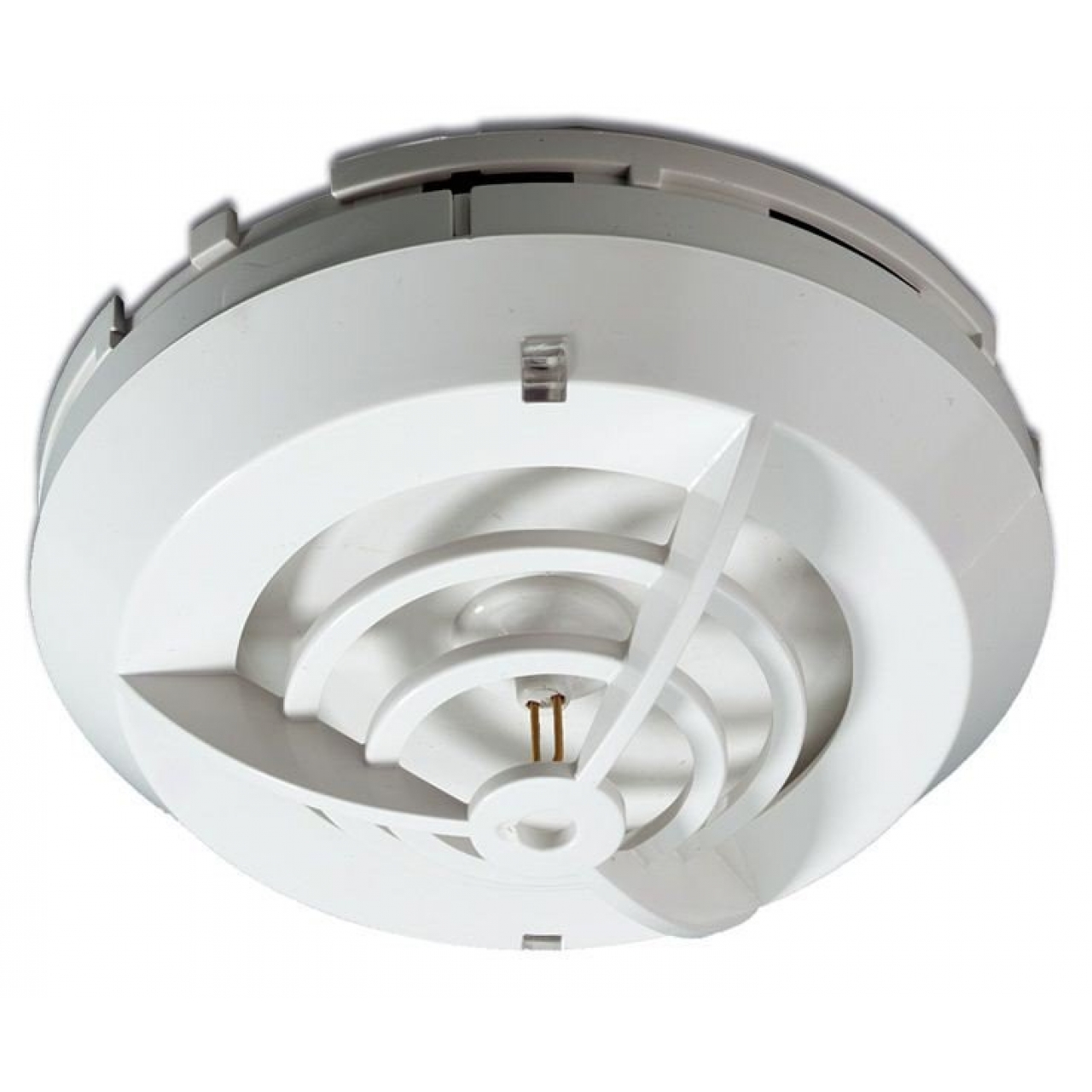

Kilsen KL710A Adresli Isı Dedektörü

Isı Dedektörü

Uzaktan sinyalleme

Kolay adresleme

SMD Teknolojisi

Düzgün iletişim protokolü

Arıza testi

EN54 onaylı

Specifications

Operating voltage 18 to 28 VDC

Current consumption

Quiescent at 24 VDC 70 microA

Alarm at 24 VDC < 100 mA

Radio-active source NA

Average activity NA

Remote alarm output < 100 mA

Heat specification Class A2R (60°C and 8°C/min)

Operating temperature -10 °C to +70 °C

Storage temperature -10 °C to +80 °C

Humidity (non-condensing) 95%

IP rating IP42

Number of detectors per zone 20

Dimensions (h x Ø)

Head 45 mm x 99 mm

Approvals* EN54 (BOSEC)

• Check current status with local office
