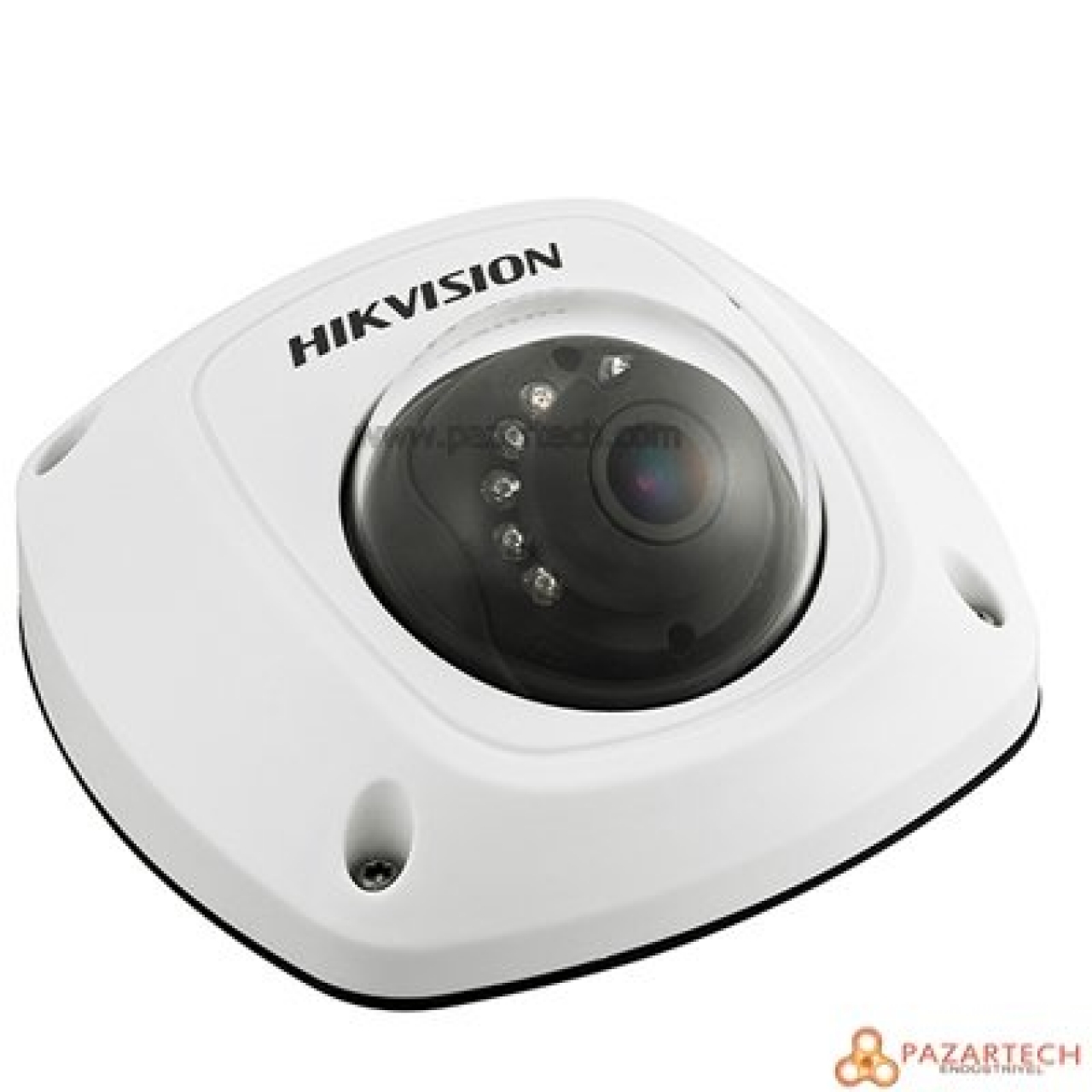

HAIKON DS-2CD2512F-IWS 1.3MP WIFI IR 2.8mm Lens, Mini Dome Kamera

Model DS-2CD2512F-IWS
Çözünürlük 1/3 progressive scan CMOS
Video Sıkıştırma H.264/M-JPEG
Lens 2.8mm
Minumum Işık Gereksinimi 0.19 lux@ F2.0, AGC on 0 lux with IR
Sayısal Zoom -
Ses -
Dahili Mikrofon Yok
Pan/Tilt Kontrol Yok
Dış Ortam Kullanımı -
PoE Ozelliği PoE (802.3af)
Wireless Var
ONVIF Desteği Var
3GPP -
UPnP -
Erişim Protokolleri TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP
Garanti 2 Yıl

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time: 1/25(1/30) s to 1/100,000 s
Lens: 4mm@ F2.0 (2.8mm, 6mm optional)
Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm)
Lens Mount: M12
Adjustment Range: Pan: -30°-30°, Tilt: 0~75°, Rotation: 0-360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/M-JPEG
Bit Rate: 32 Kbps ~ 16 Mbps
Audio Compression: -S: G.711/G.726/MP2L2
Dual Stream: Yes
Max. Image Resolution: 1280x960
Frame Rate: 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576),
30 fps (640 x 480)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Yes, up to 4 configurable areas
Network
Network Storage: NAS
Alarm Trigger: Motion detection, Tampering alarm
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: User Authentication, Watermark, IP address filtering, anonymous access
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Reset Button: Yes
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5 W
Impact Protection: IEC60068-275Eh, 50J; EN50102, up to IK08
Weather Proof: IP66
IR Range: 10 meters
Dimensions: 99.3×96.7×52.8
Weight: 600g (1.32 lbs)
