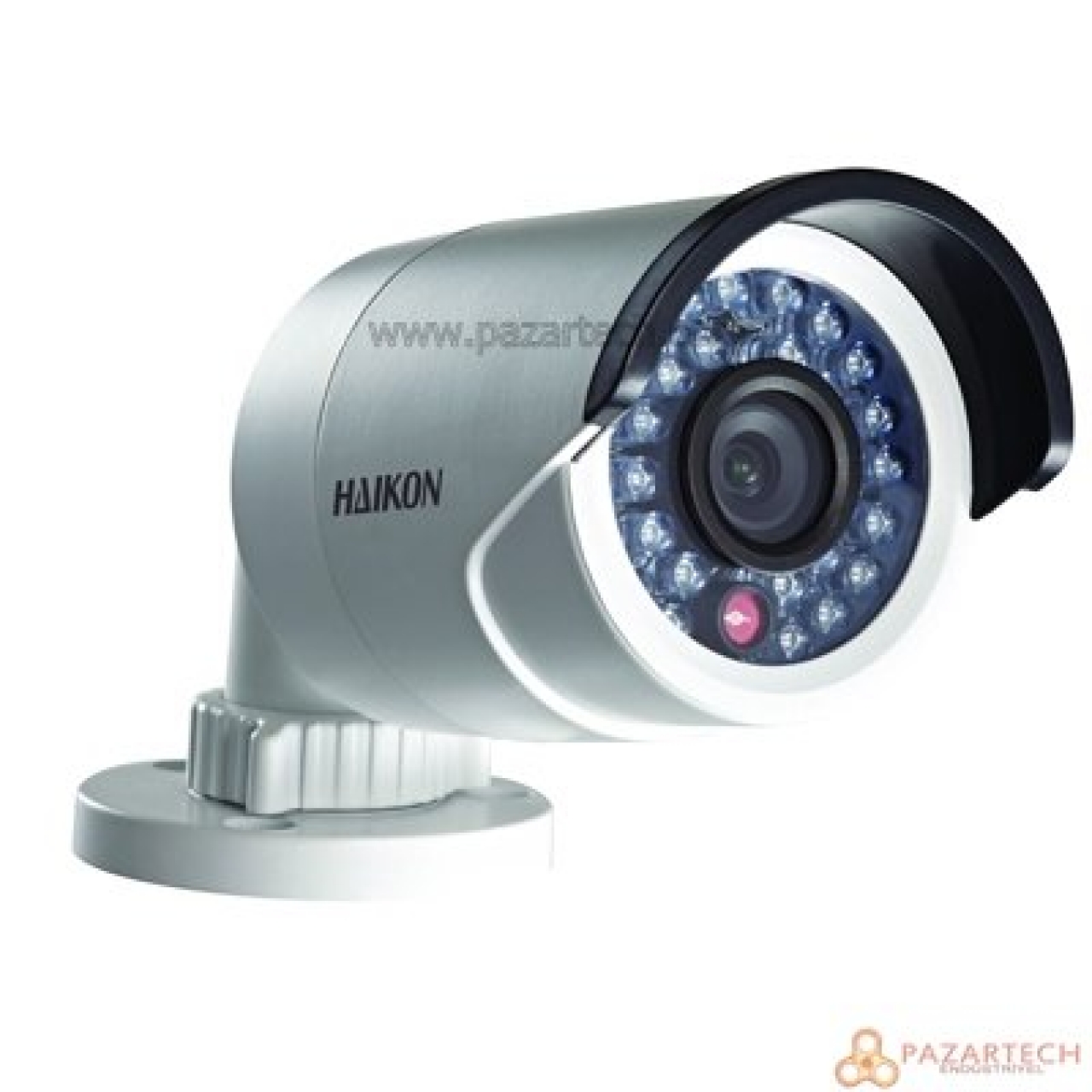

HAIKON DS-2CD2012-I 1.3MP 4mm Mini IR Kamera
Kamera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.01 lux @F1.2, AGC ON, 0 lux with IR
Shutter time: 1/25s ~ 1/100,000s
Lens: 4mm@ F2.0, Angle of view: 73.1°
(6mm, 12mm optional)
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.264/M-JPEG
Bit Rate: 32 Kbps ~ 16 Mbps
Max. Image Resolution: 1280x960
Frame Rate: 50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576),
25 fps (640 x 480)
60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576),
30 fps (640 x 480)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Yes, up to 4 configurable areas
Network
Network Storage: NAS
Alarm Trigger: Motion detection, Dynamic analysis, Tampering alarm
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: User authentication, watermark
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface: 1 RJ45 10M / 100M ethernet interface
Reset Button: Yes
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5 W (Max. 7 W with IR cut filter on)
Weather Proof: IP66
IR Range: Approx 20 to 30 meters(65.6-98.4ft)
Dimensions: 60.4×76.9×139.28 mm (2.4” × 3.0” × 5.5”)
Weight: 500g (1.1 lbs)
Model DS-2CD2012-I
Çözünürlük Max. 1280x960
Video Sıkıştırma H.264/M-JPEG
Lens 4mm
Minumum Işık Gereksinimi 0.01 lux @F1.2, AGC ON, 0 lux with IR
Ses Yok
Dahili Mikrofon Yok
Dış Ortam Kullanımı Var
PoE Ozelliği Var
Wireless Yok
ONVIF Desteği Var
Erişim Protokolleri TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNM
Garanti 2 Yıl
