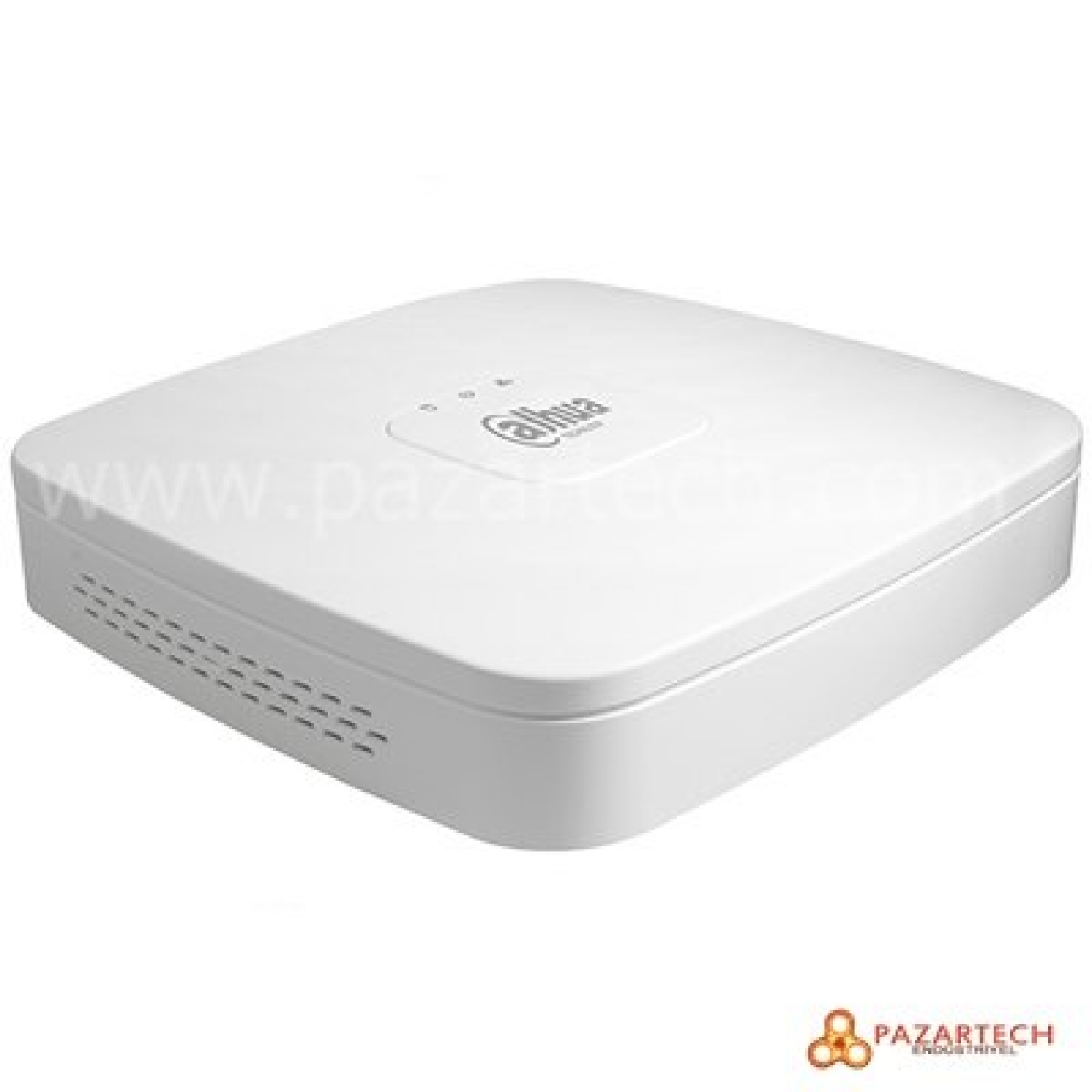

DAHUA NVR1108-P 8 Kanal 4 Poe NVR Kayıt Cihazı

> 8 kanal IP kamera girişi

> H.264 / MJPEG çift codec

> Max 56Mbps bant genişliği

> HDMI / VGA video çıkışı aynı anda

> Tüm kanal senkron playback gerçek zamanlı, GRID arayüzü

> Farklı Kamera Markalarına Destek : Dahua, Arecont Vision, AXIS, Bosch, Brickcom Canon CP Artı, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek vb

> ONVIF Sürüm 2.3 uygunluğu

> Dahua PTZ kamera ile> 3D akıllı konumlandırma

> 1x SATA HDD 4TB , 2xUSB2.0

> Web görüntüleyici, CMS (DSS / PSS Akıllı) DMSS

> IPC UPnP, 4PoE port Desteği

> P2P, QR code Desteği

System

Main Processor Dual-core embedded processor

Operating System Embedded LINUX

Video & Audio

IP Camera Input 8 channel

Two-way Talk 1 channel Input,1 channel Output, RCA

Display

Interface 1 HDMI, 1 VGA

Resolution 1920×1080, 1280×1024, 1280×720, 1024×768

Display Split 1/4/8/9

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression H.264/MJPEG

Resolution 1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480) & etc.

Record Rate Max 56Mbps

Bit Rate 48~8192kbps

Record Mode Manual, Schedule(Regular(Continuous), MD), Stop

Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection

Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips

Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Playback & Backup

Sync Playback 1/4/9

Search Mode Time/Date, MD & Exact search (accurate to second), Smart search

Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode USB Device/Network/Internal SATA burner

Network

Ethernet 1RJ-45 port (10/100Mbps)

PoE 4 ports (IEEE802.3af/at)

Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Dahua IP camera, DVR, NVS and etc.),SNMP, P2P

Max User Access 128 users

Smart Phone iPhone, iPad, Android

Storage

Internal HDD 1 SATA port, up to 4TB

Auxiliary Interface

USB 2 ports (2 Rear), USB2.0

General

Power Supply Single, DC48V/1.25A

Power Consumption NVR: 10W (without HDD)

PoE: Max 25.5W (Single port)

Working Environment -10°C~+55°C/10%~90%RH/86~106kpa

Dimension (W×D×H) Smart 1U, 205mm×205mm×45mm

Weight 500g (without HDD)
