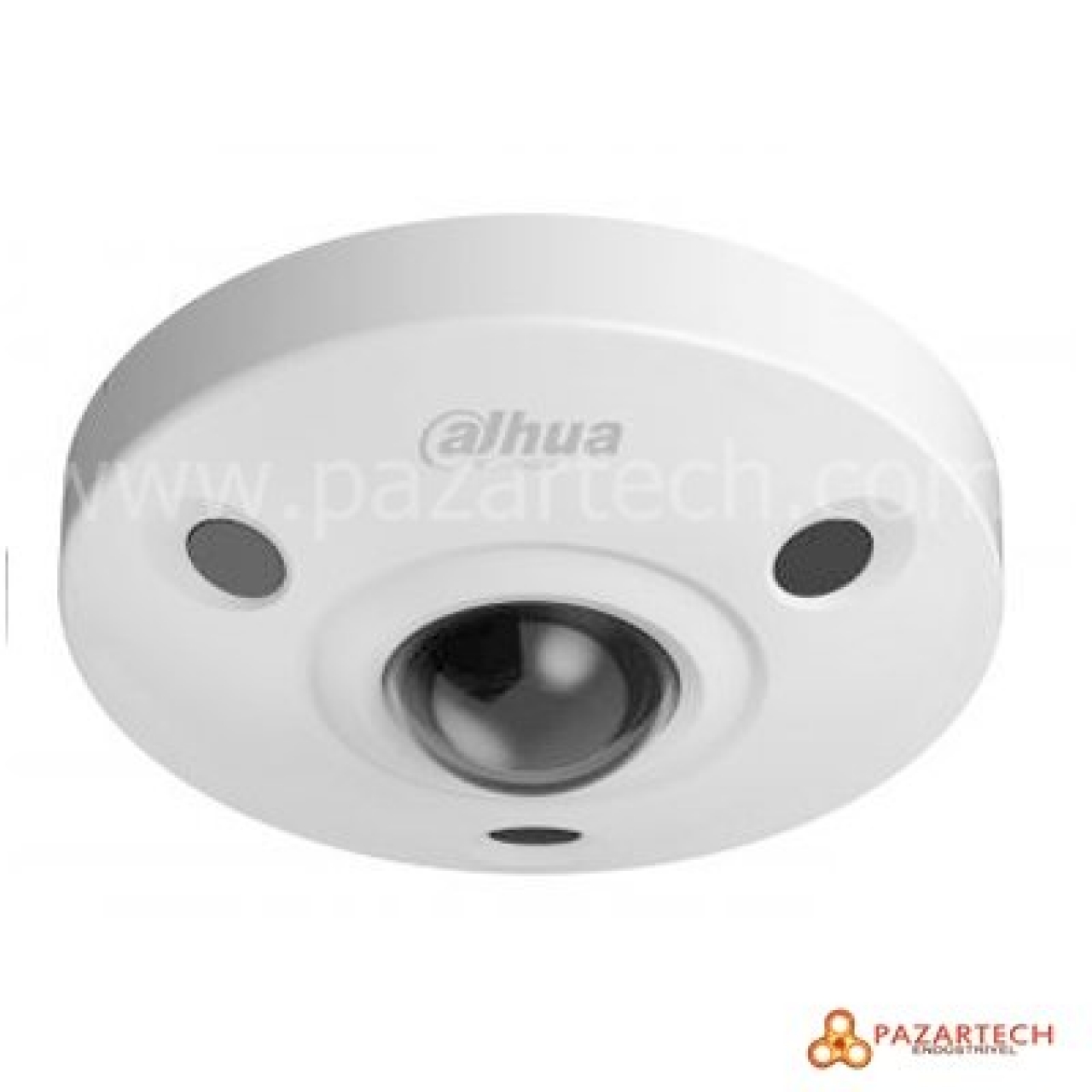

DAHUA IPC-EBW81200 12 MP Ultra HD Vandal-proof IR Fisheye Kamera

DAHUA IPC-EBW81200 DEMO GÖRÜNTÜ

   Ürün Özellikleri

DAHUA IPC-EBW81200 12 MP Ultra HD Vandal-proof IR Fisheye Kamera

DAHUA IPC-EBW81200 DEMO GÖRÜNTÜ

>1/2.3” 12M progressive scan CMOS

>H.264 &MJPEG dual-stream encoding

>Max 15fps@12M(4000x3000), 25/30fps@3M(2048x1536)

>Multiple Correct Mode:Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures

>DWDR, Day/Night(ICR), 3DNR,ROI, AWB, AGC, BLC

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

>Max.IR LEDs Length 10m

>1/1 Audio in/out(Built in Mic)

>Micro SD memery,IP67,IK10,PoE

Camera

Image Sensor 1/2.3” 12M progressive scan CMOS

Effective Pixels 4000（H）*3000（V）

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3~1/10000

Min. Illumination 0.01Lux/F2.2(Color), 0Lux/F2.2(IR on)

S/N Ratio More than 50dB

Video Output N/A

Camera Features

Max. IR LEDs Length 10m

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC/ HLC/DWDR

White Balance Auto/Manual

Gain Control Auto/Manual

Noise Reduction 3D

Privacy Masking Up to 4 areas

Lens

Focal Length 1.57mm

Max Aperture F2.2

Focus Control Manual

Angle of View 185°/185°/185°

Lens Type Manual

Mount Type Board-in Type

Video

Compression H.264H/MJPEG/JPEG

Resolution 12M(4000×3000)/8M(2880×2880)/6M(2880×2160)/3M(2048×1536)

Frame Rate Main Stream 12M(1~15fps)/3M (1 ~ 25/30fps)

Sub Stream D1/CIF(1 ~ 25/30fps)

Bit Rate 40Kbps~8192Kbps

Correct Mode Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures

Audio

Compression G.711a/G.711u/PCM

Interface 1/1 channel In/Out(Built in Mic)

Network

Ethernet RJ-45 (10/100Base-T)

Wi-Fi N/A

Protocol HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,IPv4/v6,SNMP,QoS,UPnP,NTP

Compatibility ONVIF,PSIA,CGI

Max. User Access 20users

Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot Micro SD

RS485 N/A

Alarm 2/1 channel In/Out

PIR Sensor Range N/A

General

Power Supply DC12V, PoE (802.3af)

Power Consumption <13W

Working Environment -30°C~+60°C, Less than 95%RH

Ingress Protection IP67

Vandal Resistance IK10

Dimensions Φ150mm x 50.7mm

Weight 0.58kg(0.86kg with packaging )
