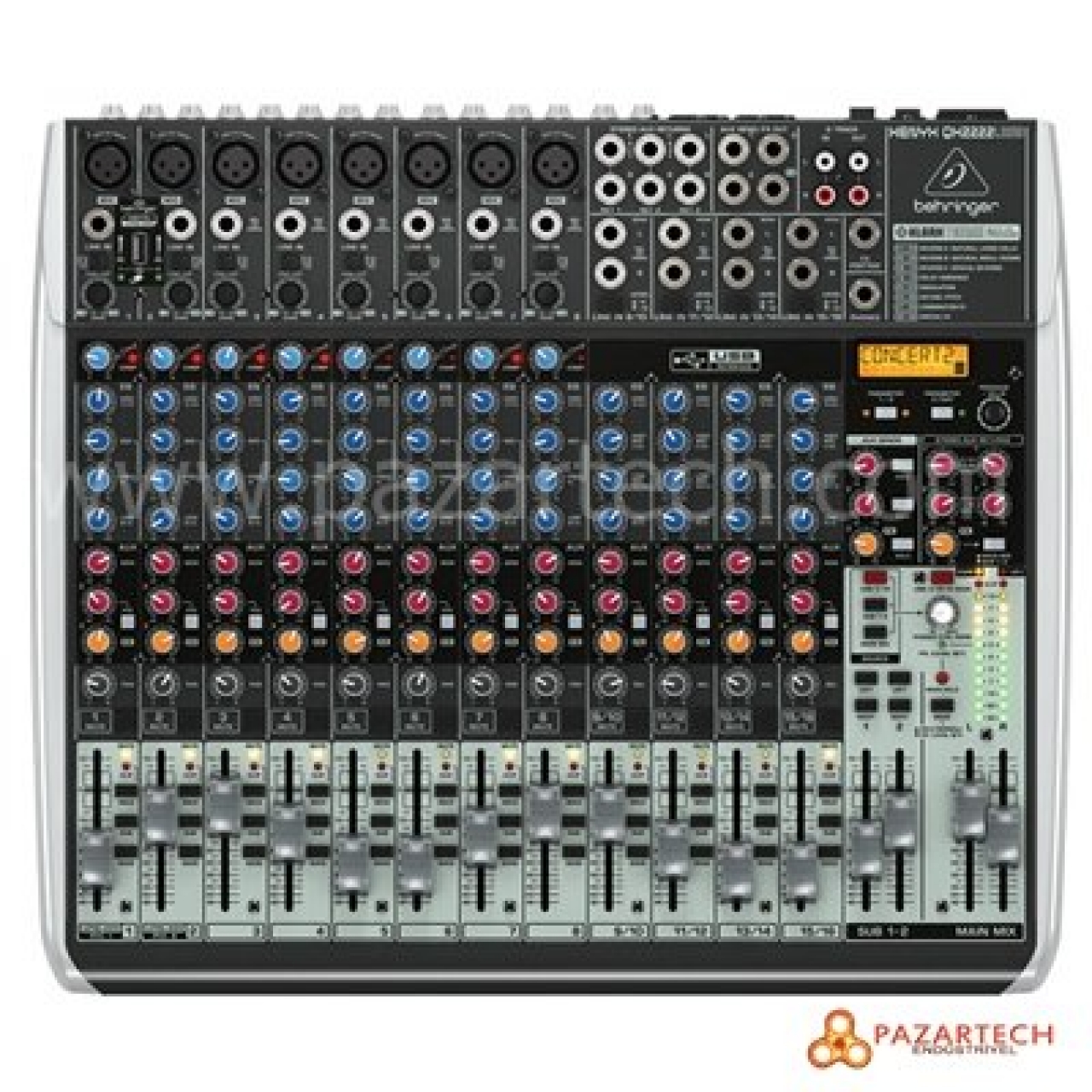

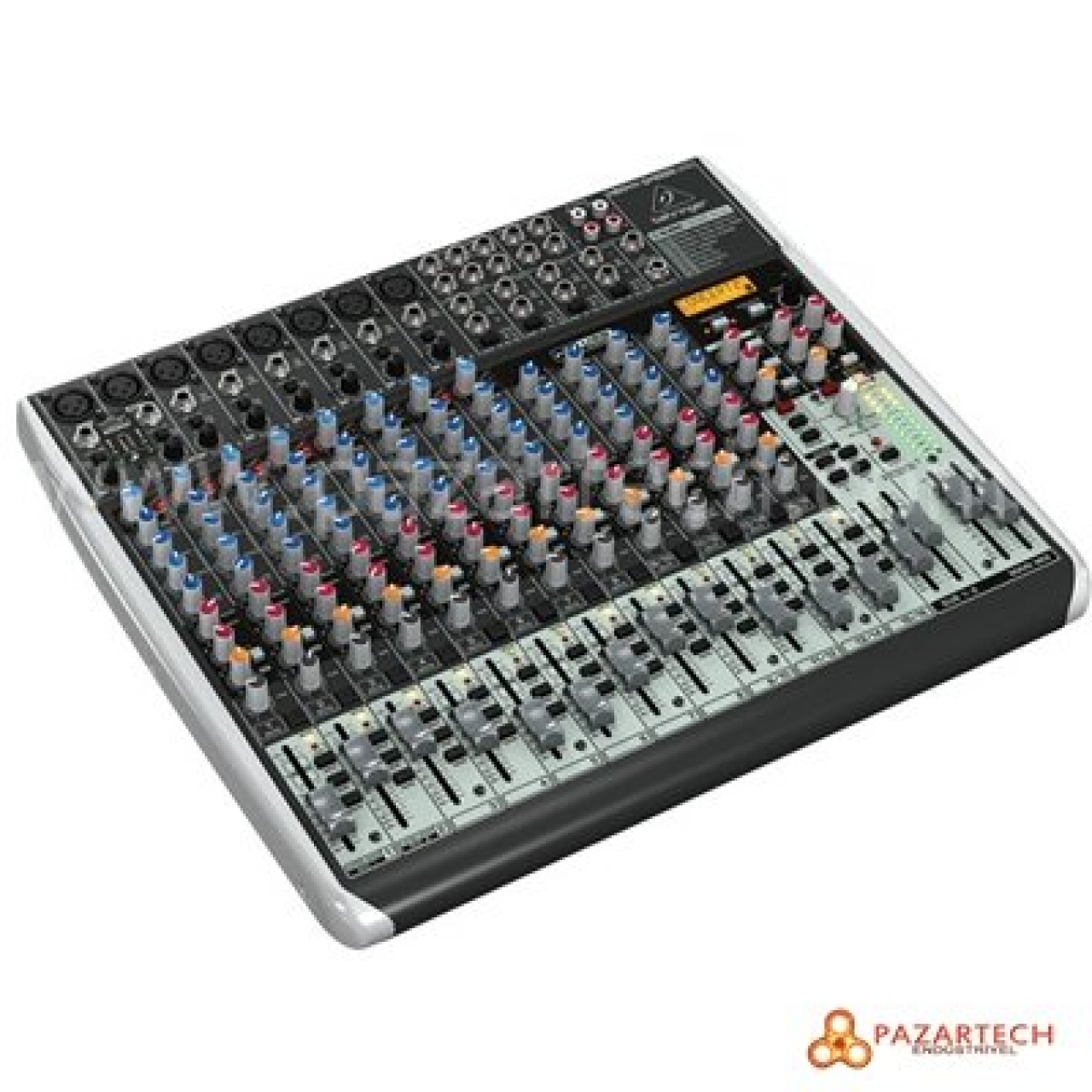

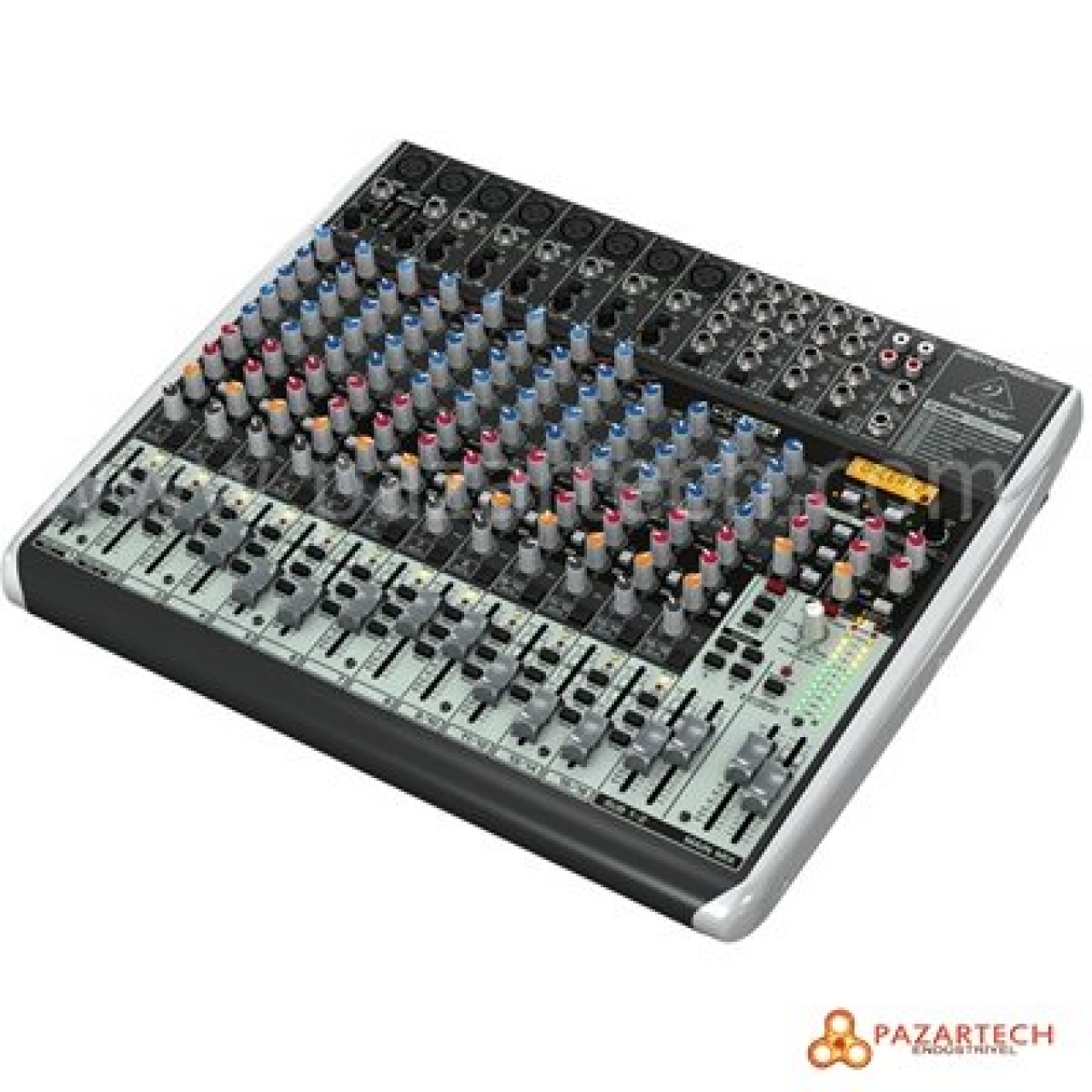

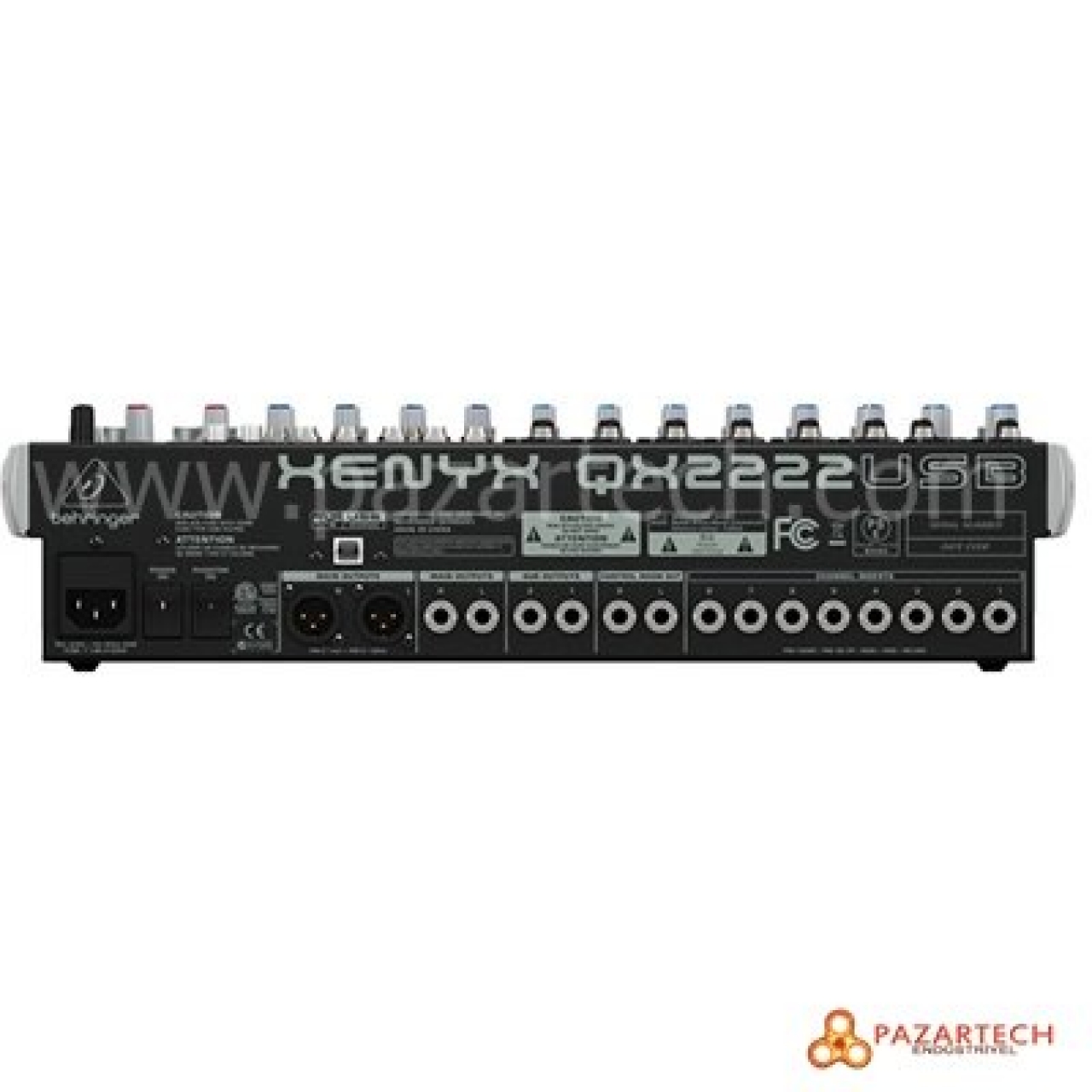

Behringer XENYX QX2222-USB 22 Kanal Mikser
Marka ve Model : Behringer XENYX QX2222USB
Mikrofon Giriş : 8 Kanal
Stereo Kanal : 4 Stereo Kanal
AUX : 4 AUX
Fantom Güç : +48 V
Mono Kanal EQ : 3-band
Stereo Kanal EQ : 4-band
Stereo Grafik EQ : Yok
FX Processor : Klark Teknik Efekt
USB Audio interface : USB Var
Subgroups : 2 Subgroups
Boyutu : 430 x 370 x 90 mm
Ağırlık : 4.7 Kg
Total # Of Inputs 22 inputs
Mic/Line Inputs 8 x XLR microphone inputs
8 x 1/4" TRS line-level inputs
Stereo Line Inputs 4 x 1/4" TRS left & right paired inputs
Aux Sends 3 x 1/4" TRS connector, balanced
AUX Returns 3 x 1/4" TRS connector, balanced
Inserts 4
BUS (Group) Outputs 2 sub groups
2 Trk Master I/O 2 x balanced XLR outputs
2 x 1/4" TRS outputs
ALT I/O 2 x 1/4" TRS sub outputs
stereo RCA 2-track outputs
Monitor Outputs 2 x 1/4" TRS control room outputs
1 x 1/4" stereo headphone output
EQ Section 3-Band EQ with mid sweep on every channel
Solo/Mute Mute and solo buttons on every channel
Channel Level Control 60 mm faders
Trim/Gain Control Yes
Metering 12-Segment stereo LED meters
Clip LEDs on every channel
Microphone Inputs
Type XLR, electronically balanced, discrete input circuit
Mic Input Noise (E.I.N.) 20 to 20,000 Hz
At 0 Ω source resistance: -134 dB / -136 dB A-weighted
At 50 Ω source resistance: -131 dB / -133 dB A-weighted
At 150 Ω source resistance: -129 dB / -131 dB A-weighted
Frequency Response Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 160,000 Hz: ± 3 dB
Dynamic Range Not specified by the manufacturer
Gain Range 10 to 60 dB
Maximum Input Level +12 dBu at +10 dB Gain
Impedance Approximately 2 kΩ balanced
Signal-to-Noise Ratio 106 dB / 108 dB A-weighted (0 dBu In @ +22 dB gain)
Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted
Phantom Power Switchable, +48V
Line Input
Type 1/4" TRS connector, balanced
Impedance Approximately 20 kΩ
10 kΩ unbalanced
Gain Range -10 to +40 dB
Maximum Input Level 30 dBu
Stereo Input
Type 4 x 1/4" TRS connector, balanced
Impedance Approximately 20 kΩ, 10 kΩ
Gain Range -20 to 20 dB
Maximum Input Level 22 dBu
EQ Type Mono Channels Low: 80 Hz, ± 15 dB
Mid: 100 to 8,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB
EQ Type Stereo Channels Low: 80 Hz, ± 15 dB
Low Mid: 500 Hz, ± 15 dB
High Mid: 3,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB
AUX Section
AUX Sends Type: 3 x 1/4" TRS connector, balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu
AUX Returns Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: 22 dBu
Main Outputs XLR, balanced
Impedance: Approximately 240 Ω balanced, 120 Ω unbalanced
Maximum Output Level: 28 dBu
Control Room Outputs Type: 1/4" TS balanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu
Headphone Outputs Type: 1/4" TRS connector, unbalanced
Impedance: 25 Ω
Maximum Output Level: +21 dBu / 150Ω (+25 dBm)
DSP Type: Klark Teknik
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 40 kHz
Wireless USB dongle: Accepts signals from 2 independent Behringer ULM mics
USB Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
Noise Main mix at -∞ with channel fader at -∞: -100 dB / -103 dB A-weighted
Main mix at 0 dB with channel fader at -∞: -85 dB / -88 dB A-weighted
Main mix at 0 dB with channel fader at 0 dB: -78 dB / -80 dB A-weighted
Power Supply
Mains 100 to 240 V, 50/60 Hz
Power Consumption 50 W
Fuse 100 to 240 V: T 1.6 A H 250 V
Connection Standard IEC receptacle
Dimensions (H x W x D) 16.9 x 14.6 x 3.50" (430 x 370 x 90.0 mm)
Weight 10.6 lb (4.80 kg)
Packaging Info
Package Weight 14.05 lb
Box Dimensions (LxWxH) 20.7 x 18.1 x 5.8"
