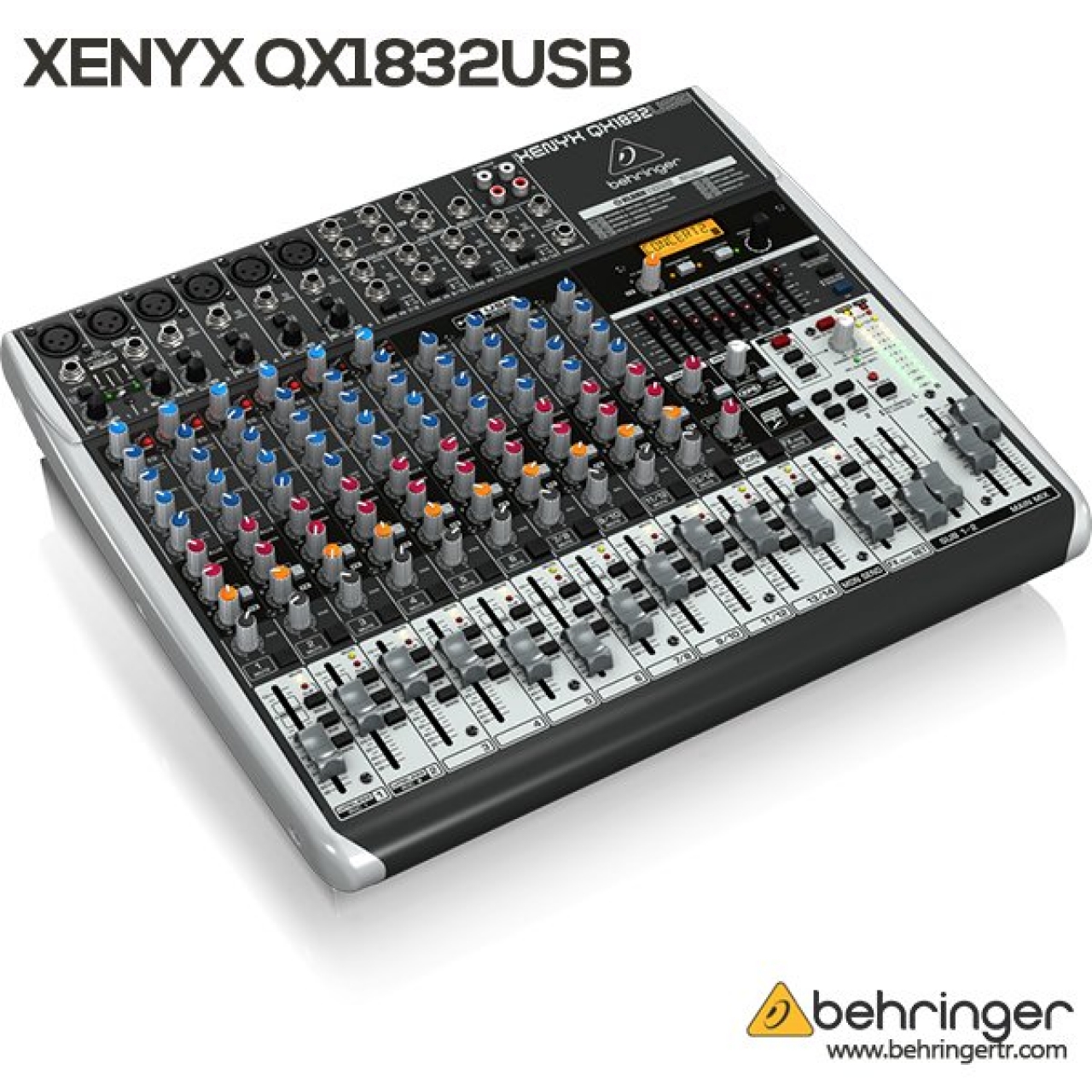

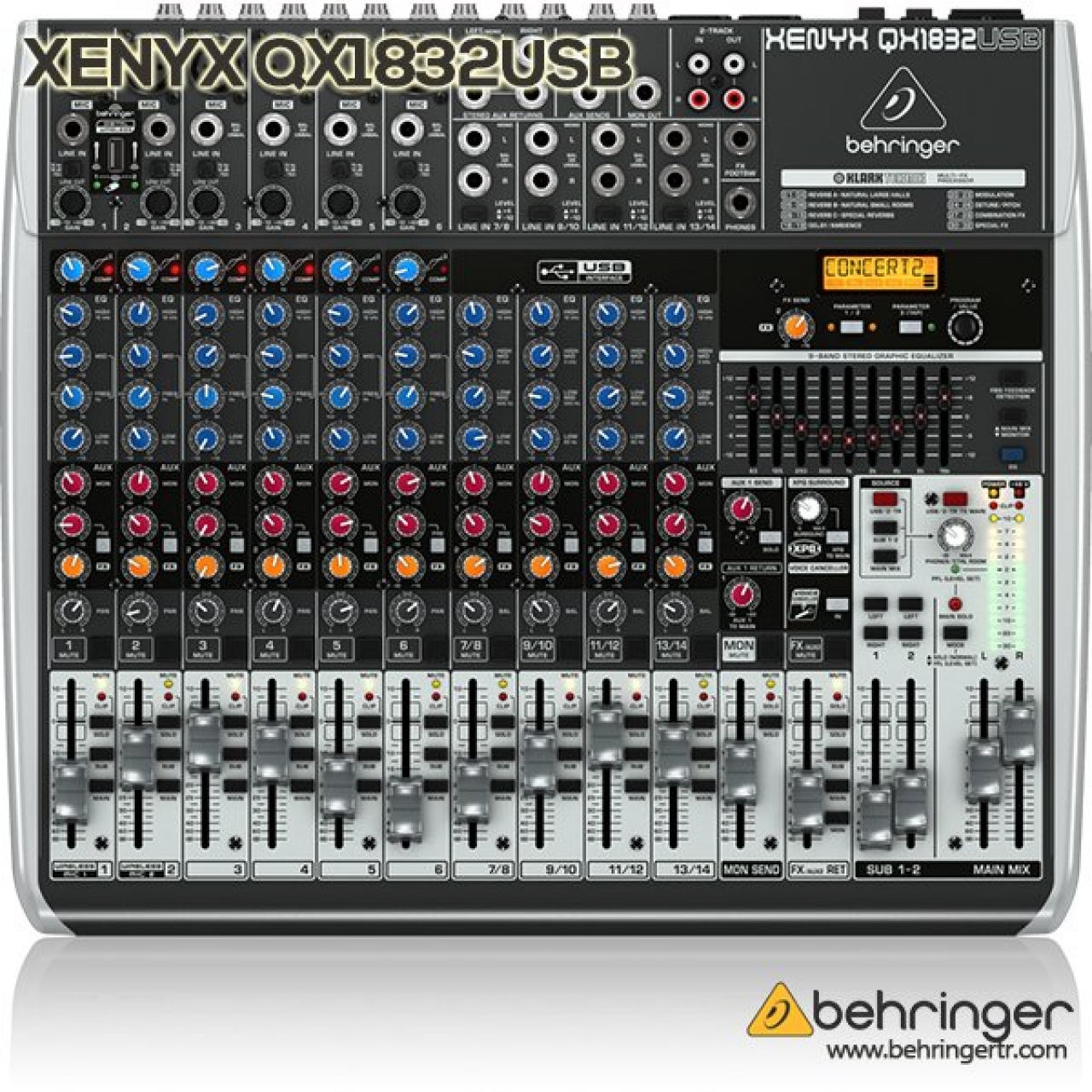

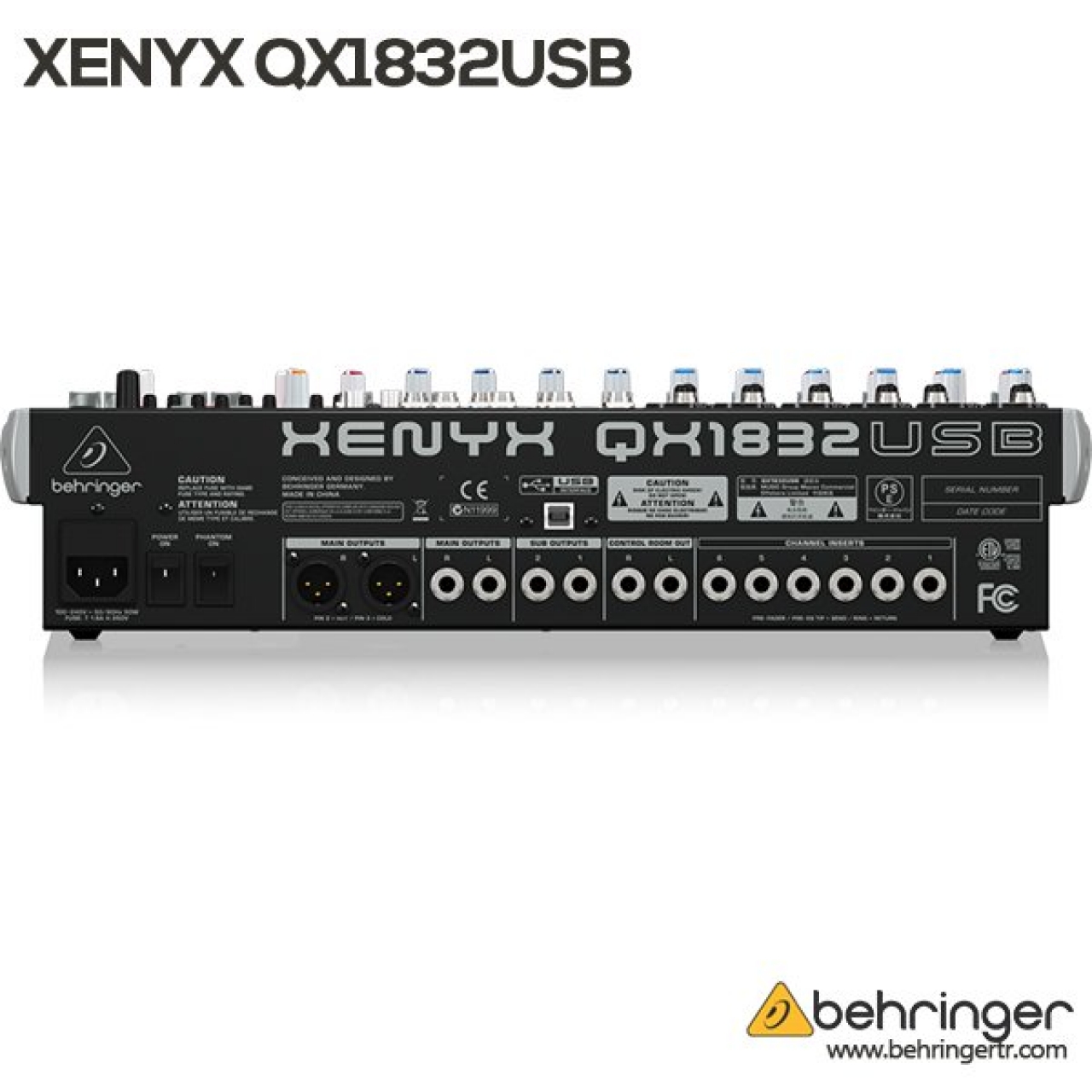

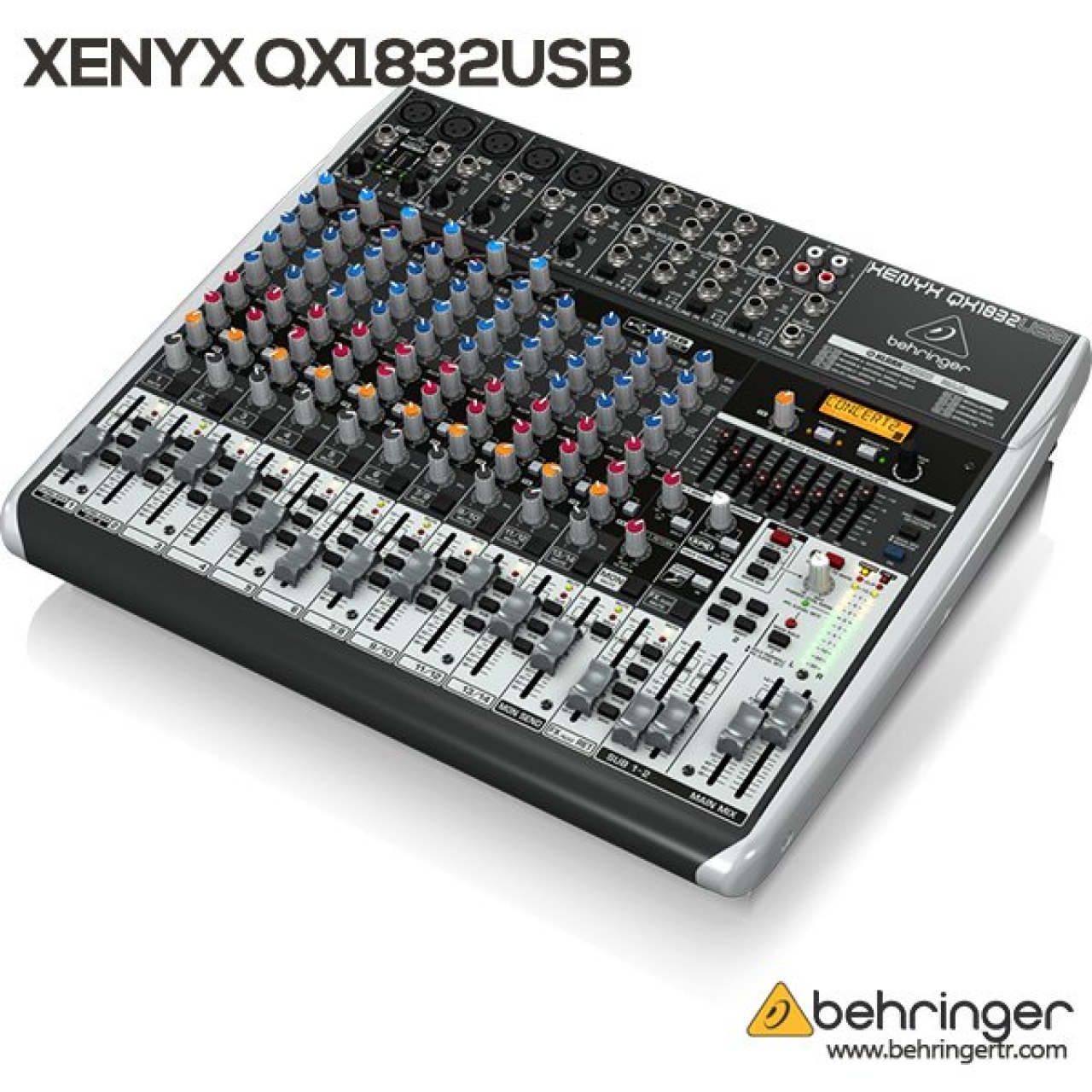

Behringer XENYX QX1832 USB 18 Kanal Ses Mikser

Behringer XENYX QX1832USB 18 Kanal Mikser

Mikrofon/Line Girişi : 6 Kanal
Preamplifikatör : 6 Adet
Stereo Kanal : 4 Stereo Kanal
AUX Çıkış : 3 AUX
Stereo AUX Dönüş : 2 AUX
Fantom Güç :  48 V
Kanal inserts : 6 Kanal
Mono Kanal EQ : 3-band semi-parametic mid
Compressors : 6 Adet
Stereo Kanal EQ : 4-band
Stereo Grafik EQ : 9-band
FBQ : Var
XPQ 3D : Var
Ses Kesme Mute : Var
FX Processor : Klark Teknik Efekt
USB Audio interface : USB Var
Subgroups : Subgroups Yok
Yazılım Desteği : Yazılım Desteği Var
Cihaz Boyutu : 90 x 370 x 430 mm
Ağırlık : 4.64 Kg
Rack Mount : Var

Built-In USB Audio Interface
Easy-to-Use 1 Knob Compressors
"British"-Style 3-Band EQ's
9-Band Stereo Graphic EQ
Full-Size Faders for MON and FX Sends
Stereo Surround Effect
Voice Canceller
energyXT2.5 Music Software Included
Mac, Windows, and Linux Compatible

Total # Of Inputs 18 inputs
Mic/Line Inputs 6 x XLR microphone inputs
8 x 1/4" TRS line-level inputs
Stereo Line Inputs 4 x 1/4" TRS left & right paired inputs
AUX Sends 3
AUX Returns 3 stereo returns
Inserts 4
BUS (Group) Outputs 2 sub groups
2 Trk Master I/O 2 x balanced XLR outputs
2 x 1/4" TRS outputs
ALT I/O 2 x 1/4" TRS sub outputs
stereo RCA 2-track outputs
Monitor Outputs 2 x 1/4" TRS control room outputs
1 x 1/4" stereo headphone output
EQ Section 3-Band EQ with mid sweep on every channel
Graphic EQ 9-Band stereo graphic EQ
Solo/Mute Mute and solo buttons on every channel
Channel Level Control 60 mm faders
Trim/Gain Control Yes
Phantom Power +48 V phantom
Metering 12-segment stereo LED meters
Clip LEDs on every channel

Microphone Inputs
Type XLR, electronically balanced, discrete input circuit
Mic Input Noise (E.I.N.) 20 to 20,000 Hz
At 0 Ω source resistance: -134 dB/135.7 dB A-weighted
At 50 Ω source resistance: -134 dB/133.3 dB A-weighted
At 150 Ω source resistance: -129 dB/130.5 dB A-weighted
Frequency Response Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)

Mic Input to Main Output:
<10 to 90,000 Hz (+0 dB / -1 dB)
<10 to 160,000 Hz (+0 db / -3 dB)
Dynamic Range Not specified by the manufacturer
Gain Range 10 to 60 dB
Maximum Input Level +12 dBu at +10 dB Gain
Impedance Approximately 2.6 kΩ balanced
Signal-to-Noise Ratio 110 dB A-weighted (0 dBu In @ +22 dB gain)
Total Harmonic Distortion (THD) 0.005% / 0.004% A-weighted

Line Input
Type 1/4" TRS connector, electronically balanced
Impedance Approximately 20 kΩ
10 kΩ unbalanced
Gain Range -10 to +40 dB
Maximum Input Level 30 dBu
Crosstalk Main fader closed: 90 dB
Channel muted: 89 dB
Channel fader closed: 89 dB

Stereo Input
Type 1/4" TRS connector, electronically balanced
Impedance Approximately 20 kΩ
Maximum Input Level 22 dBu
EQ Type Mono Channels Low: 80 Hz, ± 15 dB
Mid: 100 to 8,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 dB
EQ Type Stereo Channels Low: 80 Hz, ± 15 dB
Low Mid: 500 Hz, ± 15 dB
Mid: 3,000 Hz, ± 15 dB
High: 12,000 Hz, ± 15 db

AUX Section
AUX Sends Type: 1/4" TS connector, unbalanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu
AUX Returns Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20 kΩ balanced, 10 kΩ unbalanced
Maximum Input Level: 22 dBu
Main Outputs Type: XLR, electronically balanced and 1/4" TRS balanced
Impedance: Approximately 240 Ω symmetrical, 120 Ω unbalanced
Maximum Output Level: 28 dBu
Control Room Outputs Type: 1/4" TS unbalanced
Impedance: Approximately 120 Ω
Maximum Output Level: 22 dBu
Headphone Outputs Type: 1/4" TRS connector, unbalanced
Maximum Output Level: 19 dBu at 150 Ω (+25 dBm)
DSP Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling Rate: 40 kHz
USB Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
Noise Main mix at -∞ with channel fader at -∞: -101 dB
Main mix at 0 dB with channel fader at -∞: -93 dB
Main mix at 0 dB with channel fader at 0 dB: -81 dB

Power Supply
Mains 100 to 240 V, 50/60 Hz
Power Consumption 50 W
Fuse 100 to 240 V 1.6 A H 250 V
Connection Standard IEC receptacle
Dimensions (H x W x D) 3.54 x 13.98 x 16.92" (90 x 355 x 430 mm)
Weight 10.9 lb (4.94 kg)

Packaging Info
Package Weight 13.4 lb
Box Dimensions (LxWxH) 20.7 x 17.4 x 5.9"
