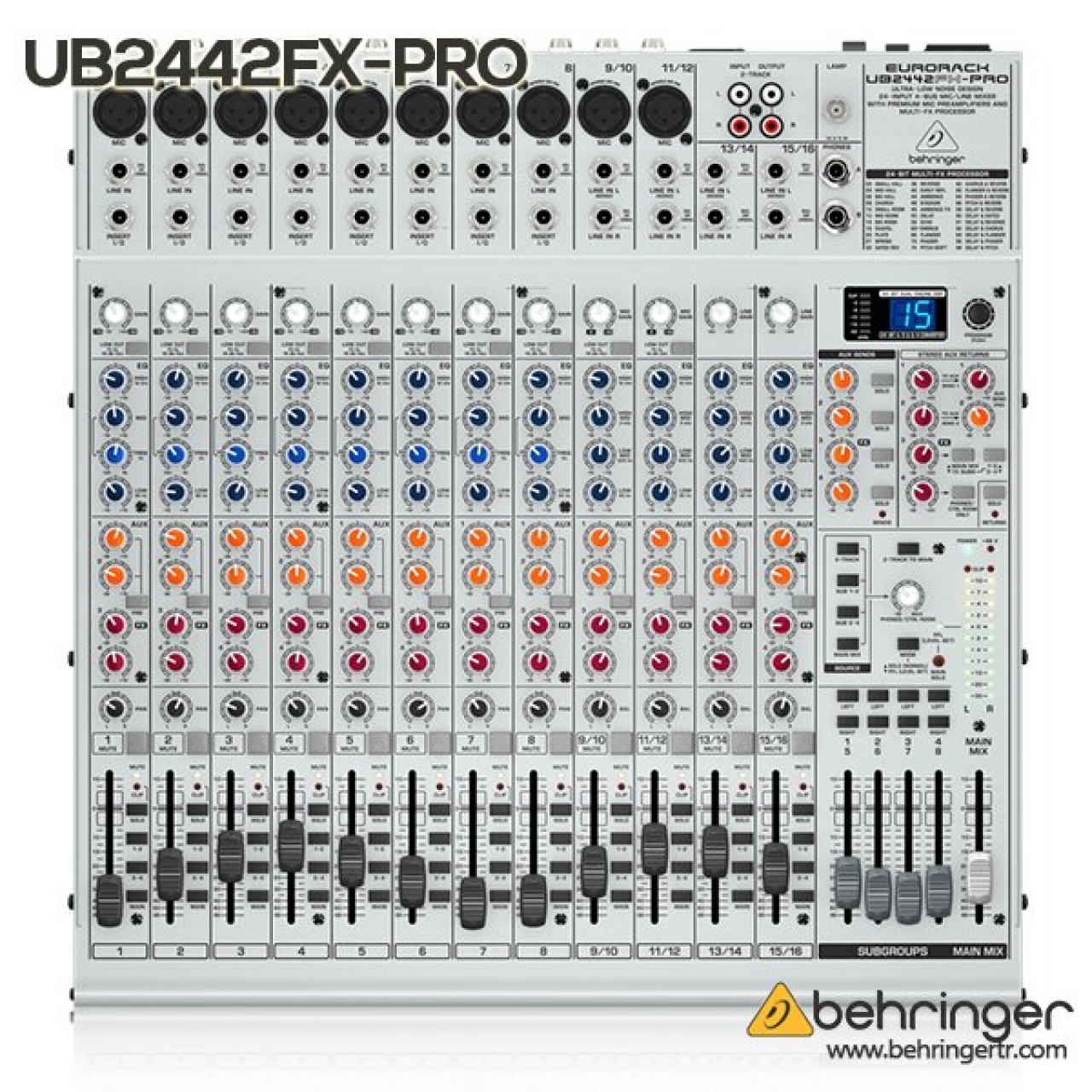

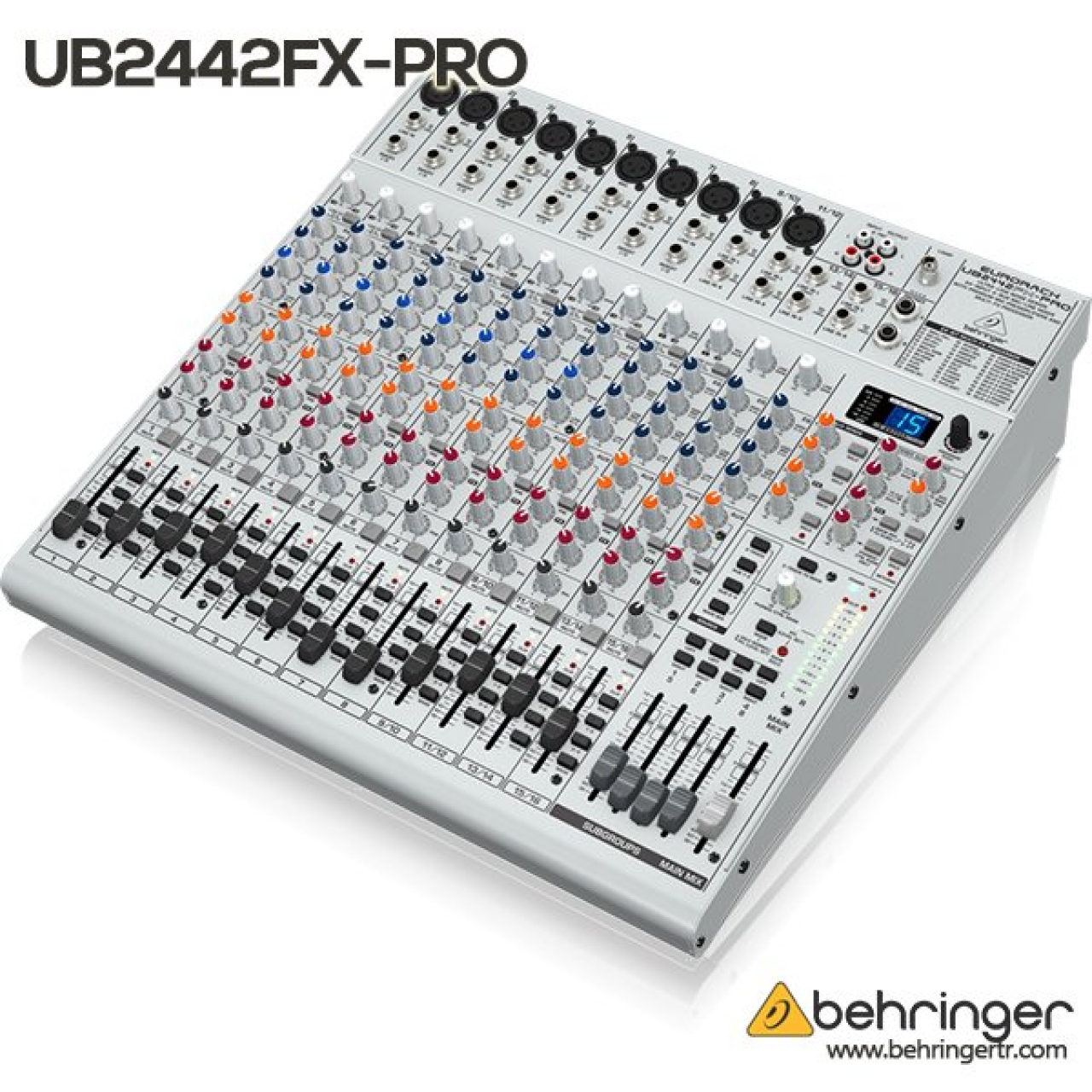

Behringer Eurorack UB2442FX-PRO 24 Kanal Ses Mikseri

Built-in Multi-FX Processor
Low Noise Input Channels x24
Stereo & Subgroup Outputs
Studio Grade IMP Mic Preamps x10
Musical 3-Band EQ Section
Balanced High-Headroom Line Inputs x16
Stereo Inputs with +4 / -10 Level Select
Aux Sends x4
Stereo Aux Returns x4

Inputs Mono Inputs

Microphone Inputs (IMP Invisible Mic Preamp)
Type: XLR, electronically balanced, discrete input circuit

Mic E.I.N. (20Hz - 20kHz)
@ 0 ohms source resistance: -134dB / 135.7dB A-weighted
@ 50 ohms source resistance: -131dB / 133.3dB A-weighted
@ 150 ohms source resistance: -129dB / 130.5dB A-weighted

Frequency response
< 10Hz - 150kHz (-1dB), < 10Hz - 200kHz (-3dB)

Gain range: +10 to +60dB
Max. input level: +12dBu @ +10dB gain
Impedance: approx. 2.6k ohms balanced
Signal-to-noise ratio: 110dB / 112dB A-weighted (0dBu In @ +22dB gain)

Distortion (THD+N): 0.005% / 0.004% A-weighted

Line Input
Type: 1/4" TRS connector electronically balanced
Impedance: approx. 20k ohms balanced, 10k ohms unbalanced
Gain range: -10 to +40dB
Max. input level: 30dBu

Stereo Inputs
Type: 1/4" TRS connector, electronically balanced
Impedance: approx. 20k ohms
Max. input level: +22dBu
Attenuation Fade-out Attenuation (Crosstalk Attenuation)
Main fader closed: 90dB
Channel muted: 89dB
Channel fader closed: 89dB
Frequency Response Microphone input to main out
< 10Hz - 90kHz: +0dB / -1dB
< 10Hz - 160kHz: +0dB / -3dB
EQ Section EQ Mono Channels
Low: 80Hz / ±15dB
Mid: 100Hz - 8kHz / ±15dB
High: 12kHz/ ±15dB

EQ Stereo Channels
Low: 80Hz / ±15dB
Low Mid: 500Hz / ±15dB
High Mid: 3kHz / ±15dB
High: 12kHz / ±15dB
AUX Sends Type: 1/4" TS connector, unbalanced
Impedance: approx. 120 ohms
Max. output level: +22dBu
AUX Returns Type: 1/4" TRS connector, electronically balanced
Impedance: approx. 20k ohms balanced / 10k ohms unbalanced
Max. Input Level: +22dBu

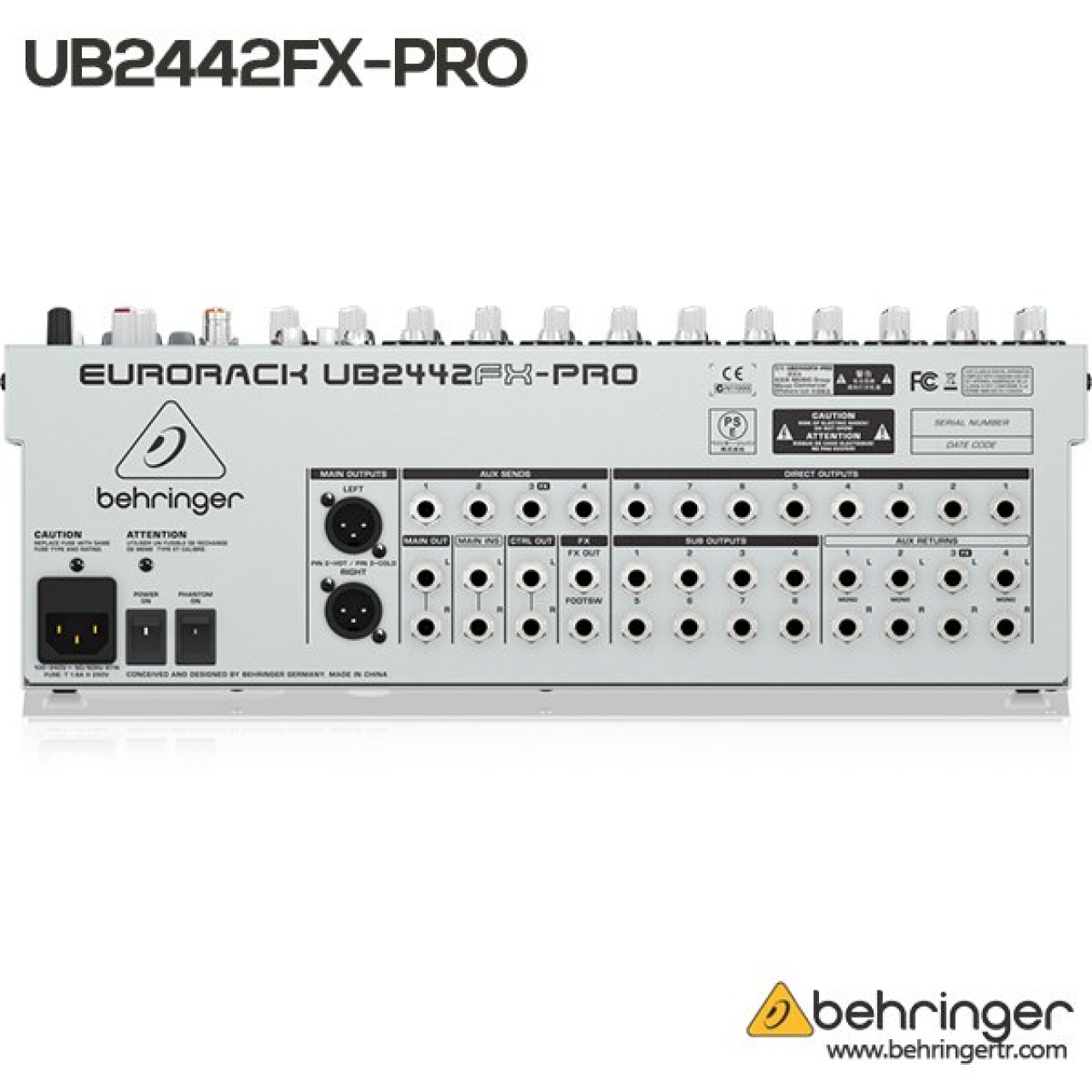

Outputs Main Outputs
Type: XLR, electronically balanced, 1/4" TRS balanced

Impedance: approx. 240 ohms balanced / 120 ohms unbalanced
Max. Output Level: +28dBu

Control Room
Type: 1/4" TS connector, unbalanced
Impedance: approx. 120 ohms
Max. output level: +22dBu

Headphones Output
Type: 1/4" TRS connector, unbalanced
Max. output level: +19dBu / 150 ohms (+25dBm)
DSP 24-bit Texas Instruments
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling Rate: 40kHz
Noise Main mix @ -∞ Channel fader @ -∞ -100dB
Main mix @ -0dB; Channel fader @ -∞ -87dB
Main mix @ 0dB; Channel fader @ 0dB -80dB
Power Supply Mains voltage: 100 to 240 V~, 50/60Hz
Power consumption: 47 W
Fuse: 100-240V~: T 1.6A H
Mains connection: Standard IEC receptacle
Dimensions (HxWxD) 5.3 x 17.3 x 16.5" (135 x 440 x 420mm)
Weight 14.5lb (6.6kg)
