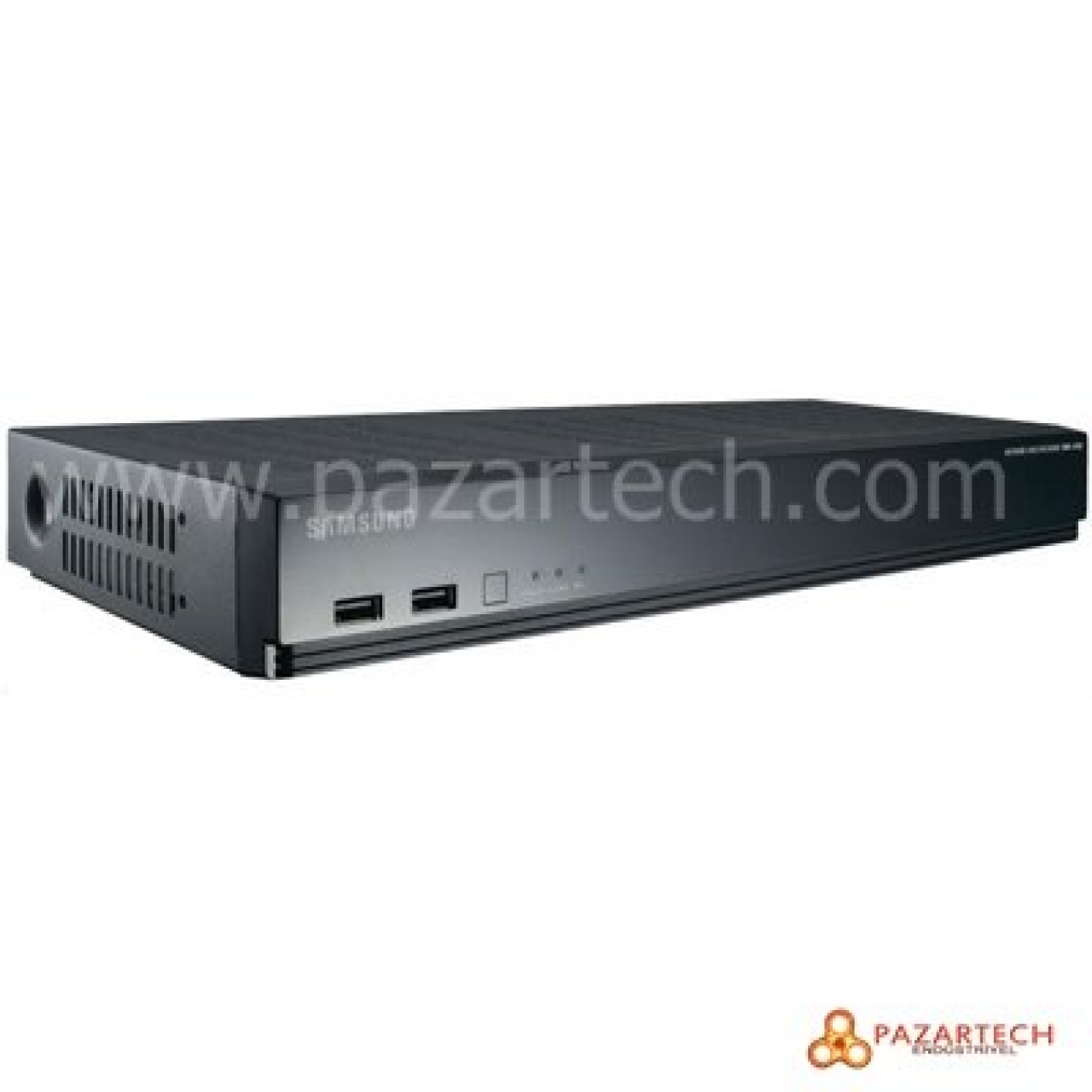

SAMSUNG SRN-473SP 4 Kanal PoE+,e-SATA Compact NVR
Video
Inputs Up to 4 channels
Resolution CIF to 5 MP
Protocols Samsung, ONVIF
Live View
Local Display HDMI / VGA
Multi-Screen Display Local Monitor: 1 / 4 / Auto sequence
Web: 1 / 4 / Auto sequence
Performance
Operating System Embedded Linux
Recording
Compression H.264, MJPEG
Bandwidth 32 Mb/s (2 MP 4-channel real-time recording)
Resolution CIF to 5 MP
Mode Normal, Scheduled, Event (Pre / Post)
Event Trigger 4 x Alarm input, Video loss, Camera event (Sensor, MD, Video analytics)
Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search & Playback
Bandwidth 32 Mb/s (4-channel, simultaneous)
Mode Date & time (calendar) / Event log list
Max Simultaneous Playback Local Monitor: Up to 4-channel
Web, CMS: Up to 4-channel
Resolution CIF to 5 MP
Playback Control Fast forward / backward, Move one step up / down
Storage
HDD Capacity Support 2 x Internal (Fixed), 1 built-in
Storage Capacity 8 TB maximum, 2 TB included
Backup
File Format USB: BU/Exe
Web, CMS: JPEG, AVI
Function Single channel play, Date-time/title display
Sensor
Input / Output 4 / 3 (NO/NC selectable)
Audio
Input 4-channel (Network)
Compression G.711, G.726
Audio Communication 2-way
Network
Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
DDNS Samsung iPOLiS DDNS
Bandwidth Minimum 32 Mb/s (transmission)
Max. Remote Users Search: 3
Live Unicast: 10
Live Multicast: 20
IP IPv4 / IPv6
Security IP address filtering, User access log, 802.1x authentication, Encryption
GUI/Setup Menu Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS Windows: XP SP2 and above, Vista, 7, 8,
Mac OS: OSX 10.7 and above
Web Browser Internet Explorer: Ver. 8 to 11
Firefox: Ver.19.x and above
Chrome: Ver.26.x and above
Safari: Ver.6.0.3 and above (OSX 10.6 and above)
Viewer SSM, Webviewer, SmartViewer
CMS Support: SDK / CGI
Setup and Configuration
Registration Register: PnP mode, Manual mode
Functions IP Address, Add Profile Edit, Bitrate, Compression, GOP, Quality, Video Setup (MD, VA, ABF, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter)
PTZ
Control Via GUI, Webviewer
Presets 255
Smartphone
OS Support Android, iOS
Control Live: 4
Playback: 1
System Control Via mouse, IR Remocon
Indicators
Front Panel Indicators 1 x Power status LED, 1 x HDD action LED, 1 x Alarm status LED, 1 x Record status LED, 1 x Network action LED, 1 x Back up LED

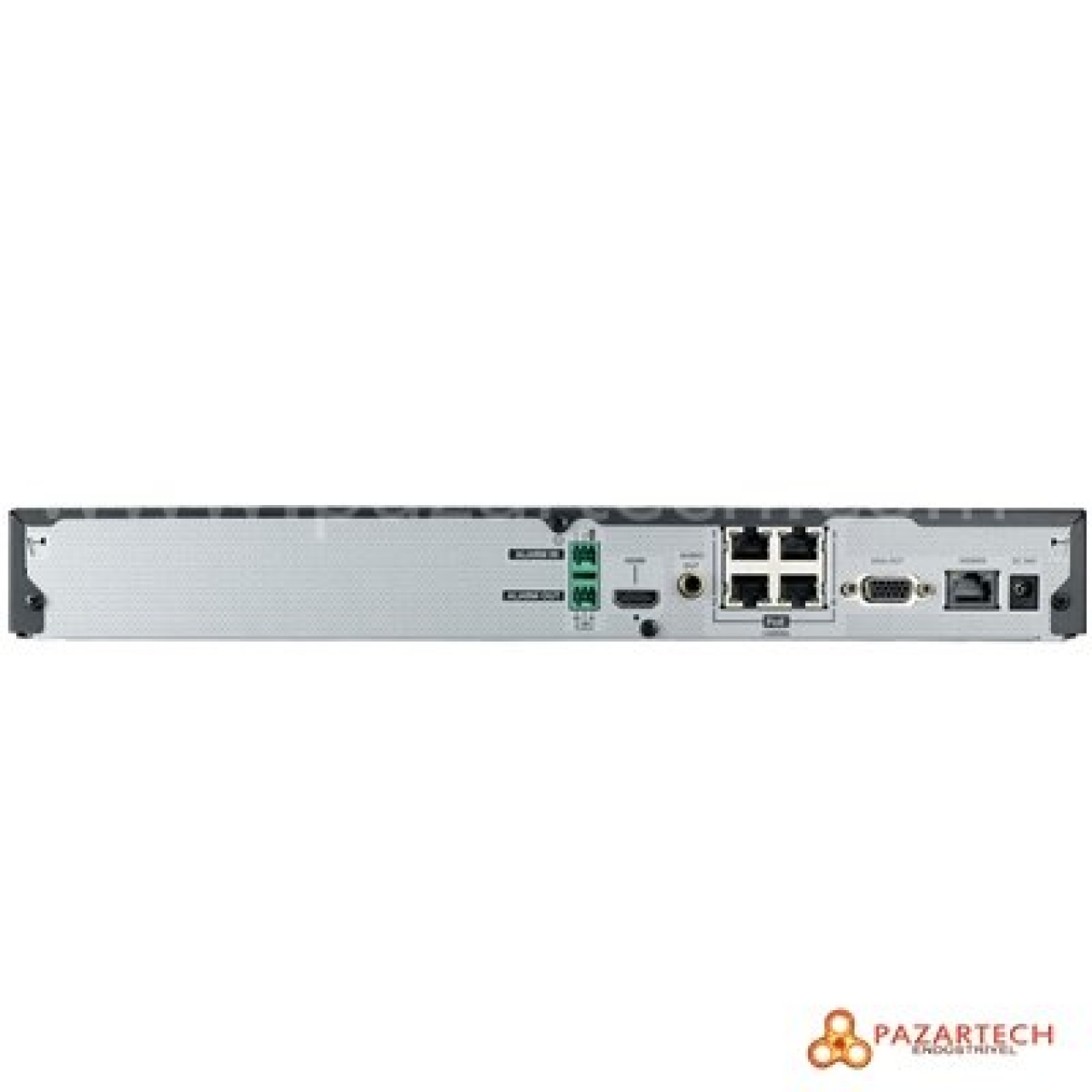

Interfaces / Ports
USB 2
Display 1 x HDMI / VGA
Audio Out 1 x RCA, line
Network 2 x Ethernet (100 Mb/s) + 4 x PoE (10/100 Mb/s)<
Alarm I/O 1 x Alarm in (terminal block)
3 x Alarm out (terminal block)
Power 1 x AC inlet
System
Log Entries System Log: Maximum 20,000
Event Log: Maximum 20,000
Electrical
Input Voltage/Current 100 to 240 VAC / 3.5 A, 50/60 Hz
Power Consumption Maximum 30 W (with 1 x 1 TB HDD)
Camera Power Output: 15.4 W per channel, Total: 61.6 W (PoE, IEEE 802.3af)
Environmental
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 20 to 85% RH
Certifications and Approvals
Safety UL, KC
EMC CE, FCC, KCC, CCC, Gost-R
Mechanical
Material Metal
Dimensions (W x H x D) 14.6 x 1.7 x 12.6" (37.0 x 4.4 x 32.0 cm) (1U) excluding feet
14.6 x 2.0 x 12.6" (37.0 x 5.1 x 32.0 cm) (1U) including feet
Weight 6.02 lb (2.73 kg) without HDD
Packaging Info
Package Weight 11.8 lb
Box Dimensions (LxWxH) 20.8 x 16.8 x 6.8"
