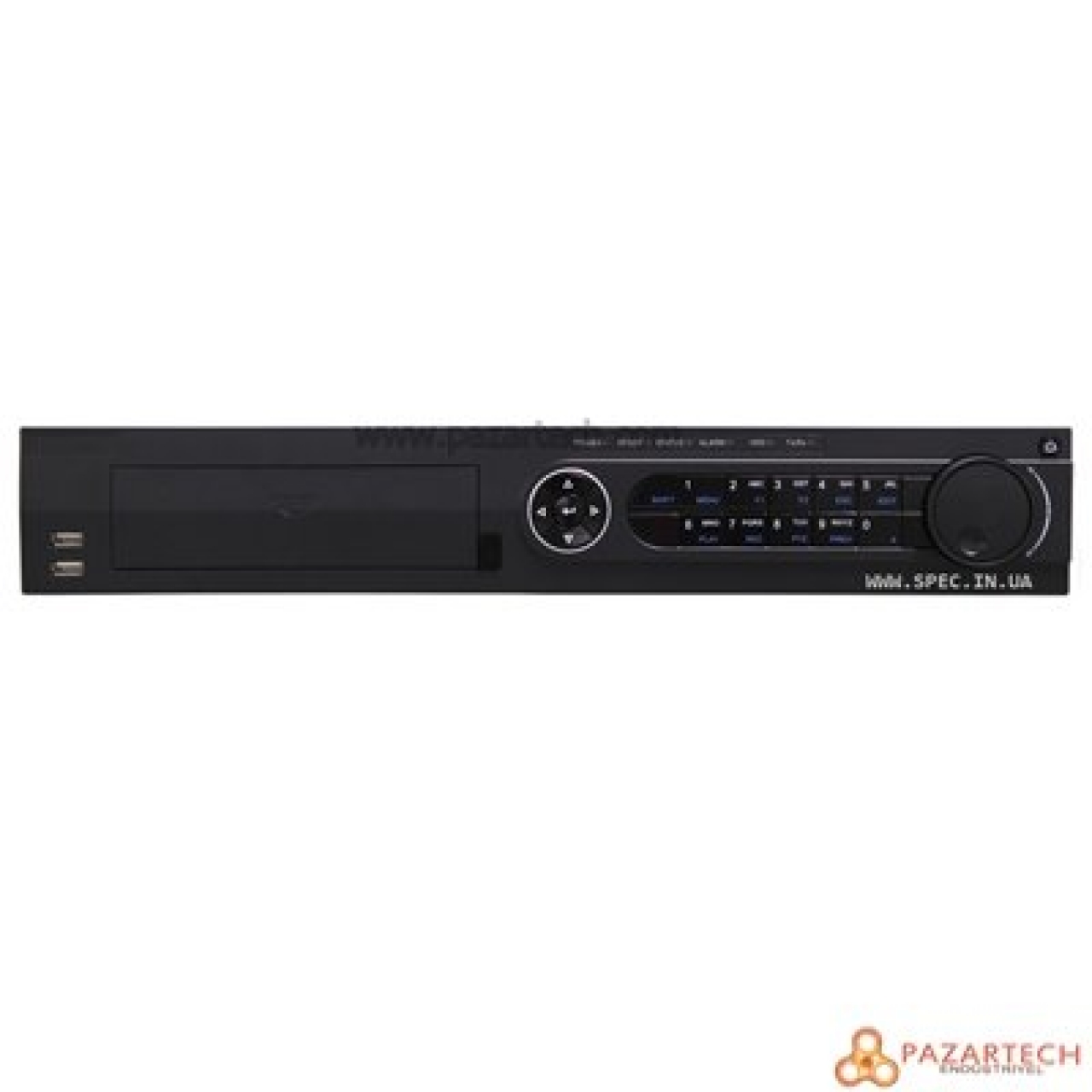

HAIKON DS-7716NI-ST 16 Kanal NVR Kayıt Cihazı

* 40/80Mbps Bit Rate Input Max (up to 16/32-ch IP video)

* Third-party network cameras supported

* Up to 5 Megapixels resolution recording

* HDMI and VGA output at up to 1920x1080 resolution

* 4 SATA, 3USB 2.0

Video/Audio Input

IP Video Input:16-ch

Two-way Audio:1-ch BNC(2.0Vp-p, 1kΩ)

Video/Audio Output

VGA Output:1-ch, resolution:

1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

CVBS Output:1-ch, BNC (1.0 Vp-p, 75 Ω)

Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)

HDMI Output:1-ch, resolution:

1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720

/60Hz, 1024 × 768 /60Hz

Recording resolution:5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Audio Output:2-ch BNC(Linear electrical level, 600Ω)

Playback Resolution:5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

Synchronous Playback:16-ch

Hard Disk Driver

Interface Type:4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs

Capacity:Up to 4TB capacity for each disk

e-SATA Interface:1 eSATA interface

External Interface

Network Interface:1 RJ45 10M/100M/1000M adaptive Ethernet Interface

USB Interface:3 USB2.0 interfaces

Serial Interface:1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface

Alarm Input:16-ch

Alarm Output:4-ch

General

Power Supply:100~240VAC, 6.3A, 50~60Hz

Consumption:≤ 40 W (without hard disk or DVD-R/W)

Working Temperature:-10 °C ~ +55 °C

Working Humidity:10%~90%

Chassis:19-ich rack-mounted 1.5U chassis

Dimensions:440 × 390 × 70 mm(W x D x H)

Weight:≤ 4 Kg ( without hard disk or DVD-R/W )
