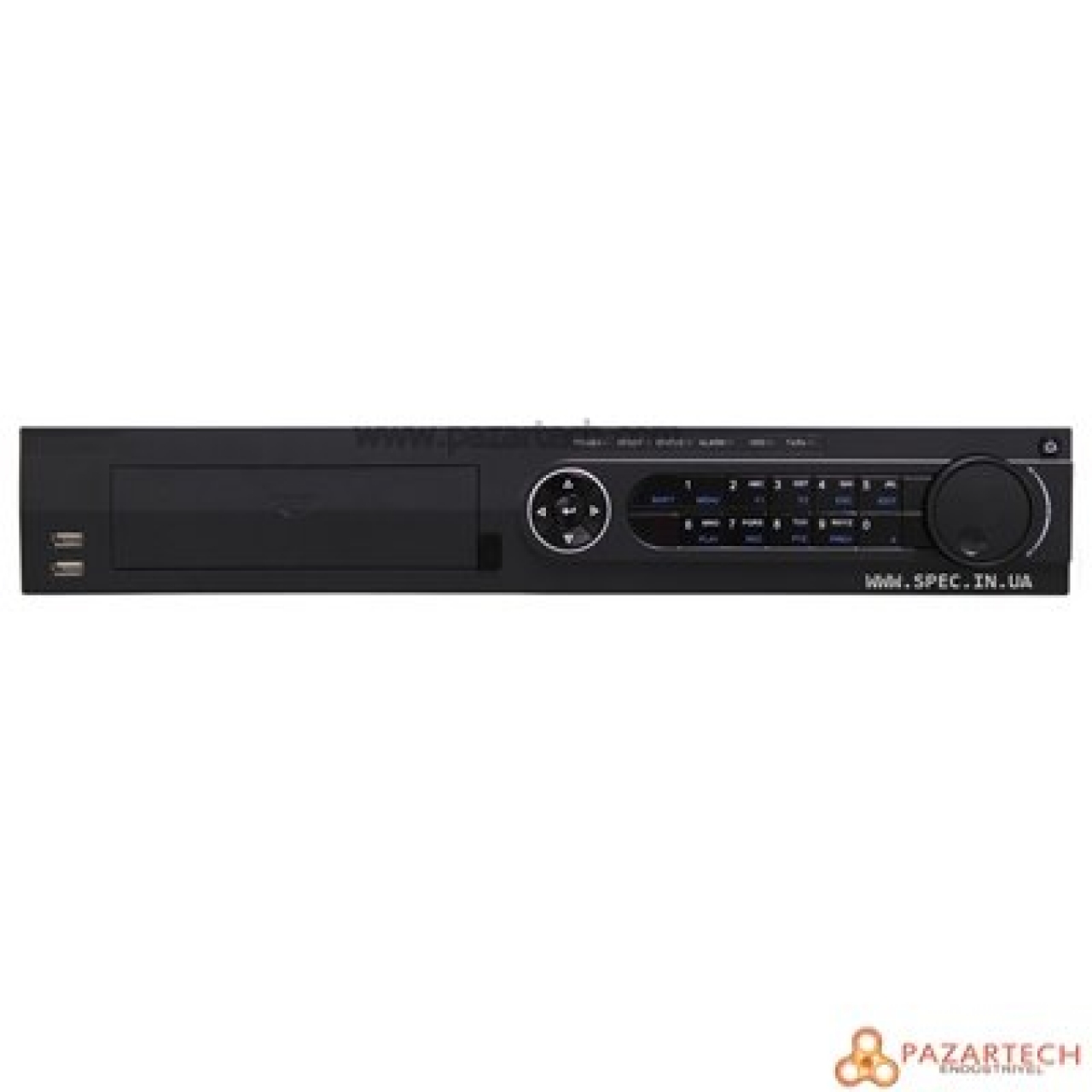

HAIKON DS-7616NI-SE/P 16 Kanal NVR, 8 Port POE, 2 SATA, HDMI

Video/Audio Input

IP Video Input: 16-ch

Two-way Audio: 1-ch RCA(2.0Vp-p, 1k?)

Video/Audio Output

VGA Output: 1-ch, resolution:

1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

HDMI Output: 1-ch, resolution:

1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720

/60Hz, 1024 × 768 /60Hz

Recording resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Audio Output: 1-ch RCA(Linear, 1k?)

Playback Resolution: 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF

Synchronous Playback: 8-ch

Hard Disk Driver

Interface Type: 2 SATA Interfaces

Capacity: Up to 4TB capacity for each disk

External Interface

Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface,

8 independent 100Mbps PoE Ethernet interfaces

USB Interface: 2 USB 2.0 Interfaces

Serial Interface: 1 RS-485 interface (Reserved)

General

Power Supply: 100~240VAC, 47~63Hz, 3A

Consumption: ? 15 W (without hard disk)

Working Temperature: -10 °C ~ +55 °C

Working Humidity: 10%~90%

Chassis: 19-inch rack-mounted 1U chassis

Dimensions: 445 × 290 × 45mm (W x D x H)

Weight: 2 Kg (without hard disk)
