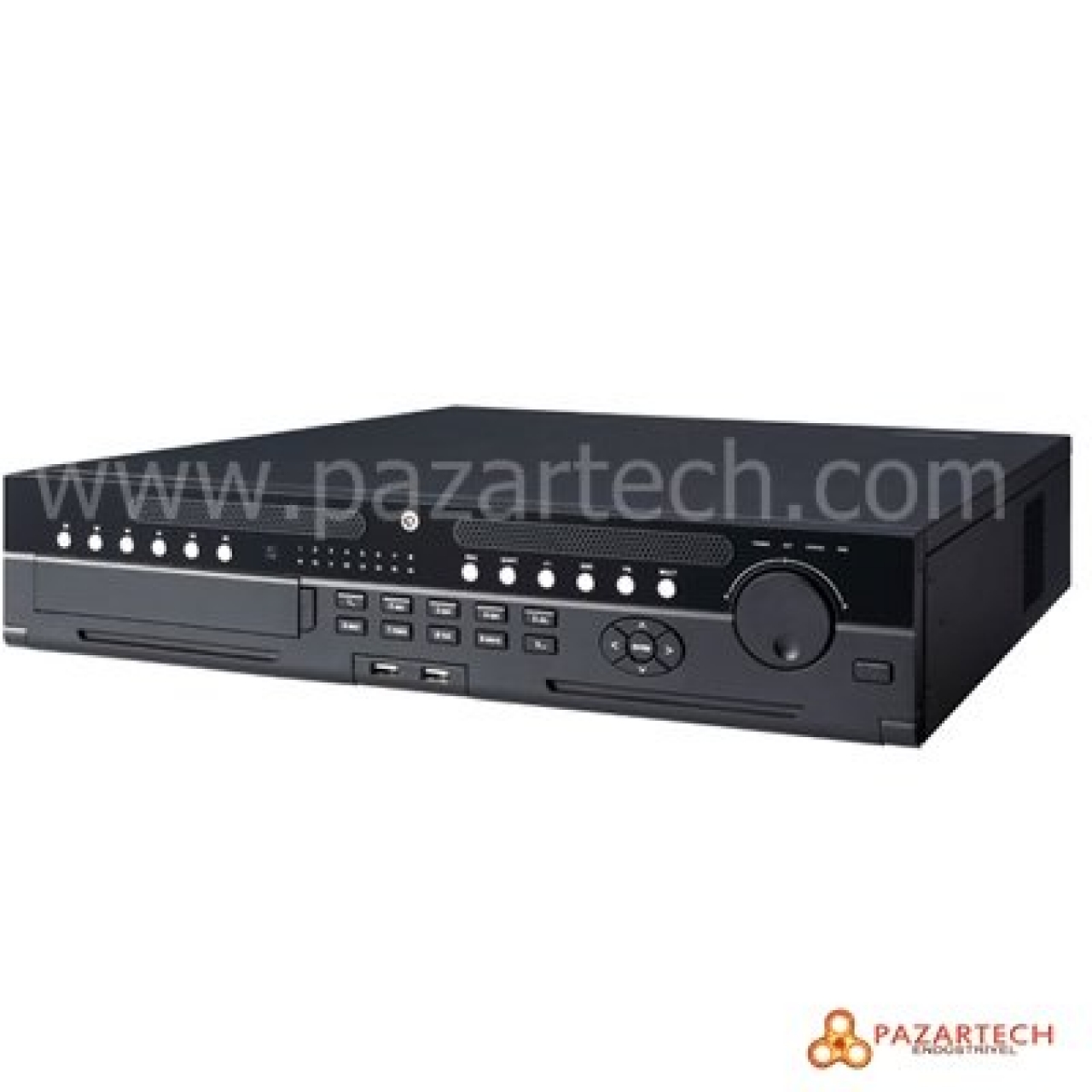

DAHUA NVR608-64-4K 64 Kanal 8XHDD 4K NVR

> Max 64 channel IP cameras connection

> Max 384Mbps incoming bandwidth

> Up to 12Mp resolution preview& playback

> 1 VGA+2 HDMI

> Support 8 hot-swap HDDs

> Support RAID 0/1/5/6/10/50/60

> Support N+M hot standby

> Support iSCSI to expand storage space

> Compatible with Dahua SDK and seamless integrated to other platforms

> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

> ONVIF Version 2.4 conformance

> Redundant power supply module adopted (DH-NVR608R-64-4K)

System

Main Processor Intel Processors

Operating System LINUX

Video& Audio

IP Camera Input 64 channel

Two-way Talk 1channel Input, 1channel Output, RCA

Display

Interface 2 HDMI (up to 3840×2160), 1 VGA

Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display The 1st screen: 1/4/8/9/16/25/36

The 2nd screen: 1/4/8/9/16

OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Compression H.264/MJPEG

Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.

Record Rate 256Mbps

Bit Rate 1~ 20Mbps

Record Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop

Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips

Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

Alarm Input 16ch, low level effective, green terminal interface

Relay Output 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

Playback & Backup

Playback 128Mbps in Raid 5 mode

64Mbps in single HDD mode

Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search

Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode USB Device/Network/Internal SATA burner/eSATA Device

Network

Interface 2 RJ-45 ports (10/100/1000Mbps)

Ethernet Port 2 Ethernet ports joint working or 2 independent 1000Mbps Ethernet ports

Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)

Max. User Access 128 users

Smart Phone iPhone, iPad, Android, Windows Phone

Storage

Internal HDD 8 SATA III ports, up to 48TB

HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)

Auxiliary Interface

USB 4 USB ports(3 USB2.0, 1 USB3.0)

eSATA 1 eSATA port

RS232 1 port, For PC communication& keyboard

RS485 1 port, For PTZ control

General

Power Supply AC110V~240V, 50~60Hz AC100V~240V, 50~60Hz, Redundant

Power Consumption <40W (Without HDD)

Working Environment -10°C~+55°C/10%~90%RH/86~106kpa

Dimension(W×D×H) 486mm(with ears)×454.9mm ×91mm 486mm(with ears)×471.8mm ×91mm

Weight 9kg (without HDD)

Installation 19” Rack-mounted
