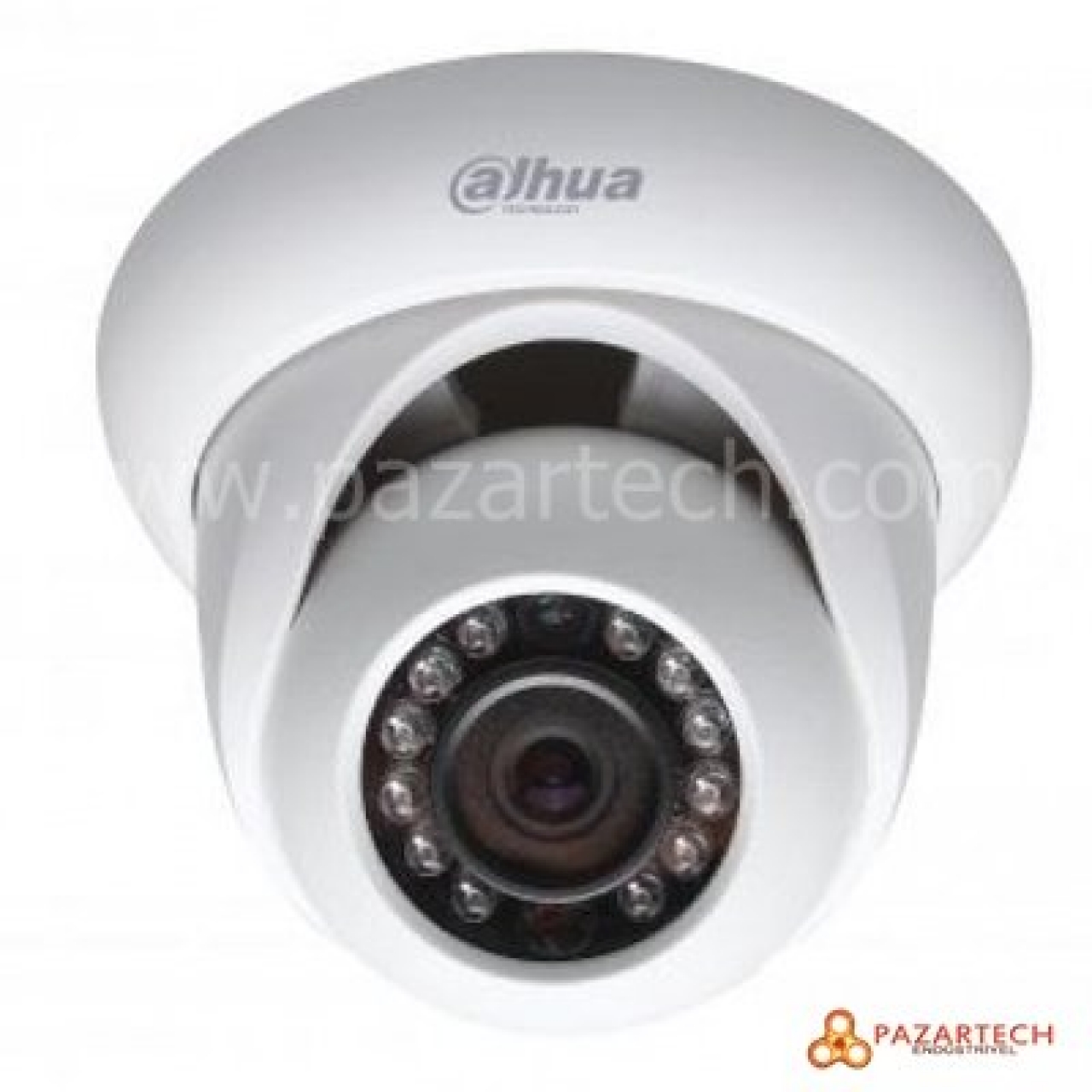

DAHUA IPC-HDW1200S 2 MP 3.6mm,Poe HD IR Mini Dome Kamera

1/3” 2 MP CMOS, 3.6Mm sabit lens, H.264&MJPEG dual

codec, Max. 25/30fps@1080P, Day/Night(ICR),

2DNR,AWB,AGC,BLC, 20 m IR mesafesi, IP66, DC12V, Poe

>1/3” 3Megapixel progressive scan CMOS

>H.264 & MJPEG dual-stream encoding

>Max 25/30fps@1080P(1920 x1080)/720P(1280 x720)

>Day/Night(ICR), 2DNR, AWB, AGC, BLC

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

>3.6mm fixed lens (6mm optional)

>Max. IR LEDs Length 20m

>IP66, DC12V, PoE

Kamera

Image Sensor 1/3” 3Megapixel progressive scan CMOS

Effective Pixels 2048(H)x1536(V)

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000

Min. Illumination Color: 0. 1Lux/F1.6 ,0Lux (IR on)

S/N Ratio More than 50dB

Video Output N/A

Camera Features

Max. IR LEDs Length 20m

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC/ HLC

White Balance Auto/Manual

Gain Control Auto/Manual

Noise Reduction 2D

Privacy Masking Up to 4 areas

Lens

Focal Length 3.6mm (6mm optional)

Max Aperture F1.6

Focus Control Manual

Angle of View H:71.9°(45°)

Lens Type Fixed lens

Mount Type Board-in Type

Video

Compression H.264 / MJPEG

Resolution 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240)

Frame Rate Main Stream 1080P/720P(1 ~ 25/30fps)

Sub Stream D1/CIF(1 ~ 25/30fps)

Bit Rate H.264: 16K ~ 8192Kbps

Audio

Compression N/A

Interface N/A

Network

Ethernet RJ-45 (10/100Base-T)

Wi-Fi N/A

Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

ONVIF ONVIF Profile S

Max. User Access 10 users

Smart Phone iPhone, iPad, Android, Windows Phone

Auxiliary Interface

Memory Slot N/A

RS485 N/A

Alarm N/A

PIR Sensor Range N/A

General

Power Supply DC12V, PoE (802.3af)

Power Consumption <4.8W

Working Environment -20°C~+60°C, Less than 95%RH

Ingress Protection IP66

Vandal Resistance N/A

Dimensions Φ108mm x 86mm

Weight 0.36Kg
